Installation Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, 2003 Chevrolet TrailBlazer, and 2002 Oldsmobile Bravada. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the blower motor resistor (1).
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the blower motor resistor mounting screws (2).

    Tighten

    Tighten the screws to 1.9 N.m (17 lb in).

  3. Connect the blower motor resistor electrical connector (3).
  4. Install the right closeout/insulator panel. Refer to CLOSEOUT/INSULATOR PANEL REPLACEMENT - RIGHT in Interior Trim.

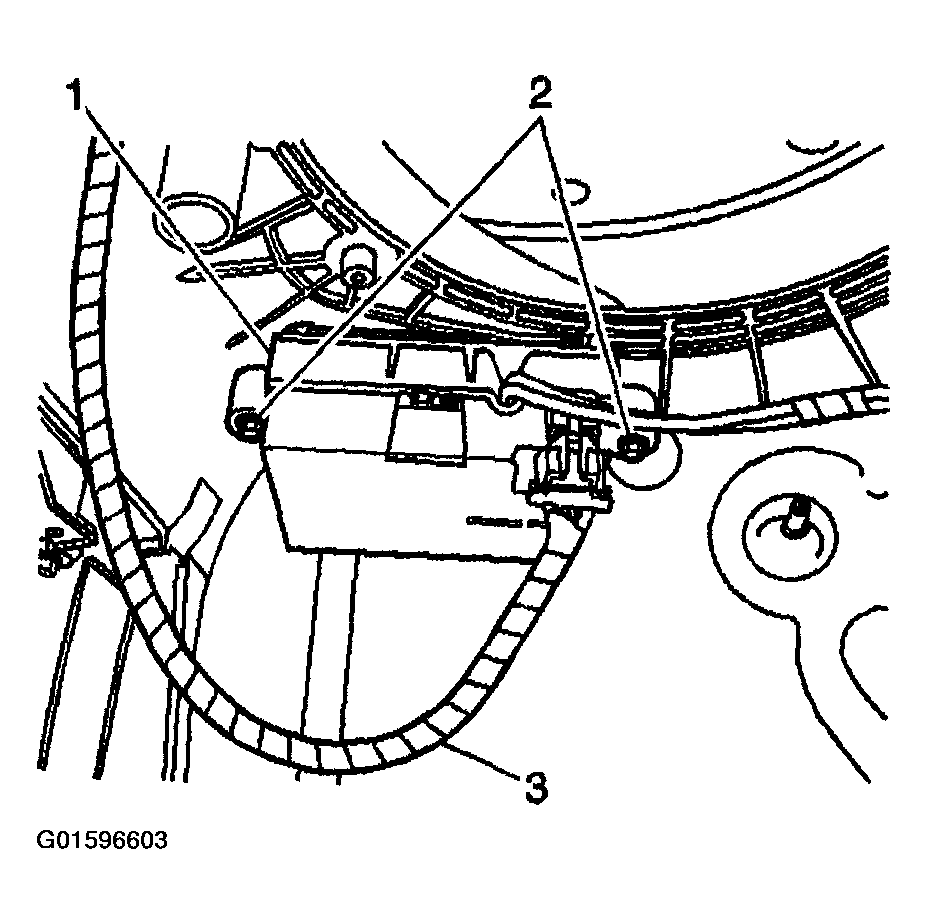

    Fig 1: Installing Blower Motor Resistor
    G01596603Courtesy of GENERAL MOTORS CORP.
