Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, 2003 Chevrolet TrailBlazer, and 2002 Oldsmobile Bravada. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the cover of the under hood fuse block.
  2. Remove the blower motor relay (1) from the under hood fuse block (2).

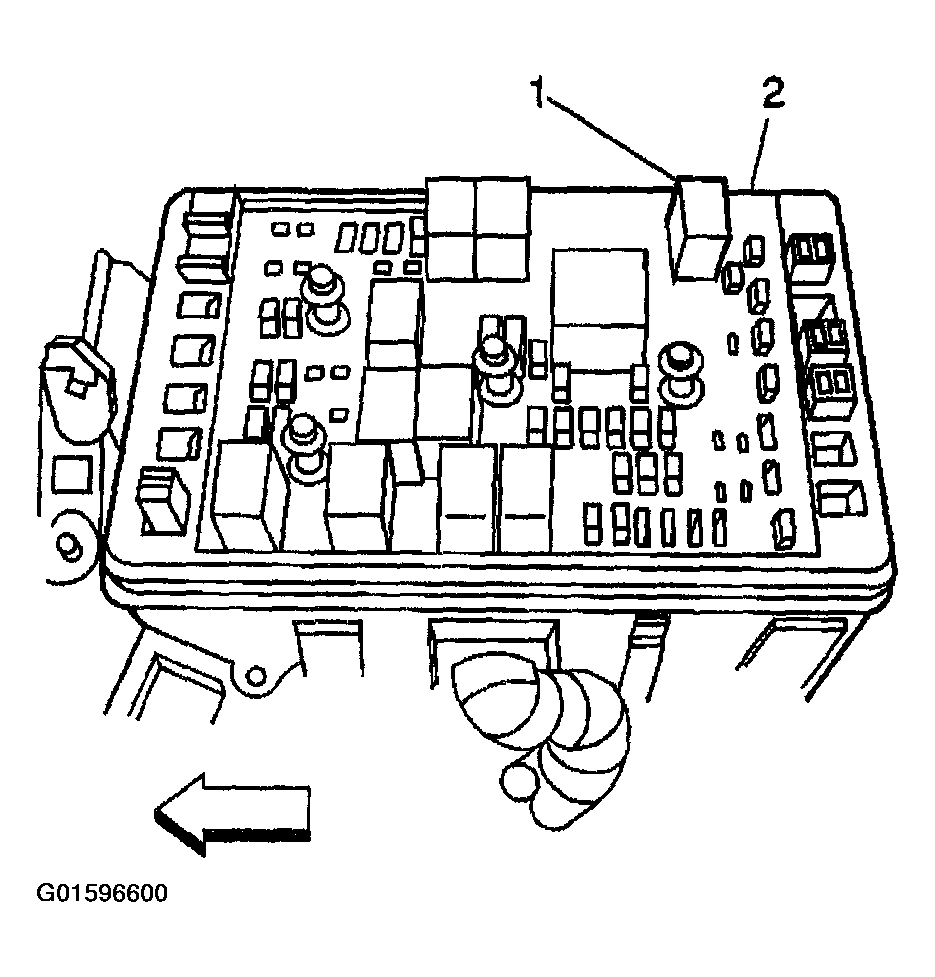

    Fig 1: Removing Blower Motor Relay From Under Hood Fuse Block
    G01596600Courtesy of GENERAL MOTORS CORP.
