Installation Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, 2003 Chevrolet TrailBlazer, and 2002 Oldsmobile Bravada. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the blower motor relay (1) to the under hood fuse block.
  2. Install the cover of the under hood fuse block.

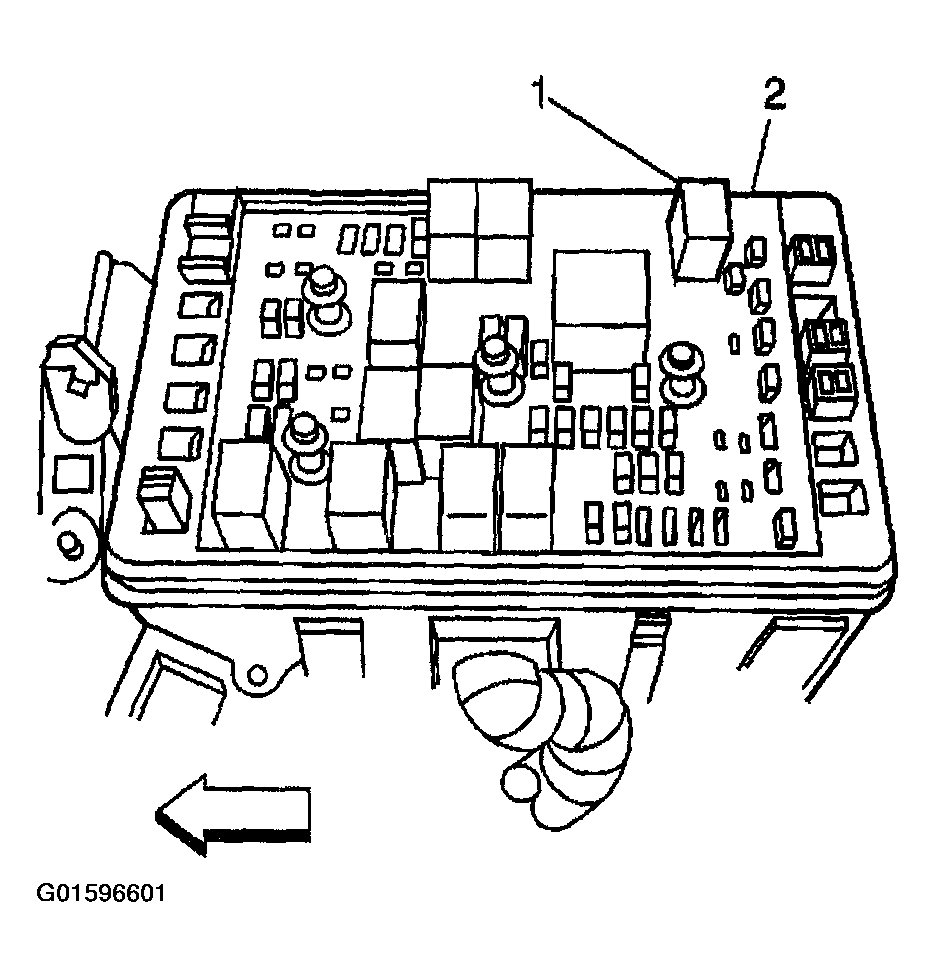

    Fig 1: Installing Blower Motor Relay To Under Hood Fuse Block
    G01596601Courtesy of GENERAL MOTORS CORP.
