Installation Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, 2003 Chevrolet TrailBlazer, and 2002 Oldsmobile Bravada. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the air outlet duct-rear (3) to the console support bracket (1).

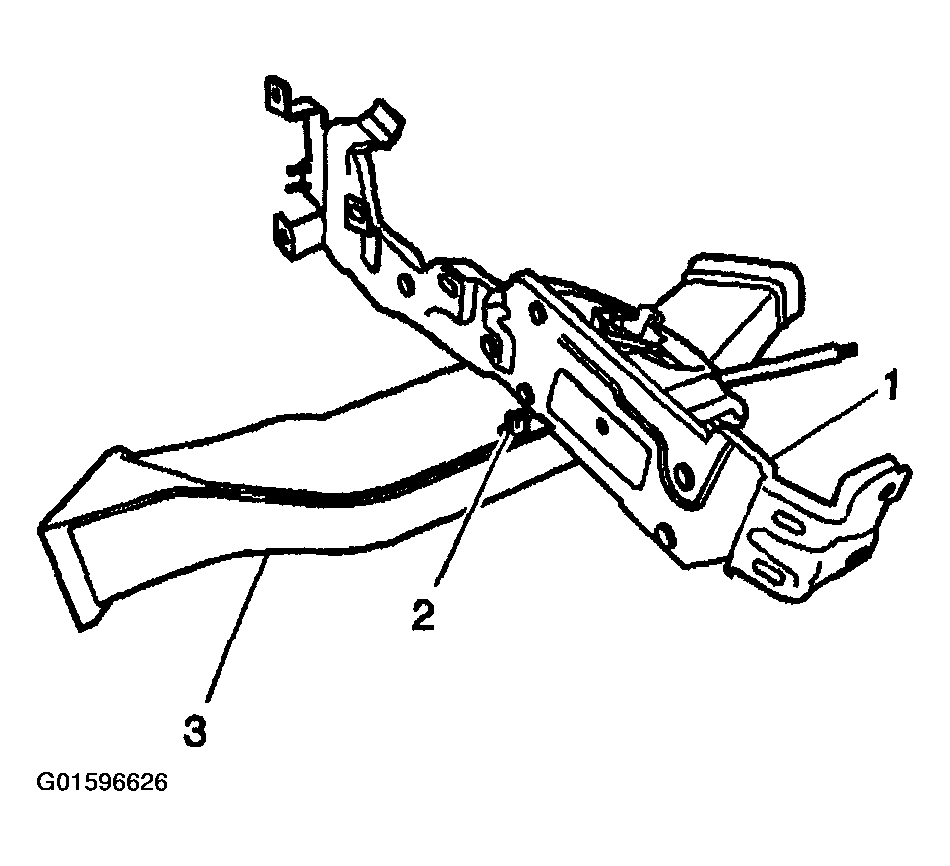

    Fig 1: Installing Air Outlet Duct-Rear To Console Support Bracket
    G01596626Courtesy of GENERAL MOTORS CORP.
  2. Install the push pin (1).
  3. Install the console support bracket. Refer to BRACKET REPLACEMENT - CONSOLE FLOOR in Instrument Panel, Gages and Console.

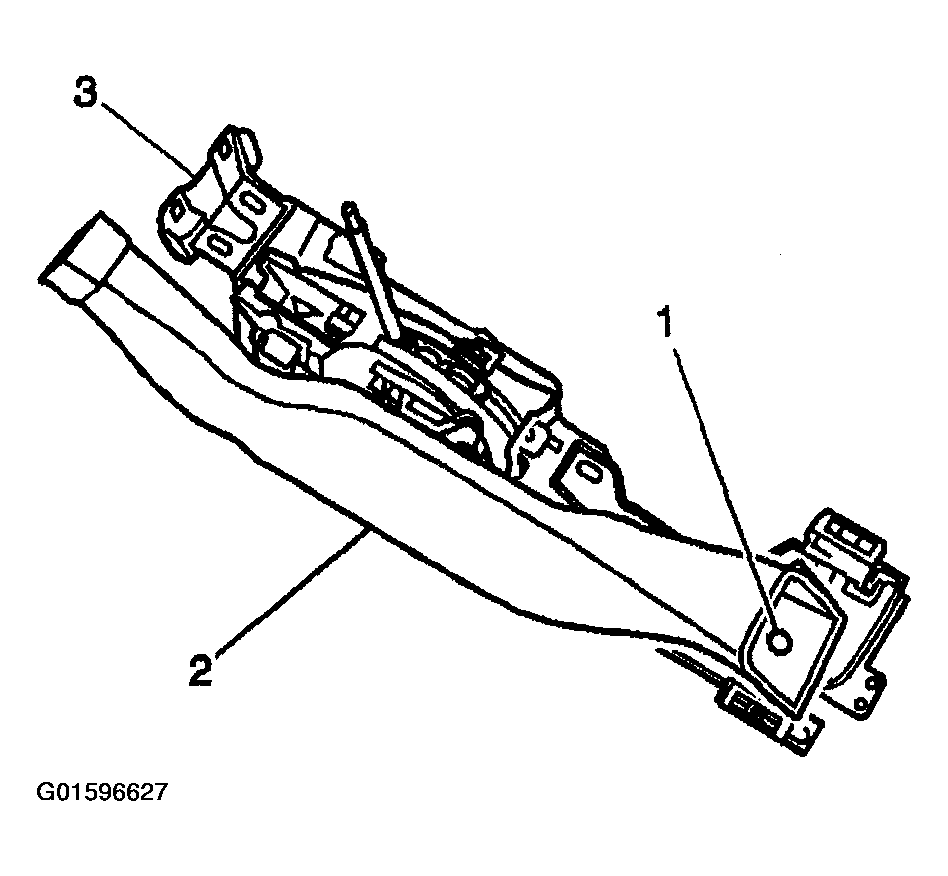

    Fig 2: Installing Push Pin
    G01596627Courtesy of GENERAL MOTORS CORP.
