Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, 2003 Chevrolet TrailBlazer, and 2002 Oldsmobile Bravada. However, it is still accessible from the selected car via links, so may be relevant.
  1. Using a flat-bladed tool, release the left housing retaining pin and gently push the left side of the air outlet into the housing assembly.

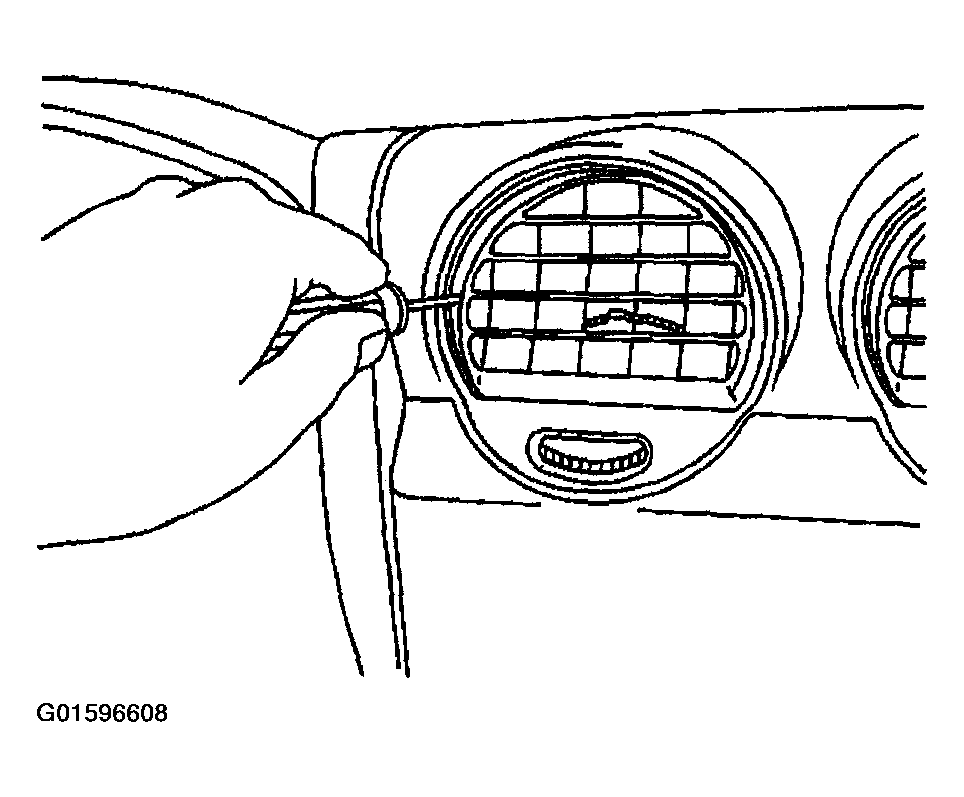

    Fig 1: Pushing Left Side Of Air Outlet Into Housing Assembly
    G01596608Courtesy of GENERAL MOTORS CORP.
  2. With the air outlet in the housing assembly, rotate the air outlet face down.
  3. Using a flat bladed tool, remove the left side of the air outlet from the housing assembly.

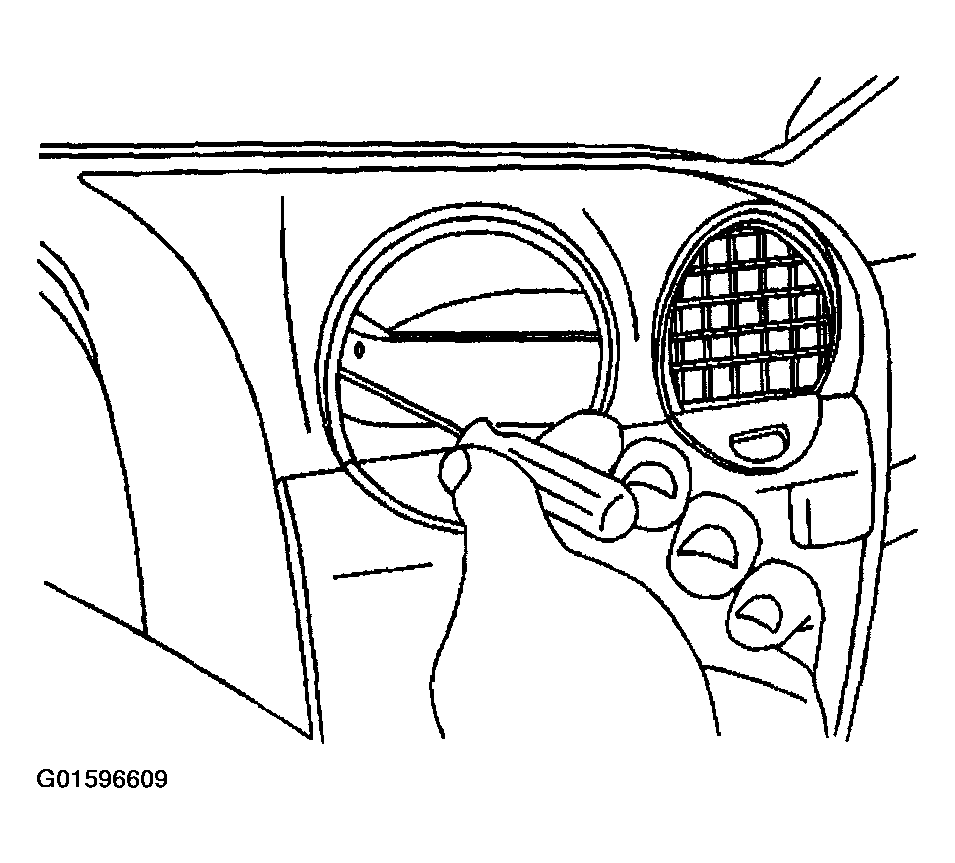

    Fig 2: Removing Left Side Of Air Outlet From Housing Assembly
    G01596609Courtesy of GENERAL MOTORS CORP.
  4. Remove the air outlet from the housing assembly.

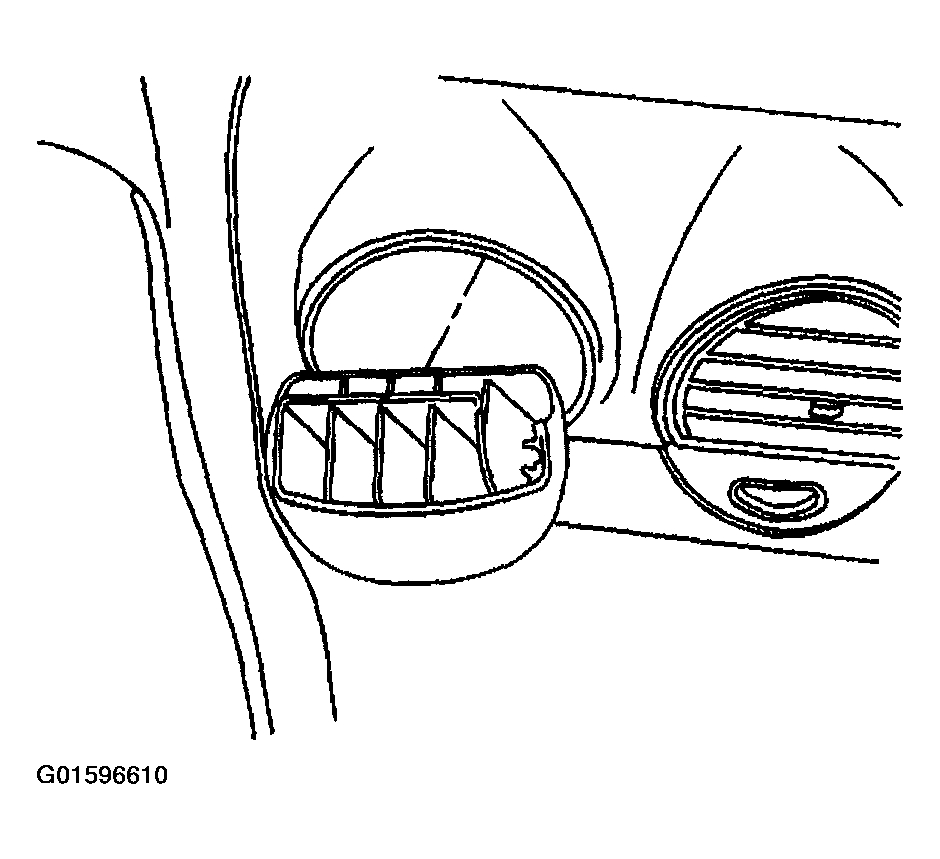

    Fig 3: Removing Air Outlet From Housing Assembly
    G01596610Courtesy of GENERAL MOTORS CORP.
