Installation Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, 2003 Chevrolet TrailBlazer, and 2002 Oldsmobile Bravada. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the air outlet face down at the housing opening.
  2. Position the right side of the air outlet below the housing retaining pin.
  3. Seat the right side of the air outlet to the housing retaining pin by lifting upward.

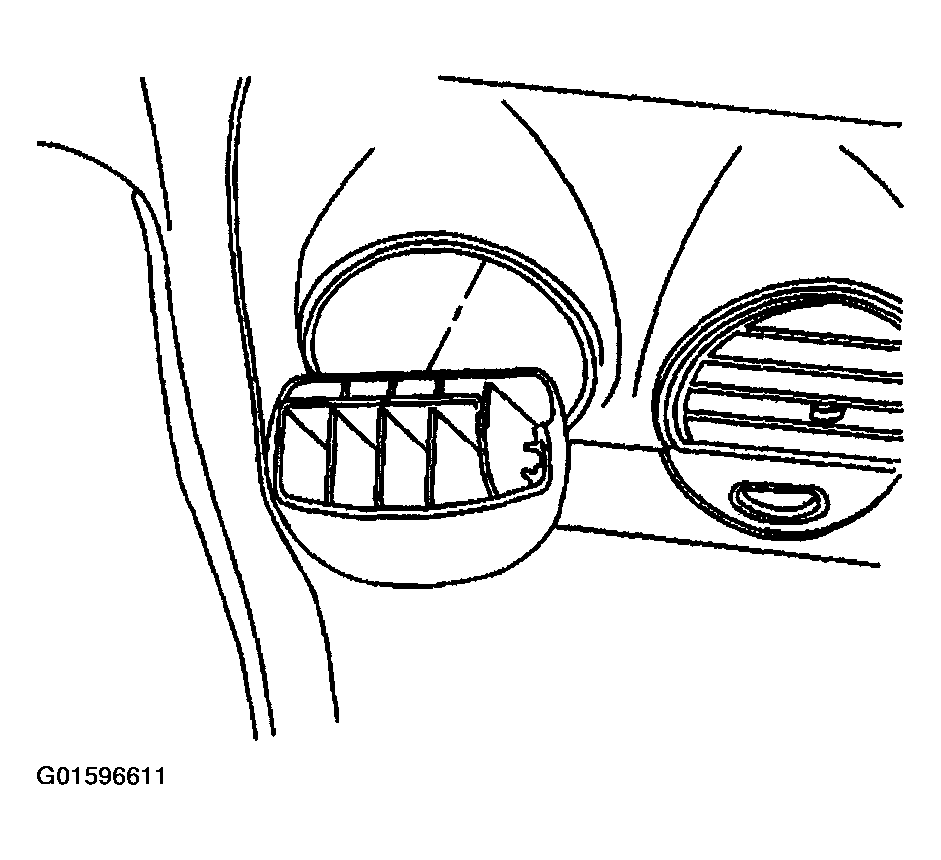

    Fig 1: Positioning Air Outlet Face Down At Housing Opening
    G01596611Courtesy of GENERAL MOTORS CORP.
  4. Seat the left side of the air outlet to the housing retaining pin.
  5. Rotate the air outlet upward past the detent position.
  6. Adjust the air outlet to the original position.

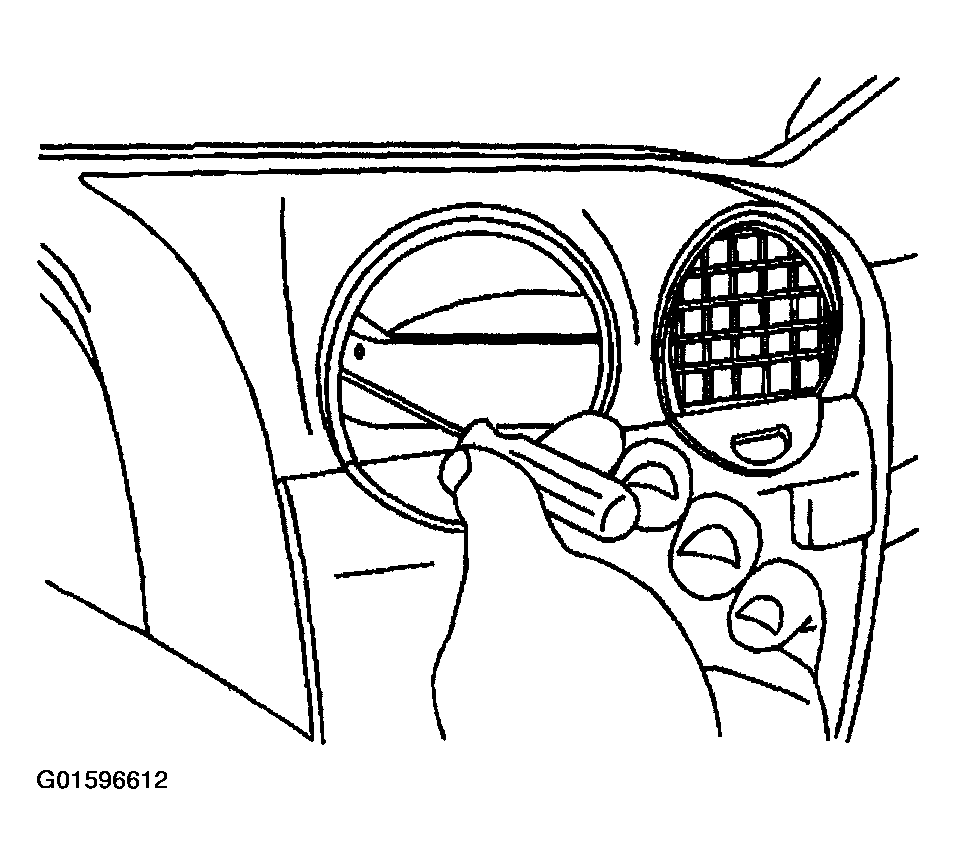

    Fig 2: Seating Left Side Of Air Outlet To Housing Retaining Pin
    G01596612Courtesy of GENERAL MOTORS CORP.
