Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, 2003 Chevrolet TrailBlazer, and 2002 Oldsmobile Bravada. However, it is still accessible from the selected car via links, so may be relevant.

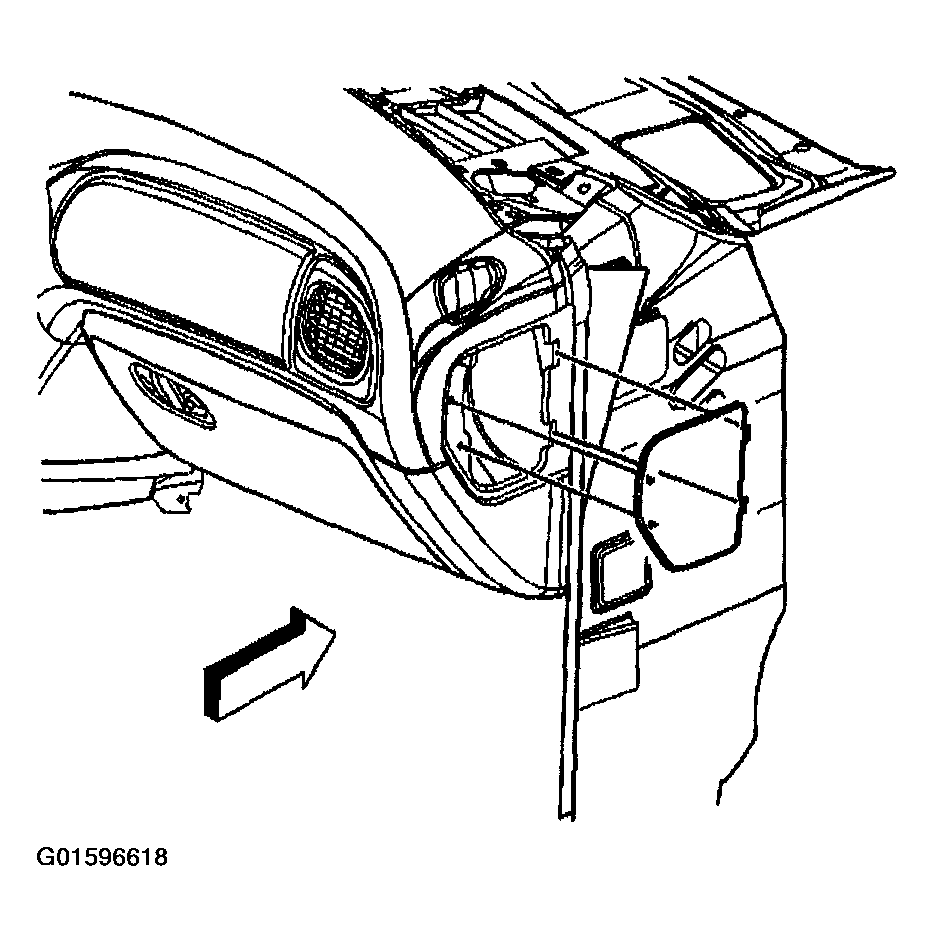

  1. Remove the right instrument panel (IP) access cover.
    Fig 1: Removing Right Instrument Panel Access Cover
    G01596618Courtesy of GENERAL MOTORS CORP.

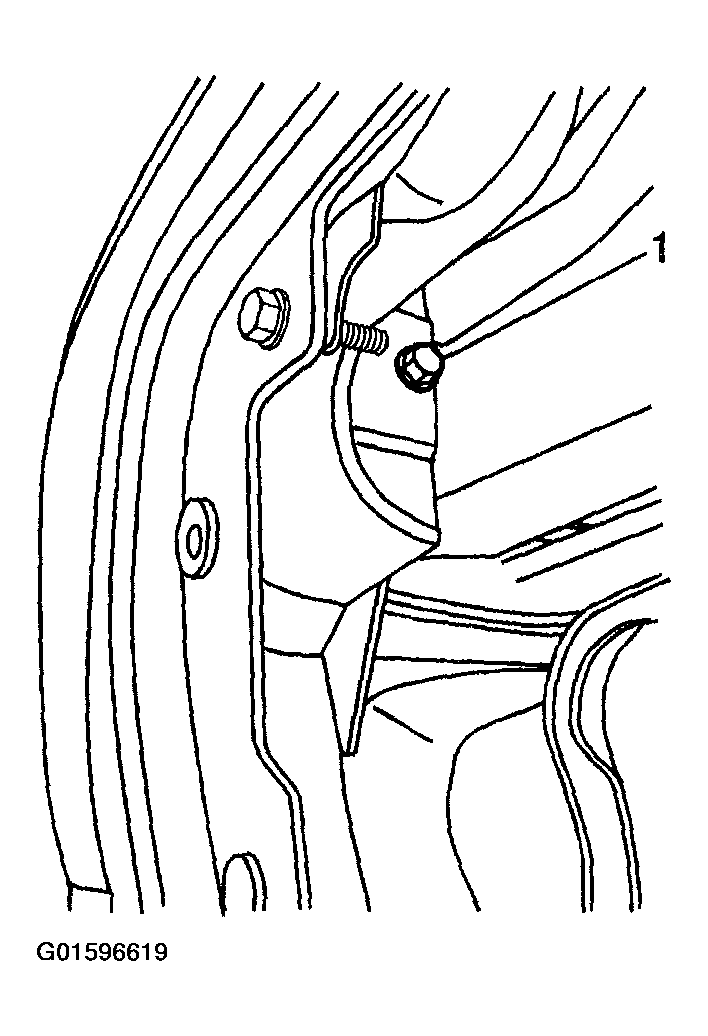

  2. Remove the screw (1) retaining the air outlet assembly to the IP.
    Fig 2: Removing Screw Retaining Air Outlet Assembly To IP
    G01596619Courtesy of GENERAL MOTORS CORP.

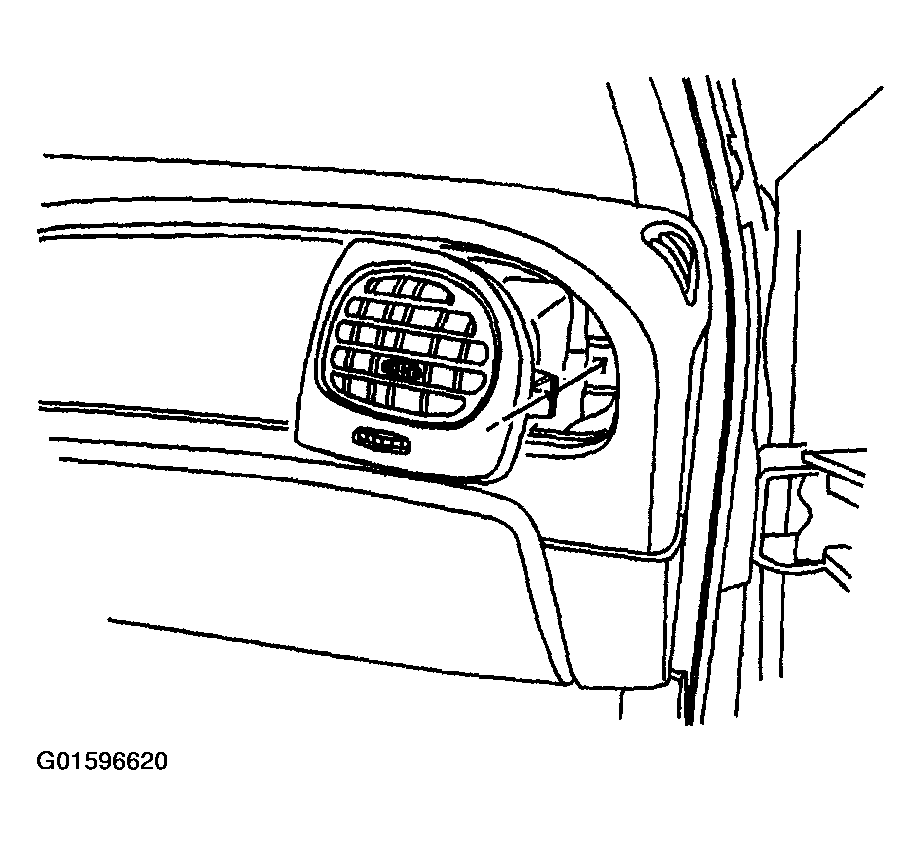

  3. Grasp and pull the outlet assembly rearward from the I/P.
  4. Remove the outlet assembly from the vehicle.
    Fig 3: Removing Outlet Assembly From Vehicle
    G01596620Courtesy of GENERAL MOTORS CORP.
