Installation Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, 2003 Chevrolet TrailBlazer, and 2002 Oldsmobile Bravada. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the outlet assembly to the IP.
    Fig 1: Installing Outlet Assembly To IP
    G01596621Courtesy of GENERAL MOTORS CORP.
  2. Install the retaining screw.

    Tighten

    Tighten the screw to 2.5 N.m (22 lb in).

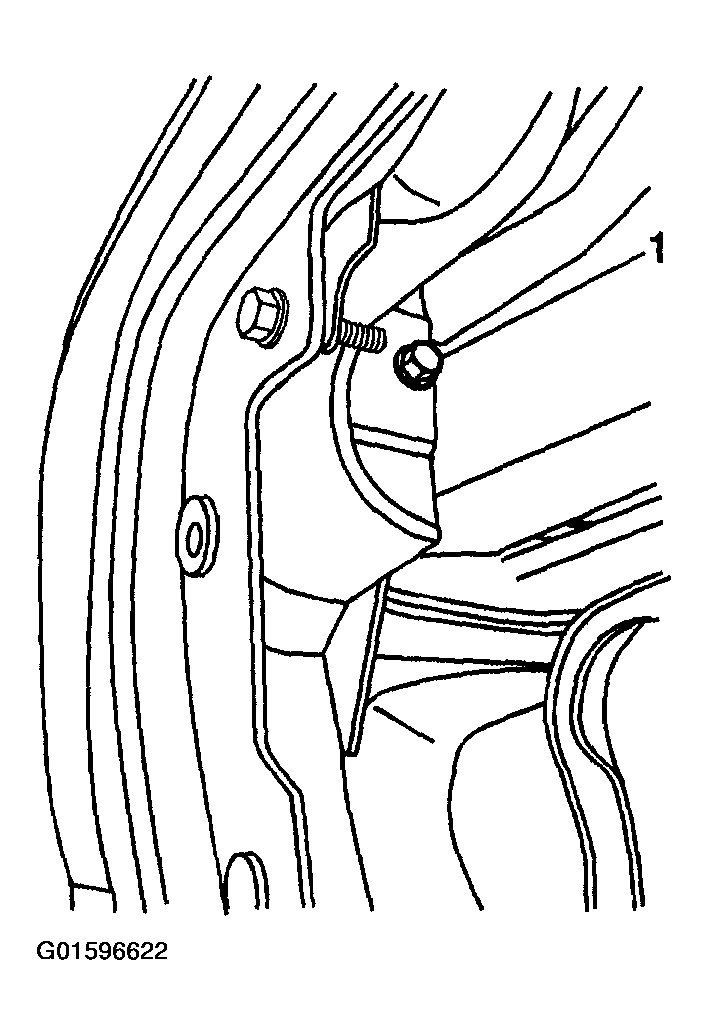

    Fig 2: Installing Retaining Screw
    G01596622Courtesy of GENERAL MOTORS CORP.
  3. Install the IP access cover.

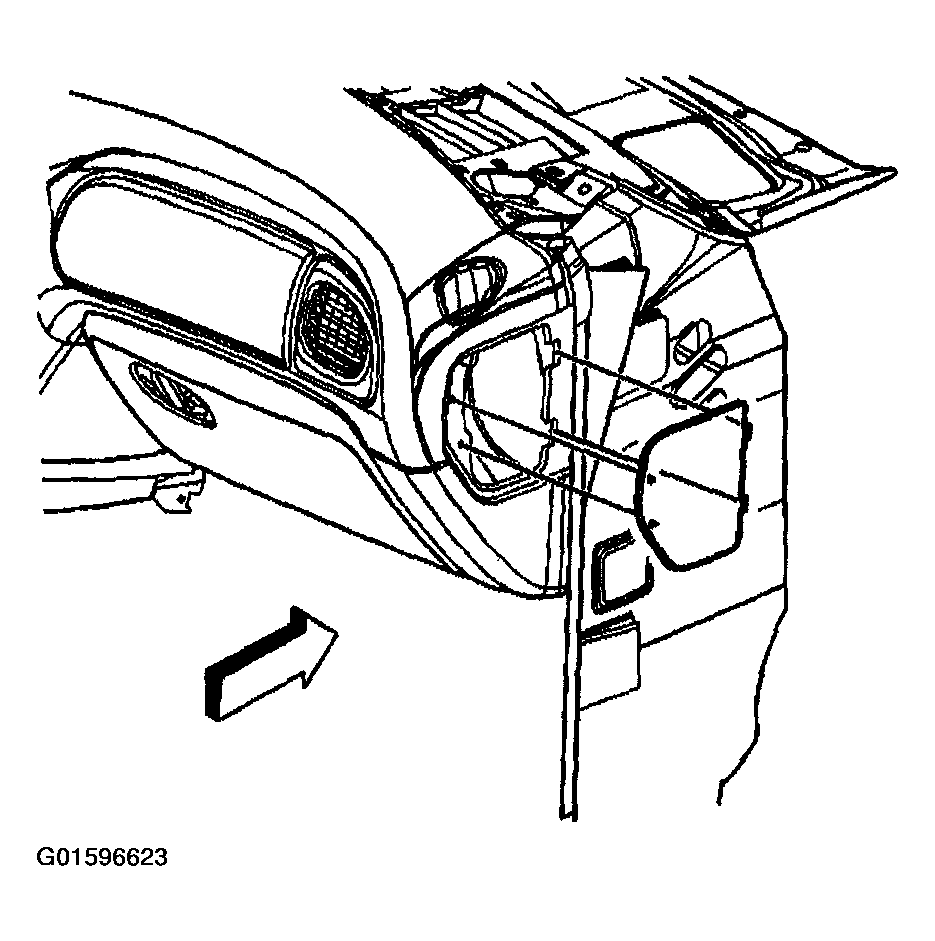

    Fig 3: Installing IP Access Cover
    G01596623Courtesy of GENERAL MOTORS CORP.
