Installation Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, 2003 Chevrolet TrailBlazer, and 2002 Oldsmobile Bravada. However, it is still accessible from the selected car via links, so may be relevant.
  1. If reinstalling the original outlet, install the air deflectors in the outlet. Refer to AIR OUTLET REPLACEMENT - INSTRUMENT PANEL .
  2. Install the outlet assembly to the I/P.

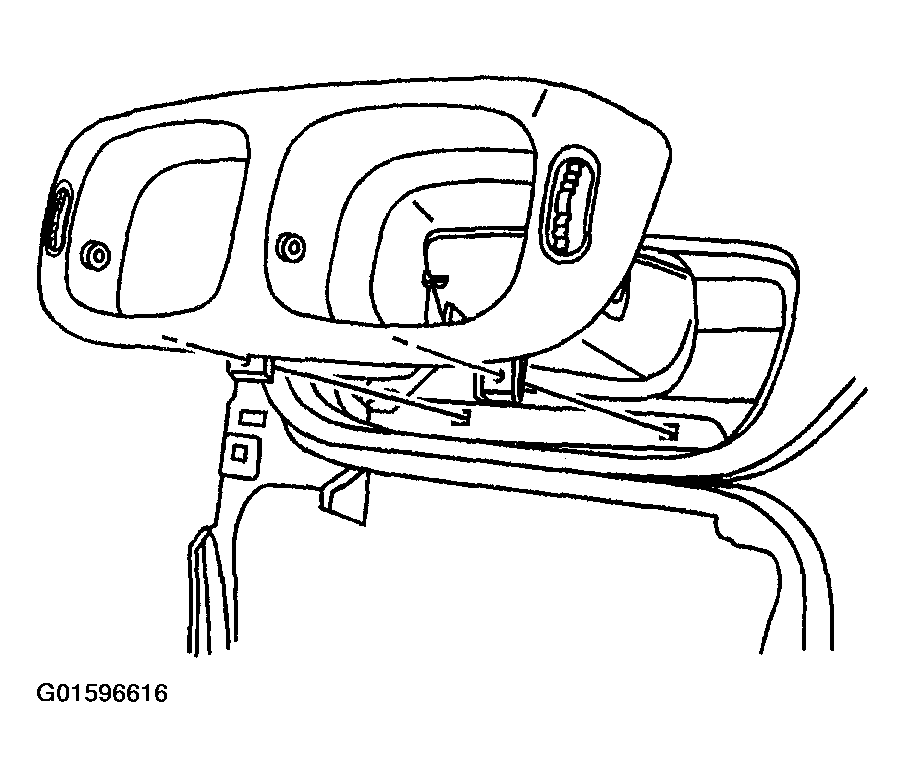

    Fig 1: Installing Outlet Assembly To I/P (Center)
    G01596616Courtesy of GENERAL MOTORS CORP.
  3. Install the 2 retaining screws (1).

    Tighten

    Tighten the screws to 2.5 N.m (22 lb in).

  4. Install the radio. Refer to RADIO REPLACEMENT in Entertainment.
  5. Install the I/P cluster bezel, Chevrolet only. Refer to BEZEL REPLACEMENT - INSTRUMENT PANEL (I/P) CLUSTER (CHEVROLET) or BEZEL REPLACEMENT - INSTRUMENT PANEL (I/P) CLUSTER (GMC/OLDSMOBILE) .
  6. Install the knee bolster trim panel. Refer to TRIM PANEL REPLACEMENT - KNEE BOLSTER .
  7. Install the left closeout/insulator panel. Refer to CLOSEOUT/INSULATOR PANEL REPLACEMENT - LEFT .

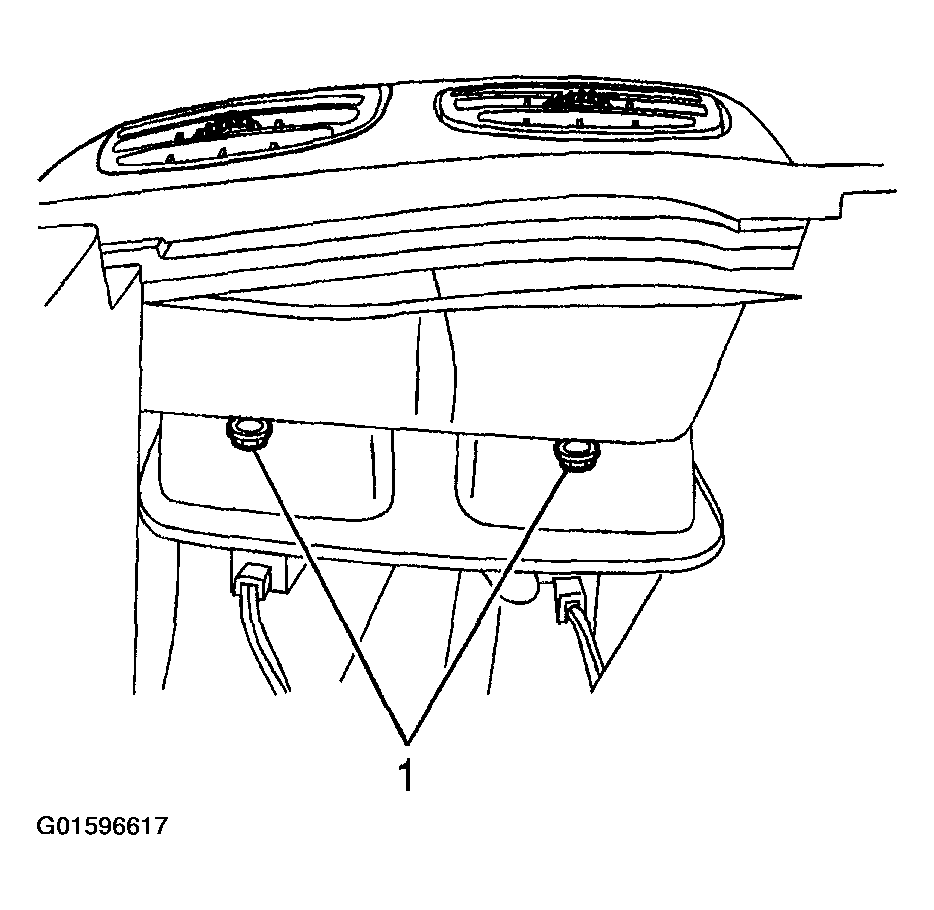

    Fig 2: Installing Retaining Screws (Center)
    G01596617Courtesy of GENERAL MOTORS CORP.
