Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, 2003 Chevrolet TrailBlazer, and 2002 Oldsmobile Bravada. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the LH lower closeout/insulator panel.

    Refer to CLOSEOUT/INSULATOR PANEL REPLACEMENT - LEFT in Instrument Panel, Gages and Console.

  2. Remove the push pin (2) retaining the floor air outlet duct (1) to the heater module.
  3. Remove the floor duct (1).

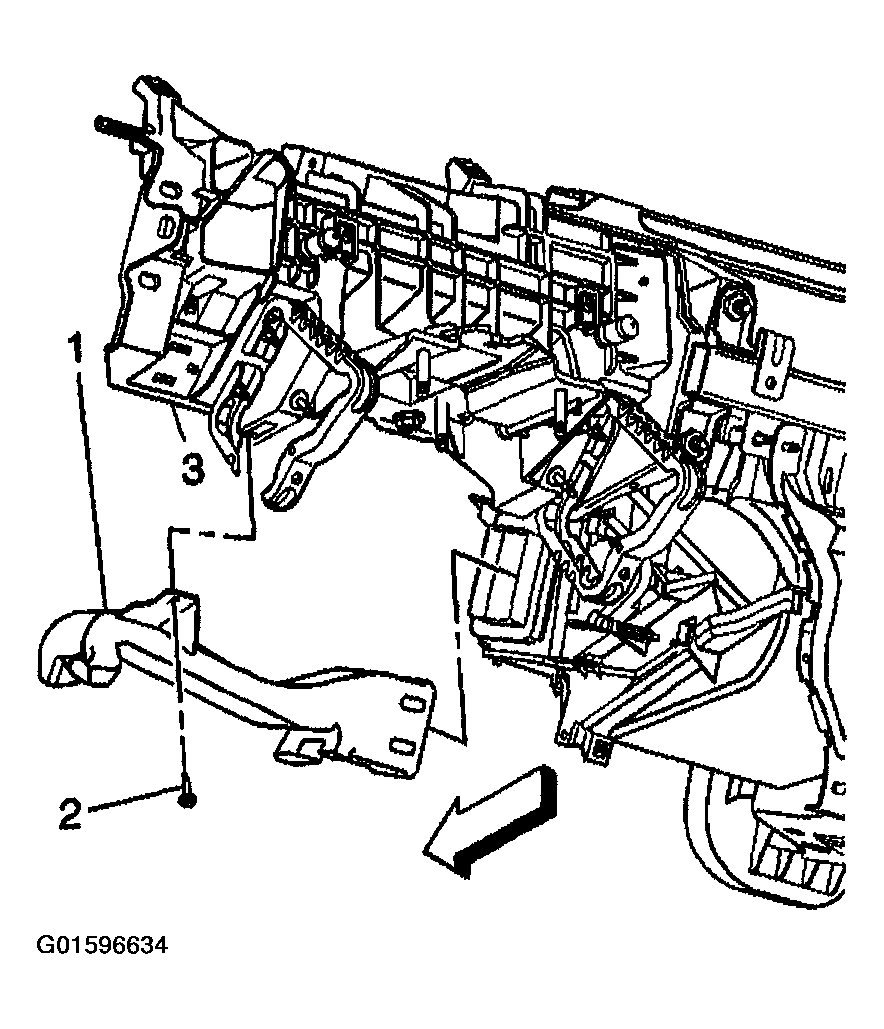

    Fig 1: Removing Push Pin Retaining Floor Air Outlet Duct To Heater Module
    G01596634Courtesy of GENERAL MOTORS CORP.
