Installation Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, 2003 Chevrolet TrailBlazer, and 2002 Oldsmobile Bravada. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the floor air outlet duct (1) into position.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the floor air outlet duct retaining push pin (2).

    Tighten

    Tighten the screws to 1.9 N.m (17 lb in).

  3. Install the LH lower closeout/insulator panel. Refer to CLOSEOUT/INSULATOR PANEL REPLACEMENT - LEFT in Instrument Panel, Gages and Console.

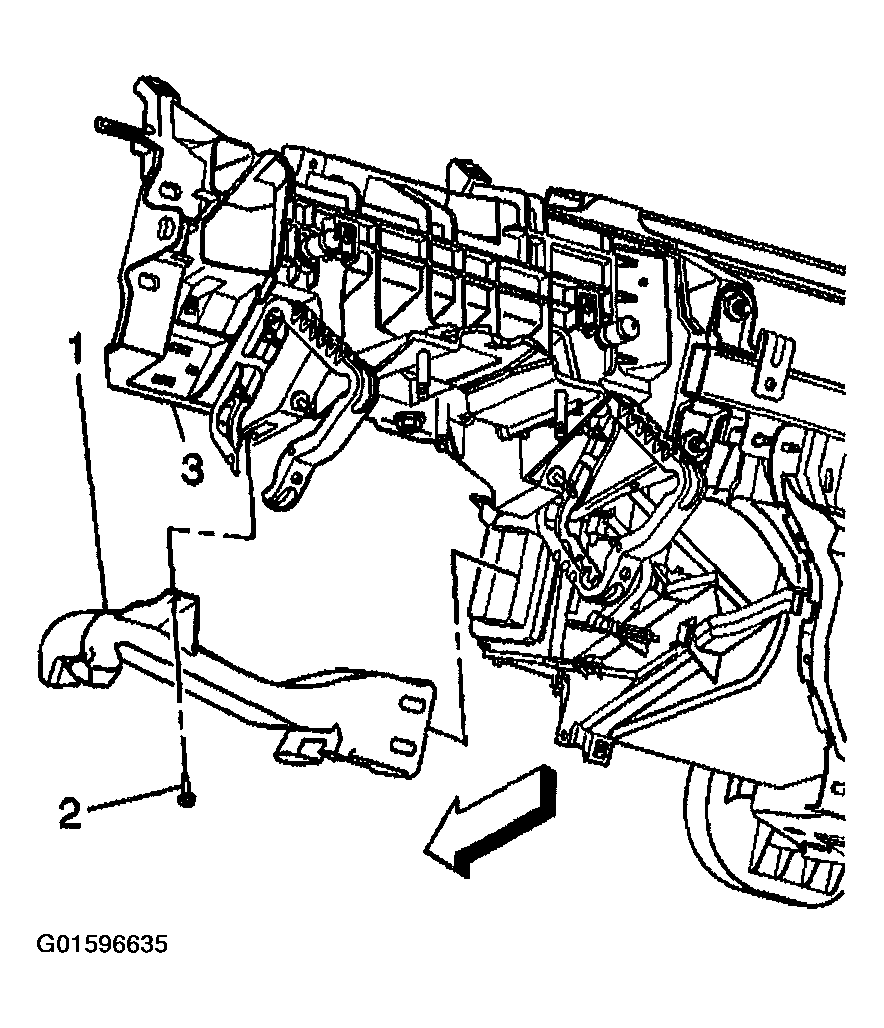

    Fig 1: Installing Floor Air Outlet Duct Retaining Push Pin
    G01596635Courtesy of GENERAL MOTORS CORP.
