Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, 2003 Chevrolet TrailBlazer, and 2002 Oldsmobile Bravada. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the IP assembly. Refer to INSTRUMENT PANEL (I/P) ASSEMBLY REPLACEMENT in Instrument Panel, Gages and Console.
  2. Remove the driver side air distributor duct screws.
  3. Remove the air distributor duct (1) from the instrument panel.

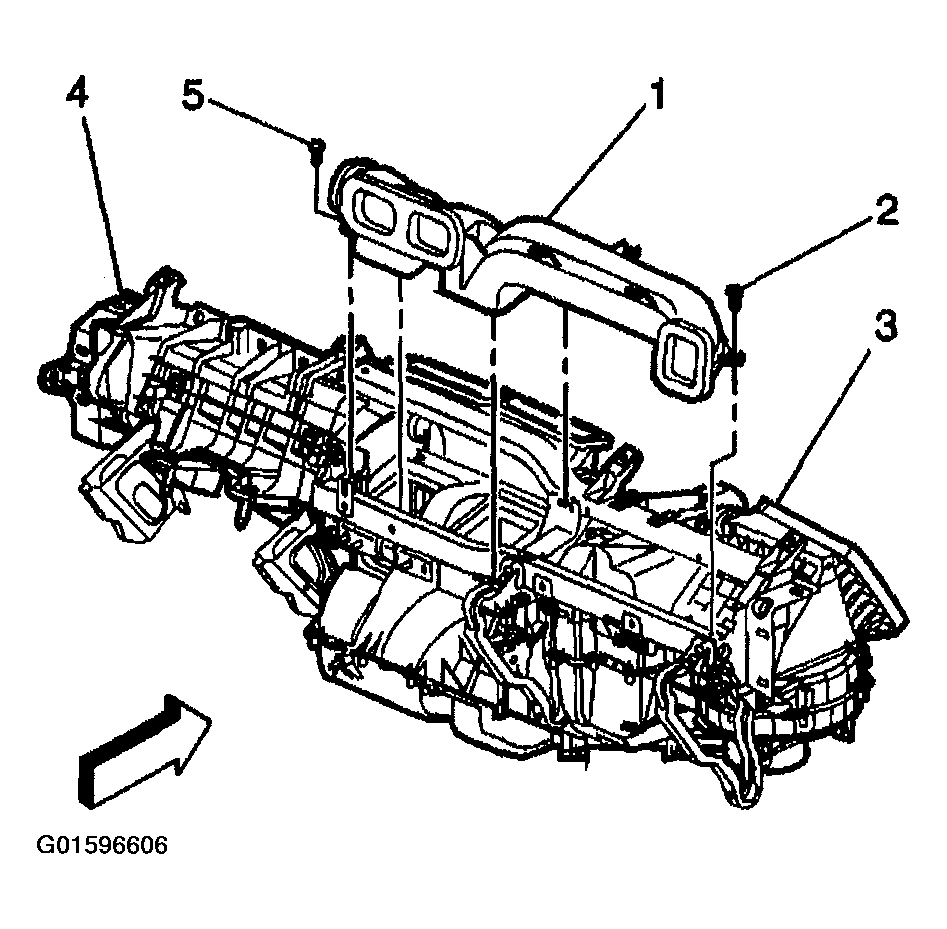

    Fig 1: Removing Air Distributor Duct From Instrument Panel
    G01596606Courtesy of GENERAL MOTORS CORP.
