Installation Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, 2003 Chevrolet TrailBlazer, and 2002 Oldsmobile Bravada. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the air distributor duct (1) to the instrument panel.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the retaining screws to the air distributor duct.

    Tighten

    Tighten the screws to 1.9 N.m (17 lb in).

  3. Install the IP assembly. Refer to INSTRUMENT PANEL (I/P) ASSEMBLY REPLACEMENT in Instrument Panel, Gages and Console.

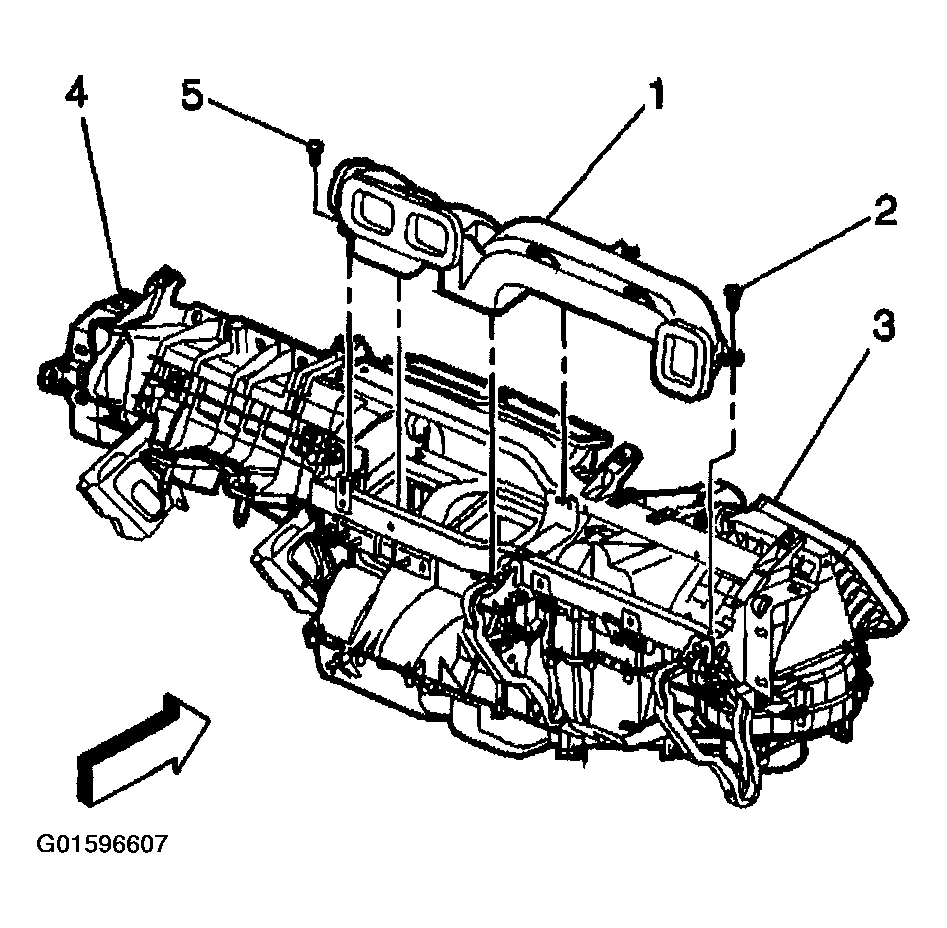

    Fig 1: Installing Air Distributor Duct To Instrument Panel
    G01596607Courtesy of GENERAL MOTORS CORP.
