Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, 2003 Chevrolet TrailBlazer, and 2002 Oldsmobile Bravada. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the right rear quarter trim panel. Refer to INTERIOR TRIM or INTERIOR TRIM in Interior Trim.
  2. Remove the headliner. Refer the INTERIOR TRIM in Interior Trim.
  3. Remove the mid upper air distribution duct retaining fastener (7).
  4. Remove the mid upper air distribution duct (6) from the C-pillar.
  5. Remove the lower air distribution duct (5) from the C-pillar.

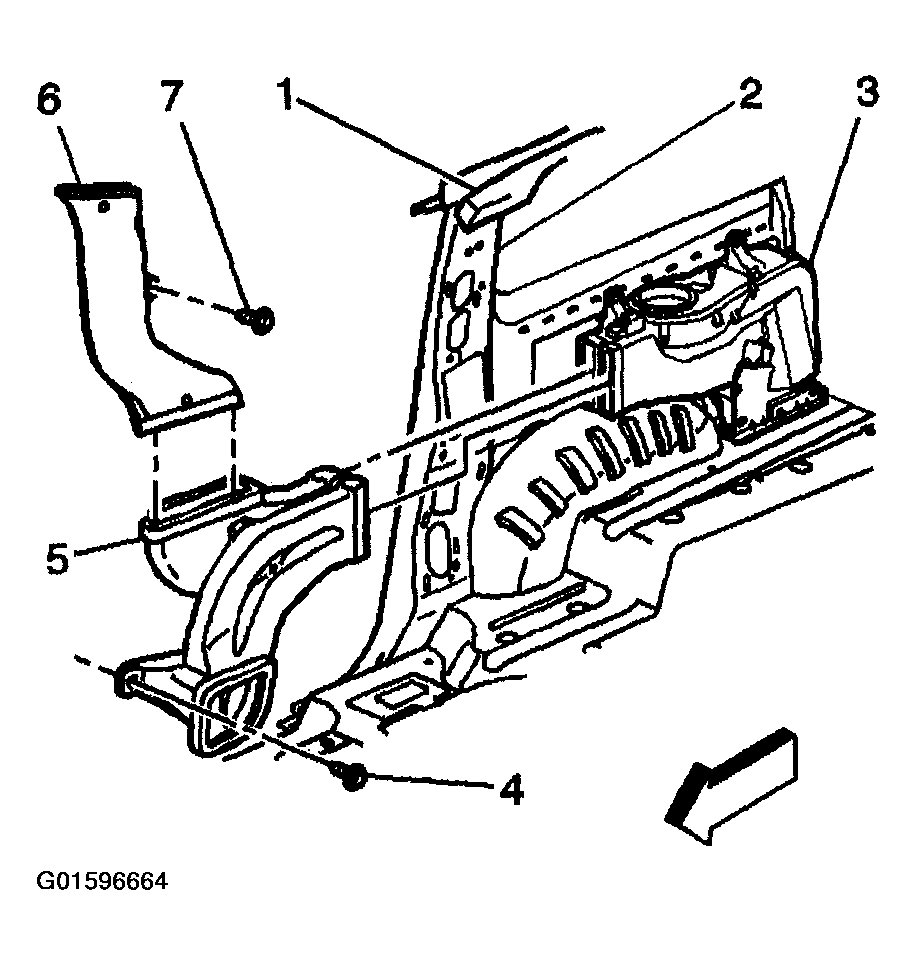

    Fig 1: Removing Mid Upper And Lower Air Distribution Duct (Upper)
    G01596664Courtesy of GENERAL MOTORS CORP.
