Installation Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, 2003 Chevrolet TrailBlazer, and 2002 Oldsmobile Bravada. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the lower air distribution duct (5) to the C-pillar.
  2. Install the lower air distribution duct retaining screw (4).
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  3. Tighten the lower air distribution duct retaining screw.

    Tighten

    Tighten the screw to 1.9 N.m (17 lb in).

  4. Install the upper air distribution duct (6) to the C-pillar.
  5. Install the upper air distribution duct retaining screw (7).

    Tighten

    Tighten the screw to 1.9 N.m (17 lb in).

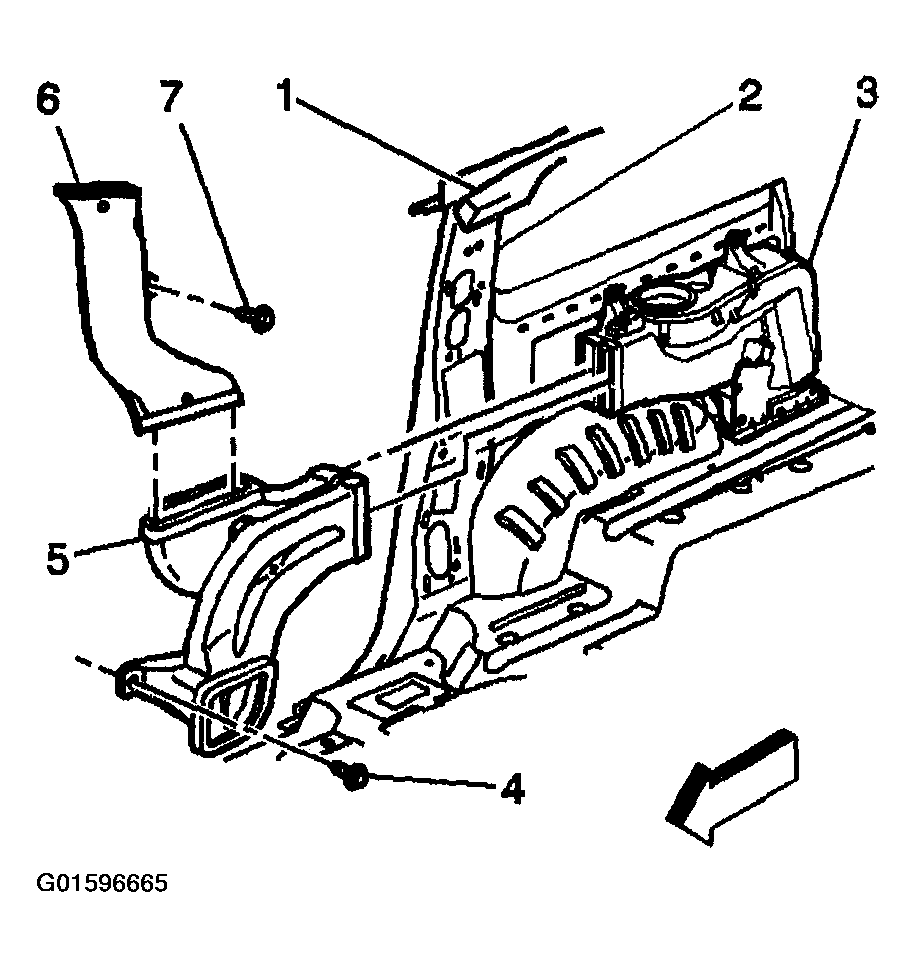

    Fig 1: Installing Mid Upper And Lower Air Distribution Duct (Upper)
    G01596665Courtesy of GENERAL MOTORS CORP.
  6. Install the headliner. Refer to INTERIOR TRIM or INTERIOR TRIM in Interior Trim.
  7. Install the right rear quarter trim. Refer to INTERIOR TRIM or INTERIOR TRIM in Interior Trim.
