Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, 2003 Chevrolet TrailBlazer, and 2002 Oldsmobile Bravada. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the right rear quarter trim panel. Refer to INTERIOR TRIM or INTERIOR TRIM in Interior Trim.
  2. Remove the lower air duct fastener (4).
  3. Remove the mid-upper air distribution fastener (6).
  4. Remove the mid-upper air distribution duct (6).
  5. Remove the lower air duct (5) from the vehicle.

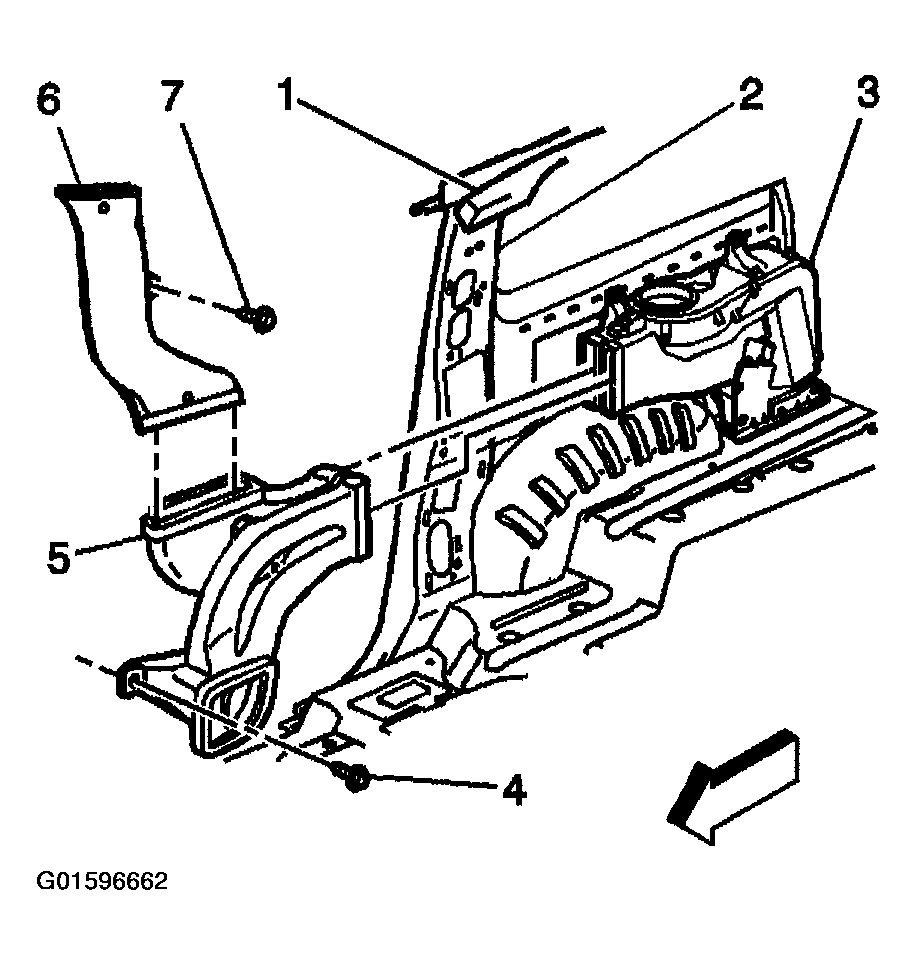

    Fig 1: Removing Mid-Upper Air Distribution Duct And Lower Air Duct From Vehicle (Lower)
    G01596662Courtesy of GENERAL MOTORS CORP.
