Installation Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, 2003 Chevrolet TrailBlazer, and 2002 Oldsmobile Bravada. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the mid-upper air distribution duct (6).
  2. Install the mid-upper air distribution fastener (7).
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  3. Tighten the mid-upper air distribution screw.

    Tighten

    Tighten the screw to 1.9 N.m (17 lb in).

  4. Install the lower air duct (5) to the vehicle.

    Tighten

    Tighten the screw to 1.9 N.m (17 lb in).

  5. Install the lower air duct screw (4).
  6. Install the right rear quarter trim panel. Refer to INTERIOR TRIM or INTERIOR TRIM in Interior Trim.

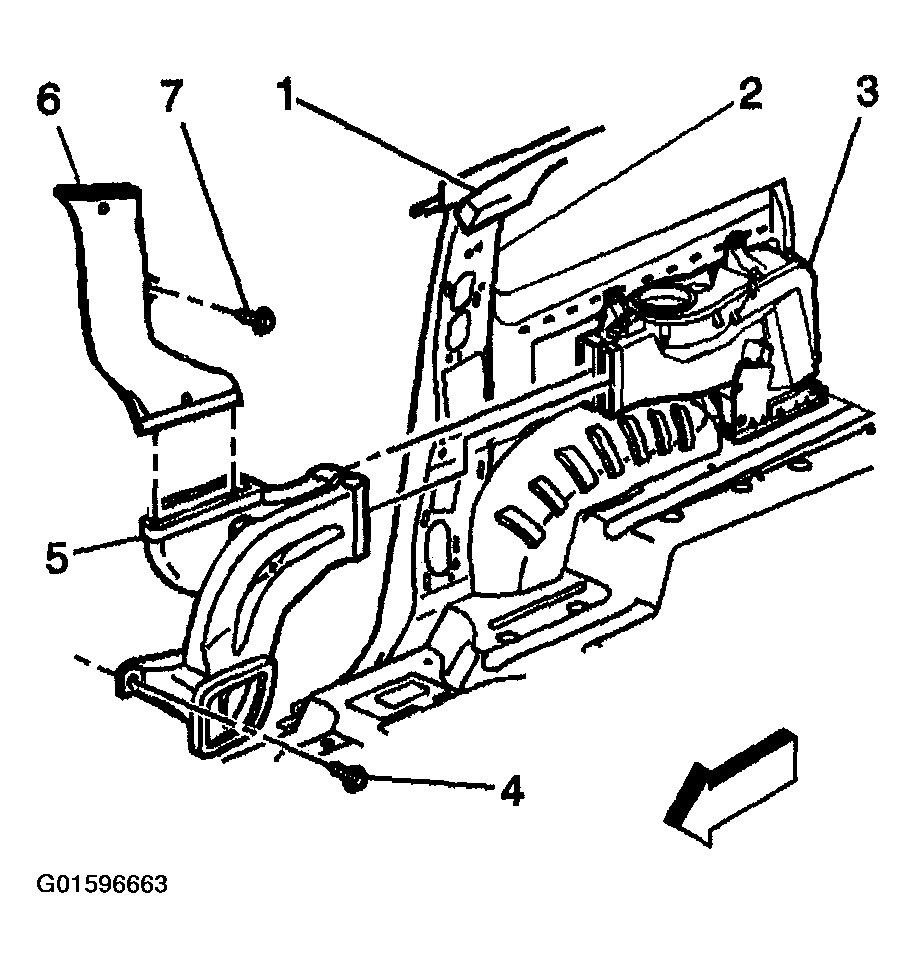

    Fig 1: Installing Mid-Upper Air Distribution Duct And Lower Air Duct To Vehicle (Lower)
    G01596663Courtesy of GENERAL MOTORS CORP.
