Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, 2003 Chevrolet TrailBlazer, and 2002 Oldsmobile Bravada. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise the vehicle. Refer to JACKING AND LIFTING in General Information.
  2. Disconnect the electrical connector from the A/C refrigerant pressure sensor. The connector is accessible through the lower control arm,
  3. Remove the A/C refrigerant pressure sensor from the compressor hose block.
  4. Remove and discard the O-ring seal from the A/C refrigerant pressure sensor.

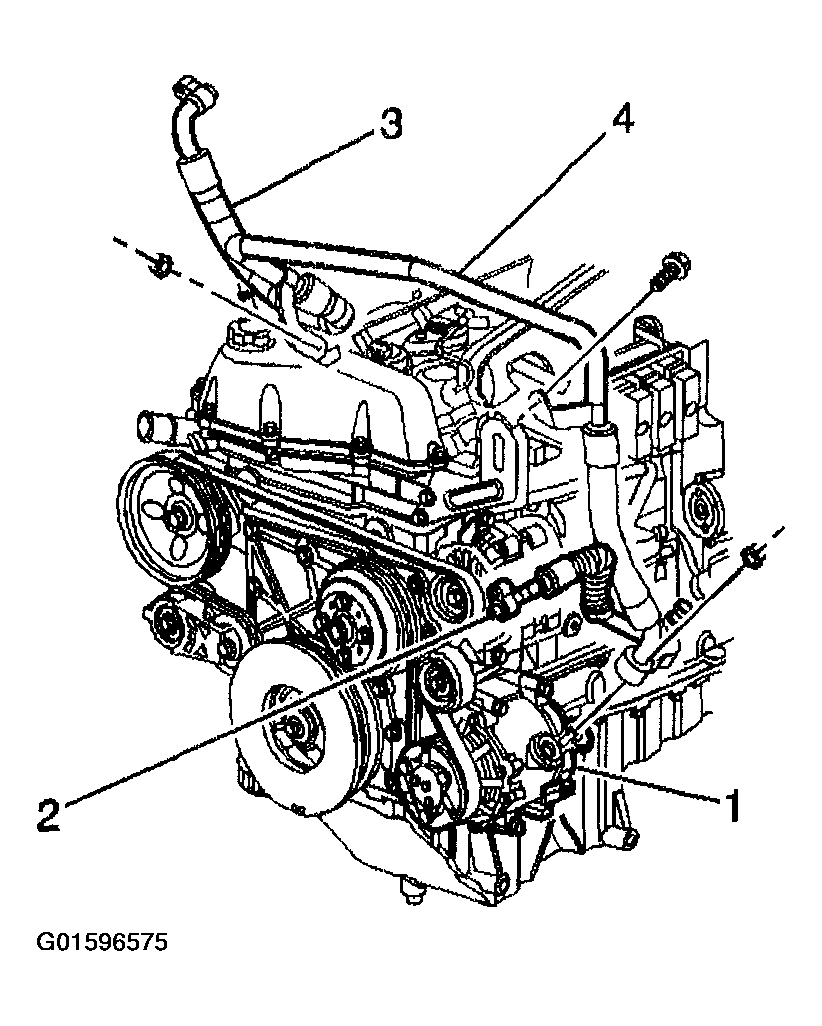

    Fig 1: Removing A/C Refrigerant Pressure Sensor From Compressor Hose Block
    G01596575Courtesy of GENERAL MOTORS CORP.
