Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, 2003 Chevrolet TrailBlazer, and 2002 Oldsmobile Bravada. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the A/C low pressure switch electrical connector.
  2. Remove the A/C low pressure switch (2) from the accumulator (1).
  3. Remove and discard the O-ring seal from the A/C low pressure switch port on the accumulator.

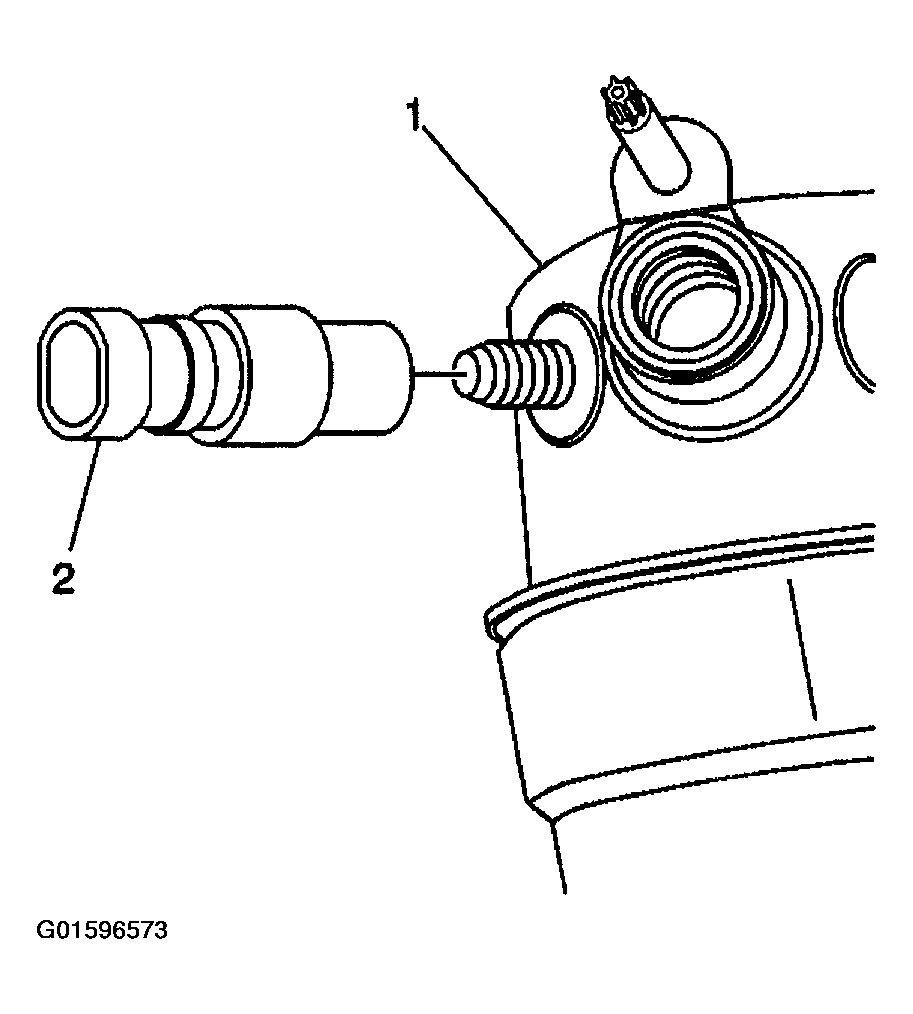

    Fig 1: Removing A/C Low Pressure Switch From Accumulator
    G01596573Courtesy of GENERAL MOTORS CORP.
