Installation Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, 2003 Chevrolet TrailBlazer, and 2002 Oldsmobile Bravada. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the new O-ring seal. Refer to O-RING REPLACEMENT .
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the A/C low pressure switch (2) to the accumulator (1).

    Tighten

    Tighten the A/C low pressure switch to 4.8 N.m (42 lb in).

  3. Connect the A/C low pressure switch electrical connector.
  4. Leak test the fittings of the components using the J 39400-A.

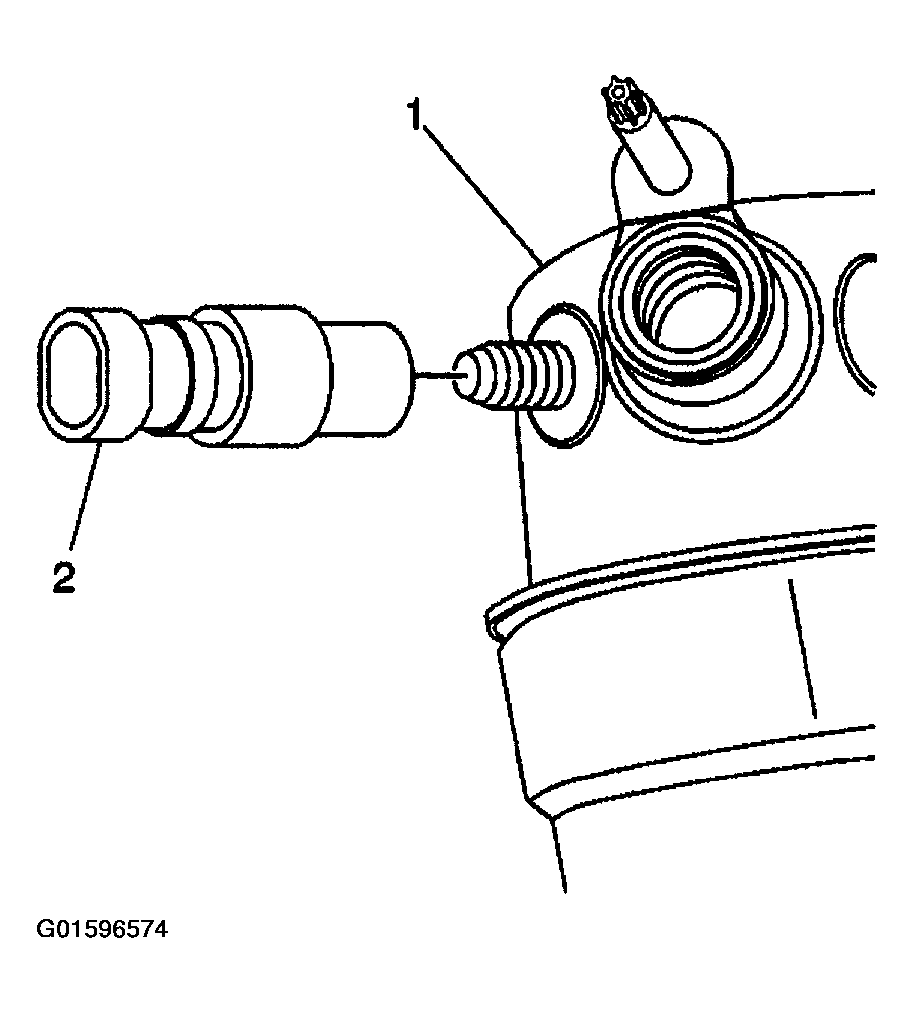

    Fig 1: Installing A/C Low Pressure Switch To Accumulator
    G01596574Courtesy of GENERAL MOTORS CORP.
