Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, 2003 Chevrolet TrailBlazer, and 2002 Oldsmobile Bravada. However, it is still accessible from the selected car via links, so may be relevant.
  1. Recover the refrigerant. Refer to REFRIGERANT RECOVERY AND RECHARGING .
  2. Disconnect the electrical connector from the A/C pressure switch.
  3. Remove the A/C low pressure switch.
  4. Remove the nut (3) retaining the accumulator (4) to evaporator (1).
  5. Remove the compressor suction hose assembly from the accumulator.
  6. Remove and discard the O-ring seals.
  7. Remove the accumulator clamp nut.
  8. Remove the accumulator from the vehicle.

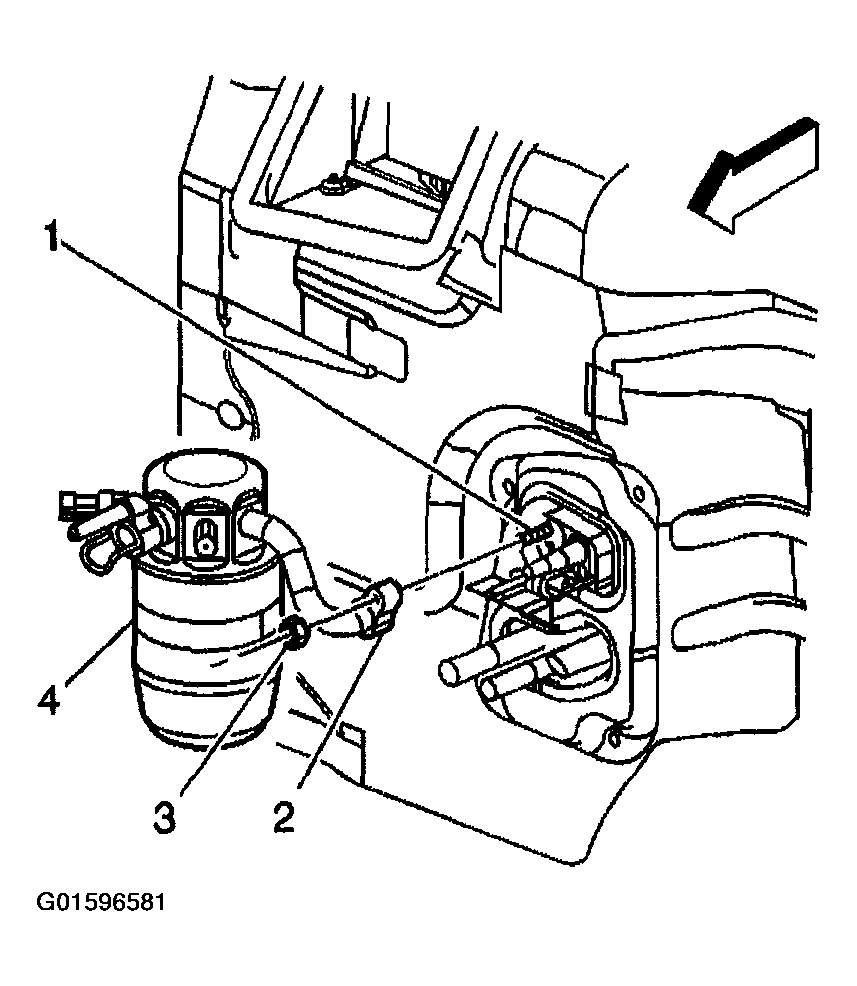

    Fig 1: Removing Nut Retaining Accumulator To Evaporator
    G01596581Courtesy of GENERAL MOTORS CORP.
