Installation Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, 2003 Chevrolet TrailBlazer, and 2002 Oldsmobile Bravada. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT: If replacing the accumulator, add the refrigerant oil to the accumulator. Refer to REFRIGERANT SYSTEM CAPACITIES  for the capacity information.
  1. Install the accumulator to the vehicle.
  2. Install the accumulator into the accumulator clamp.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  3. Install the accumulator clamp nut.

    Tighten

    Tighten the nut to 10 N.m (88 lb in).

  4. Install the A/C low pressure switch.

    Tighten

    Tighten the A/C low pressure switch to 5 N.m (44 lb in).

  5. Install new O-ring seals. Refer to O-RING REPLACEMENT .

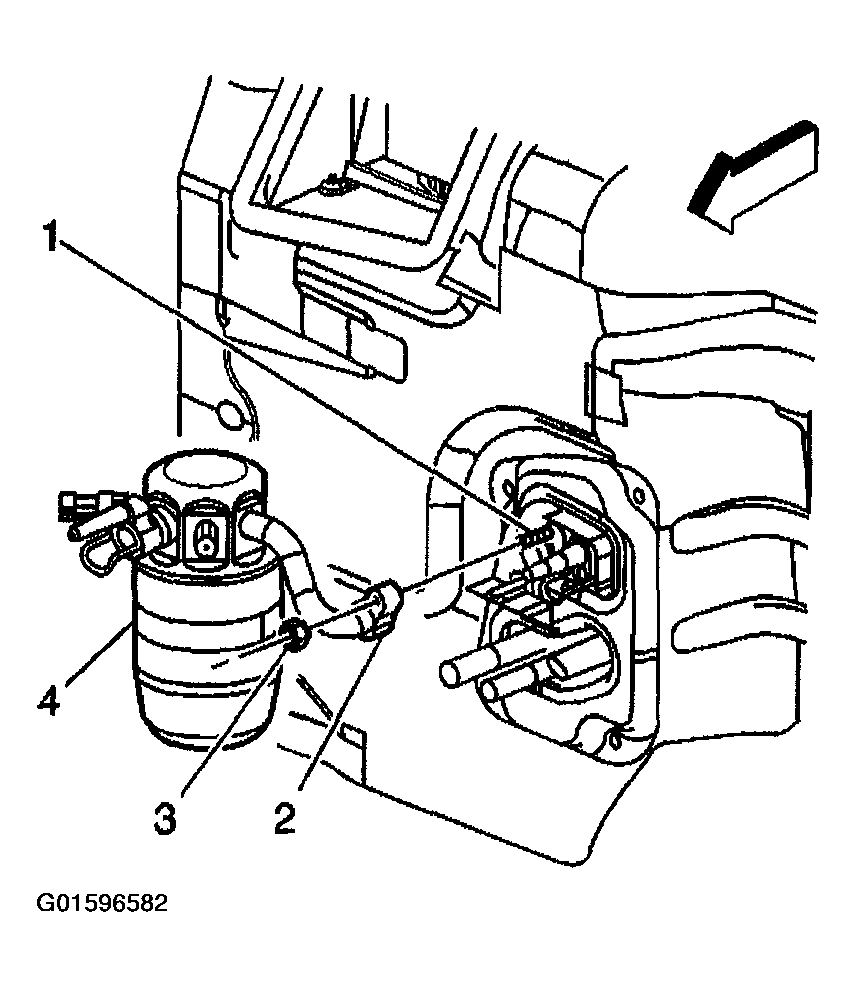

    Fig 1: Installing Nut Retaining Accumulator To Evaporator
    G01596582Courtesy of GENERAL MOTORS CORP.
  6. Install the accumulator to the evaporator.
  7. Install the accumulator retaining nut.

    Tighten

    Tighten the nut to 28 N.m (21 lb ft).

  8. Connect the compressor suction hose to the accumulator (4).
  9. Install the suction hose nut.

    Tighten

    Tighten the nut to 48 N.m (35 lb ft).

  10. Connect the electrical connector to the A/C low pressure switch.
  11. Evacuate and recharge the A/C system. Refer to REFRIGERANT RECOVERY AND RECHARGING .
  12. Leak test the fitting of the component using the J 39400.
