Air Conditioning (A/C) Diagnostics - Pressure Zone D

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, 2003 Chevrolet TrailBlazer, and 2002 Oldsmobile Bravada. However, it is still accessible from the selected car via links, so may be relevant.

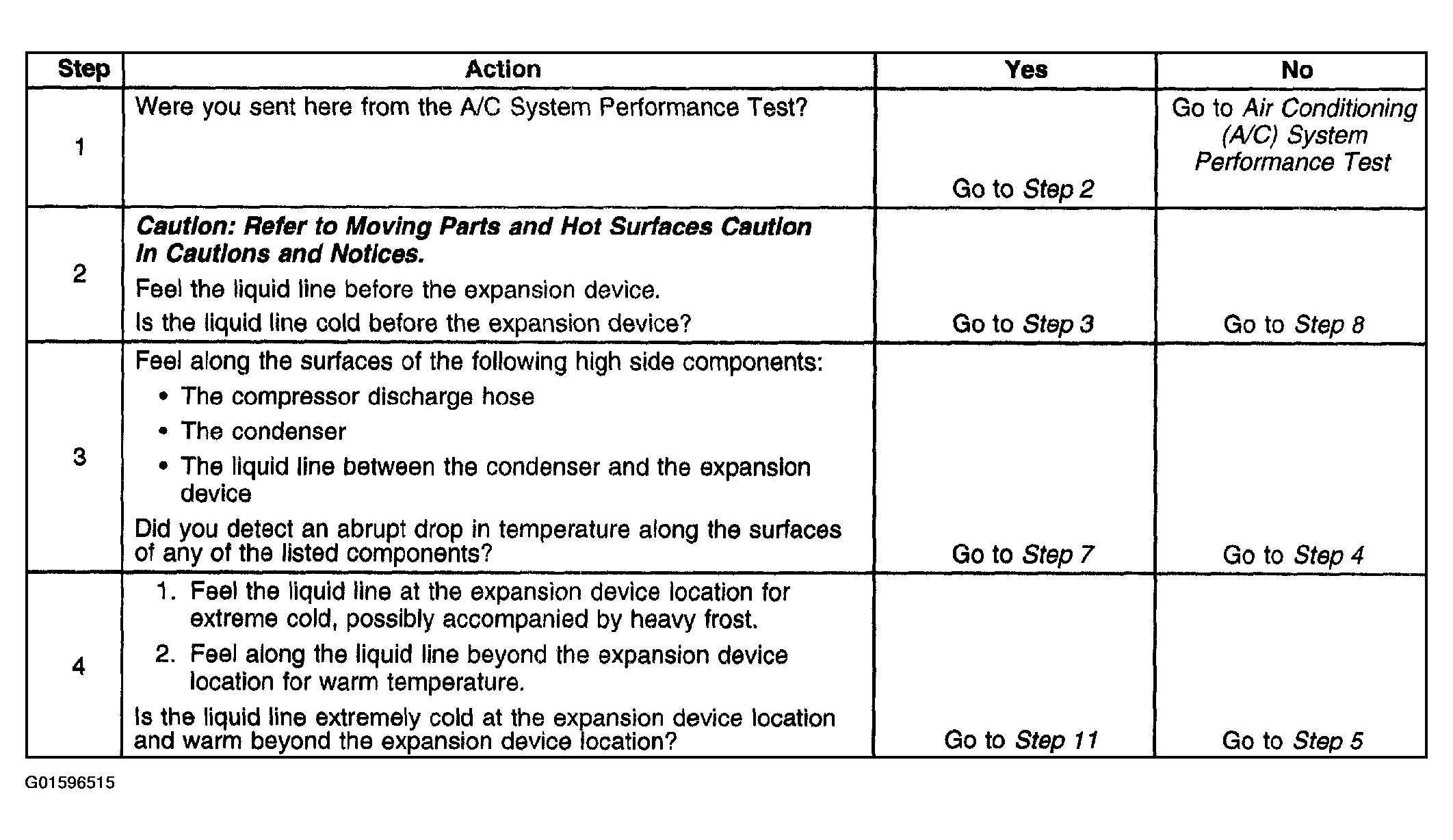

Fig 1: Air Conditioning (A/C) Diagnostics - Pressure Zone D (1 Of 4)

Courtesy of GENERAL MOTORS CORP.

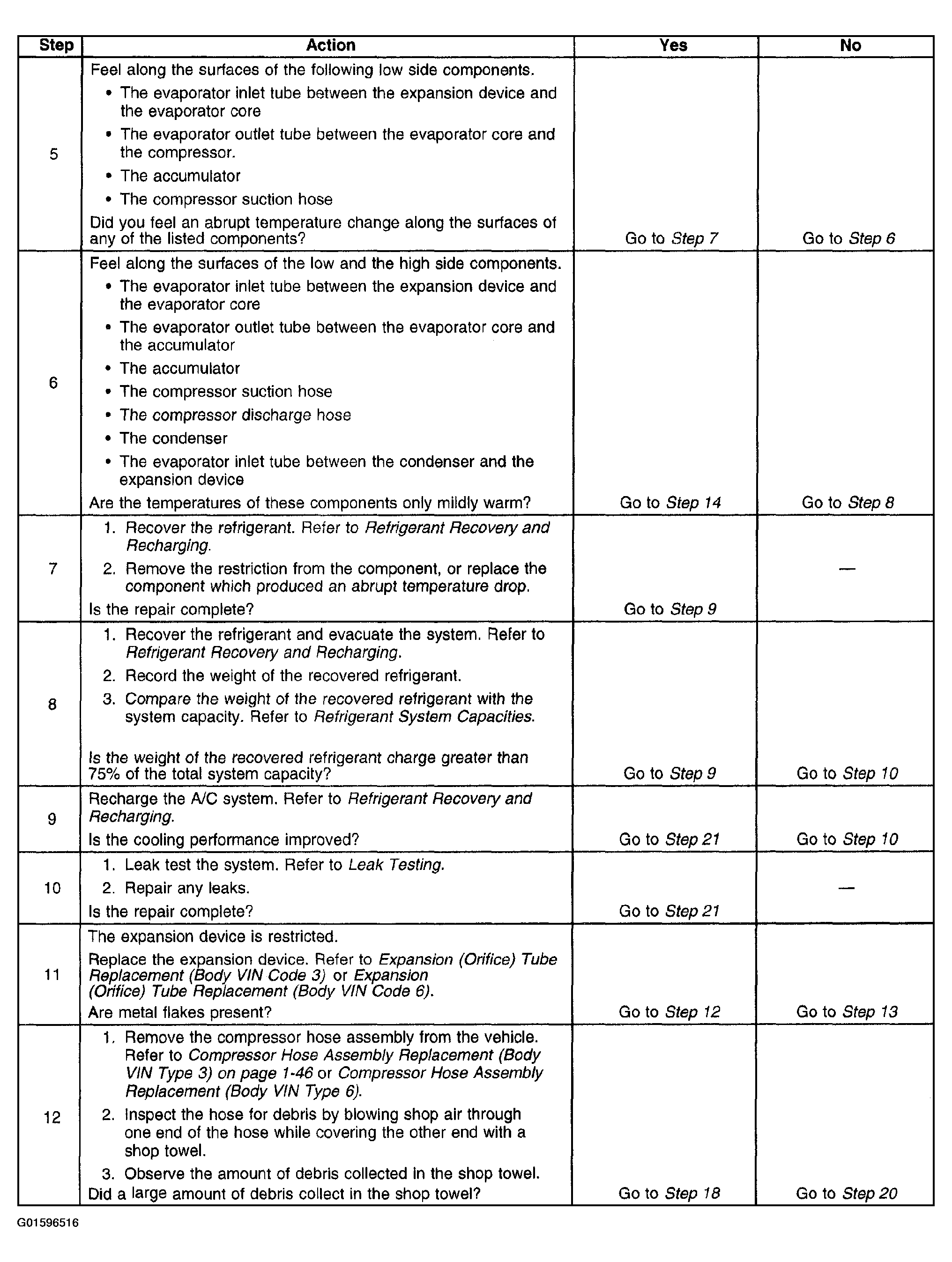

Fig 2: Air Conditioning (A/C) Diagnostics - Pressure Zone D (2 Of 4)

Courtesy of GENERAL MOTORS CORP.

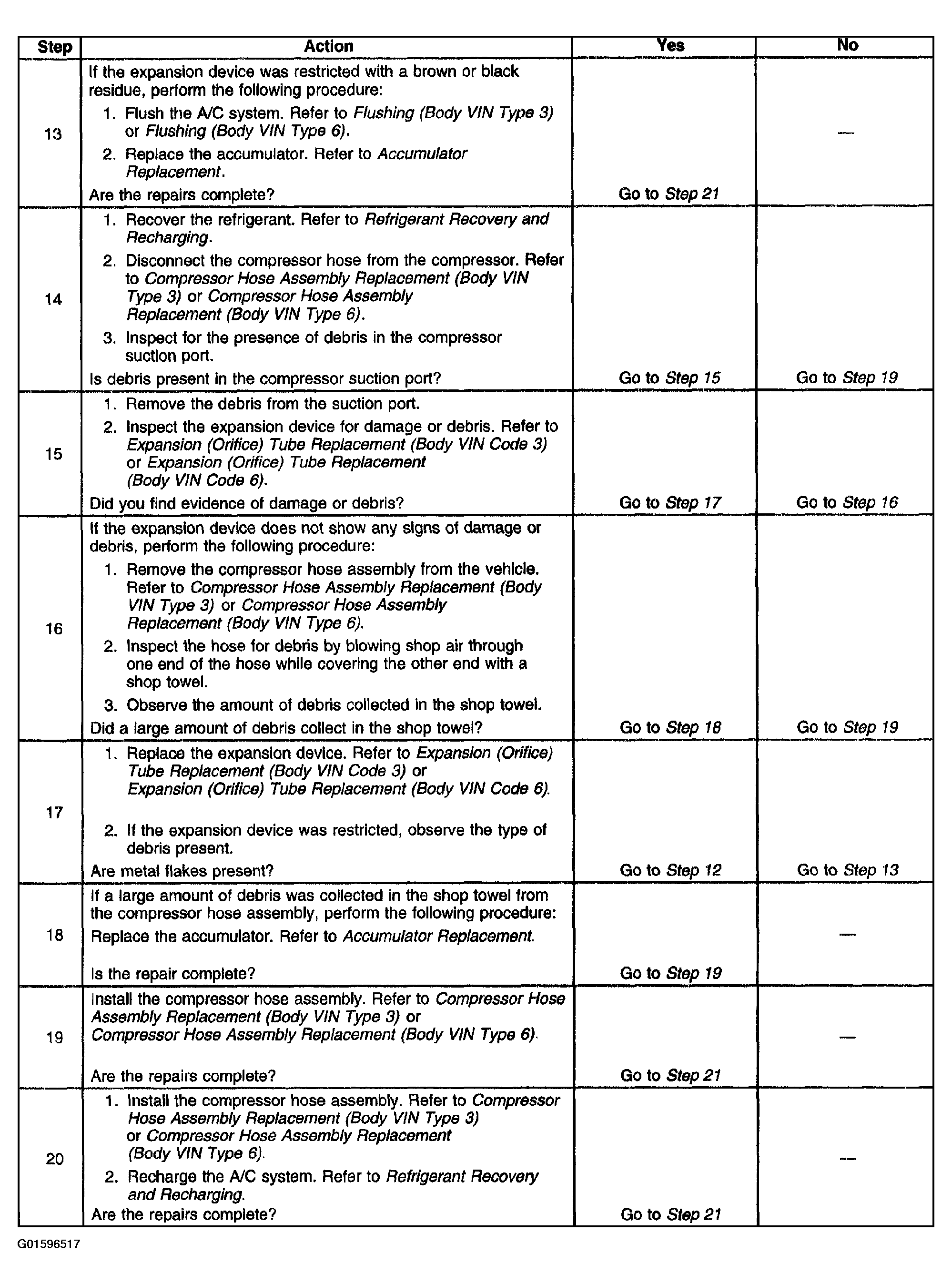

Fig 3: Air Conditioning (A/C) Diagnostics - Pressure Zone D (3 Of 4)

Courtesy of GENERAL MOTORS CORP.

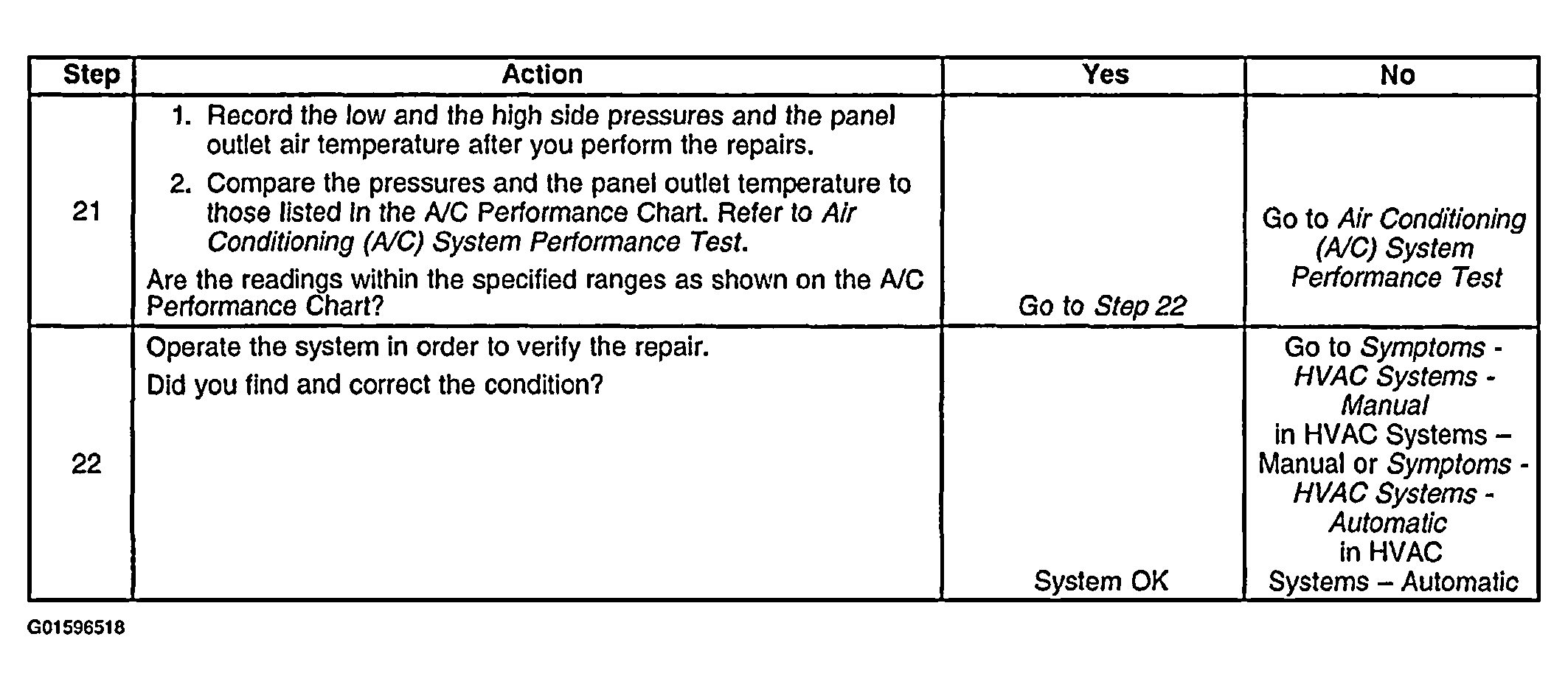

Fig 4: Air Conditioning (A/C) Diagnostics - Pressure Zone D (4 Of 4)

Courtesy of GENERAL MOTORS CORP.
