Power Distribution Schematics

WARNING: This page is about a different car, the 2002 Oldsmobile Bravada, 2002 GMC Envoy XL, 2002 GMC Envoy, and 2002 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

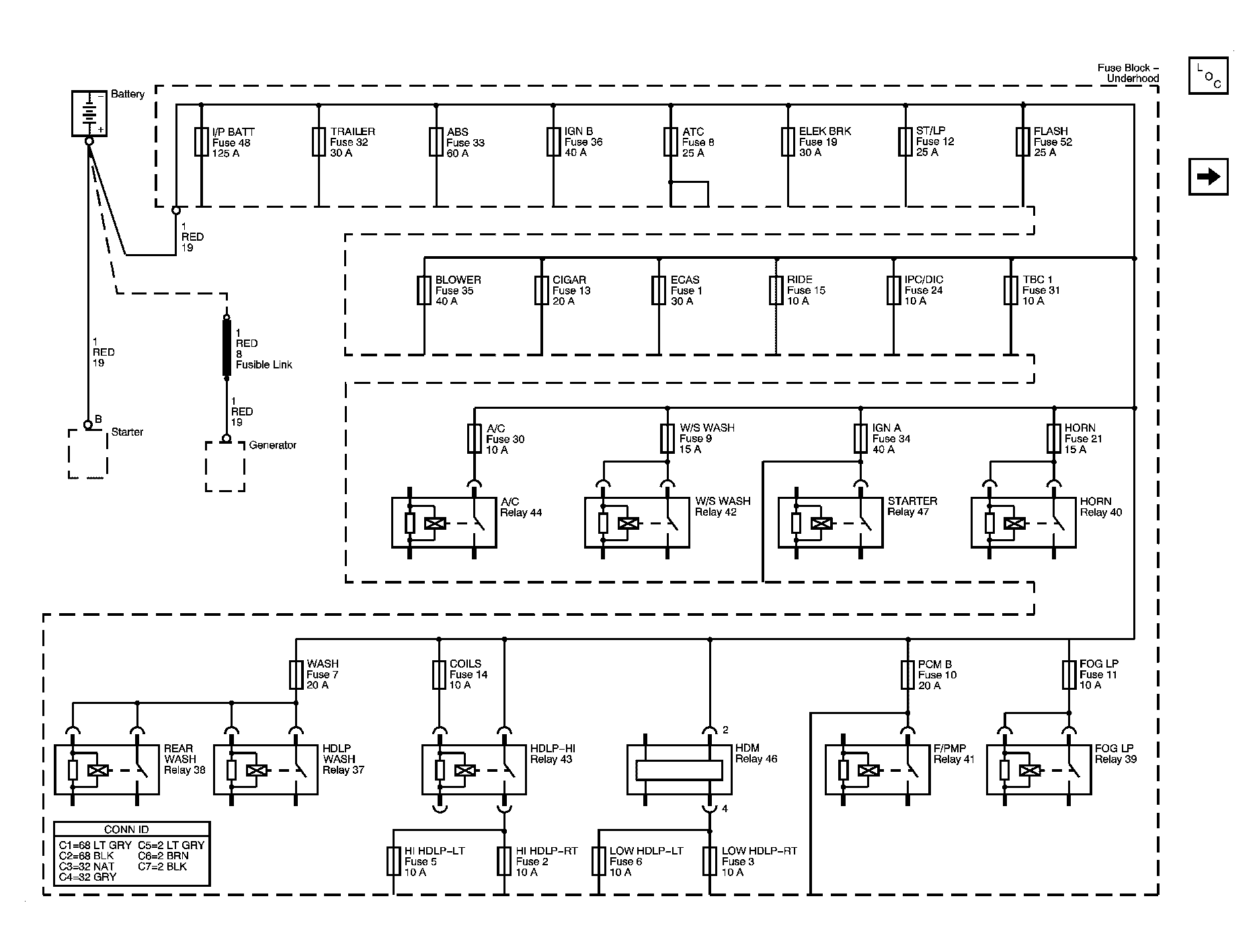

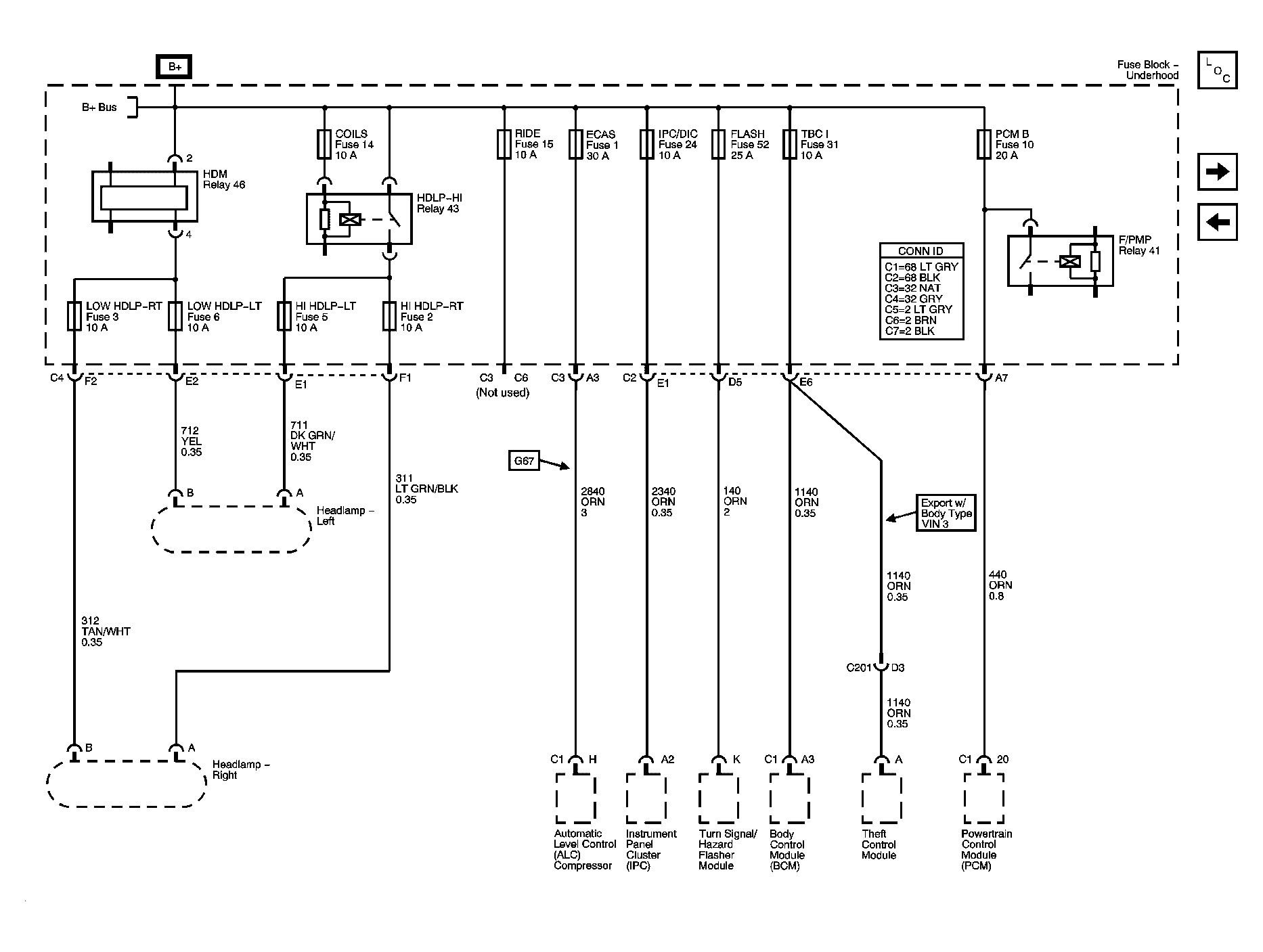

Fig 1: B+ Bus - Underhood Fuse Block Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 2: B+ Bus - Rear Fuse Block Schematic

Courtesy of GENERAL MOTORS CORP.

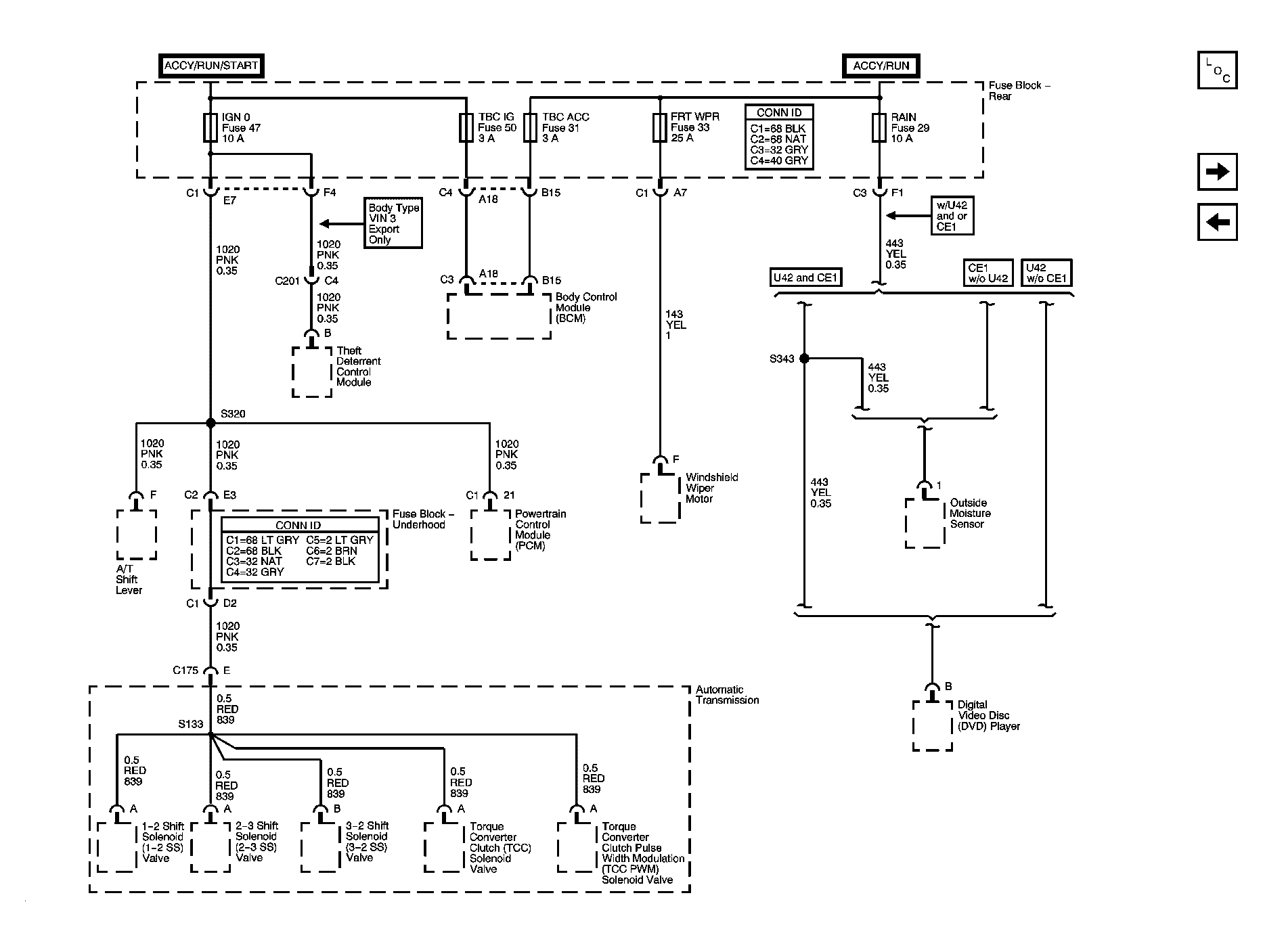

Fig 3: ACCY/RUN/START, RUN, & START Bus Bars Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 4: ACCY/RUN, & RUN/START Bus Bars Schematic

Courtesy of GENERAL MOTORS CORP.

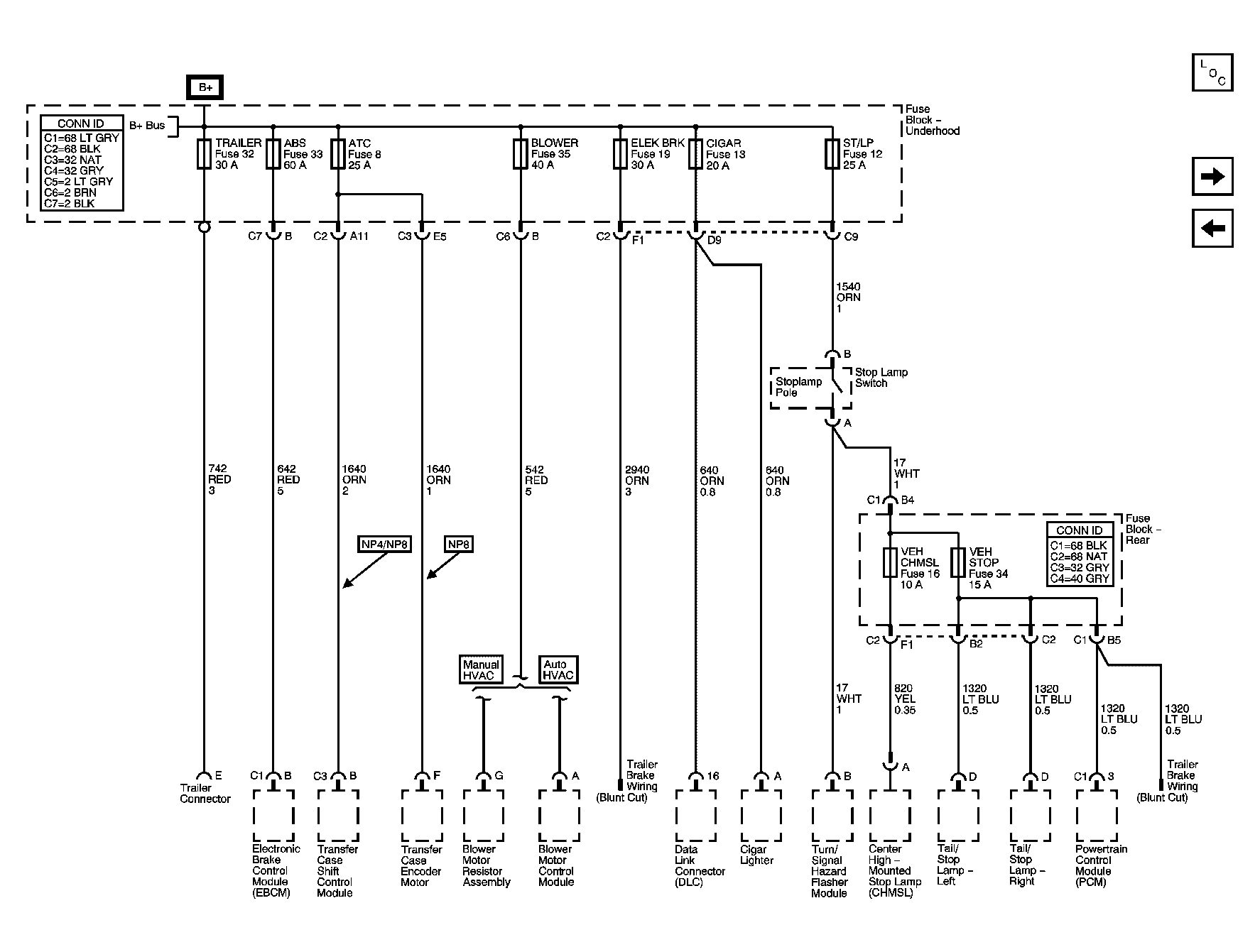

Fig 5: TRAILER, ABS, ATC, BLOWER, ELEK BRK, CIGAR, ST/LP, VEH CHMSL, & VEH STOP Fuses Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 6: COILS, RIDE, ECAS, IPC/DIC, FLASH, TBC 1, & PCM B Fuses Schematic

Courtesy of GENERAL MOTORS CORP.

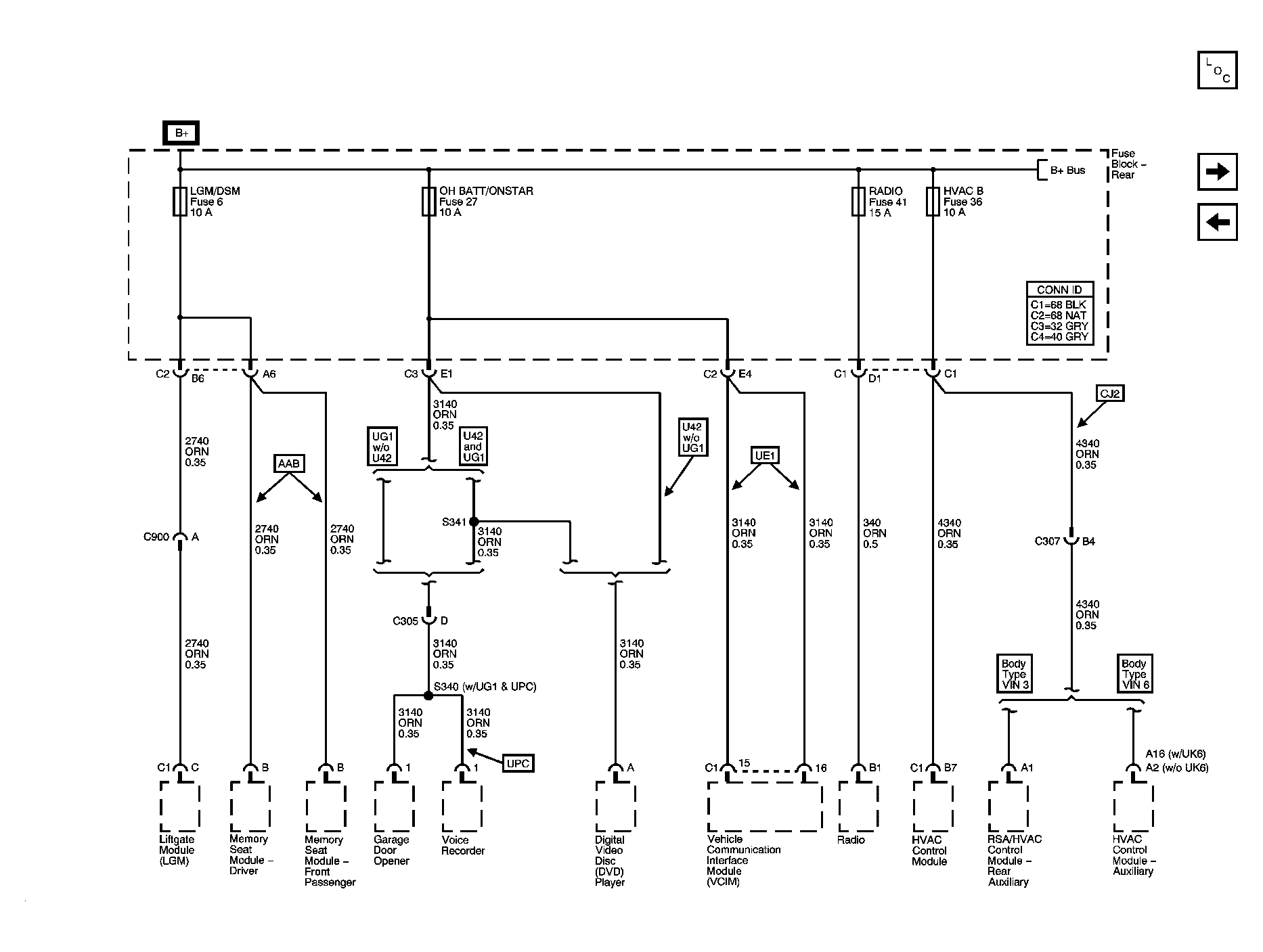

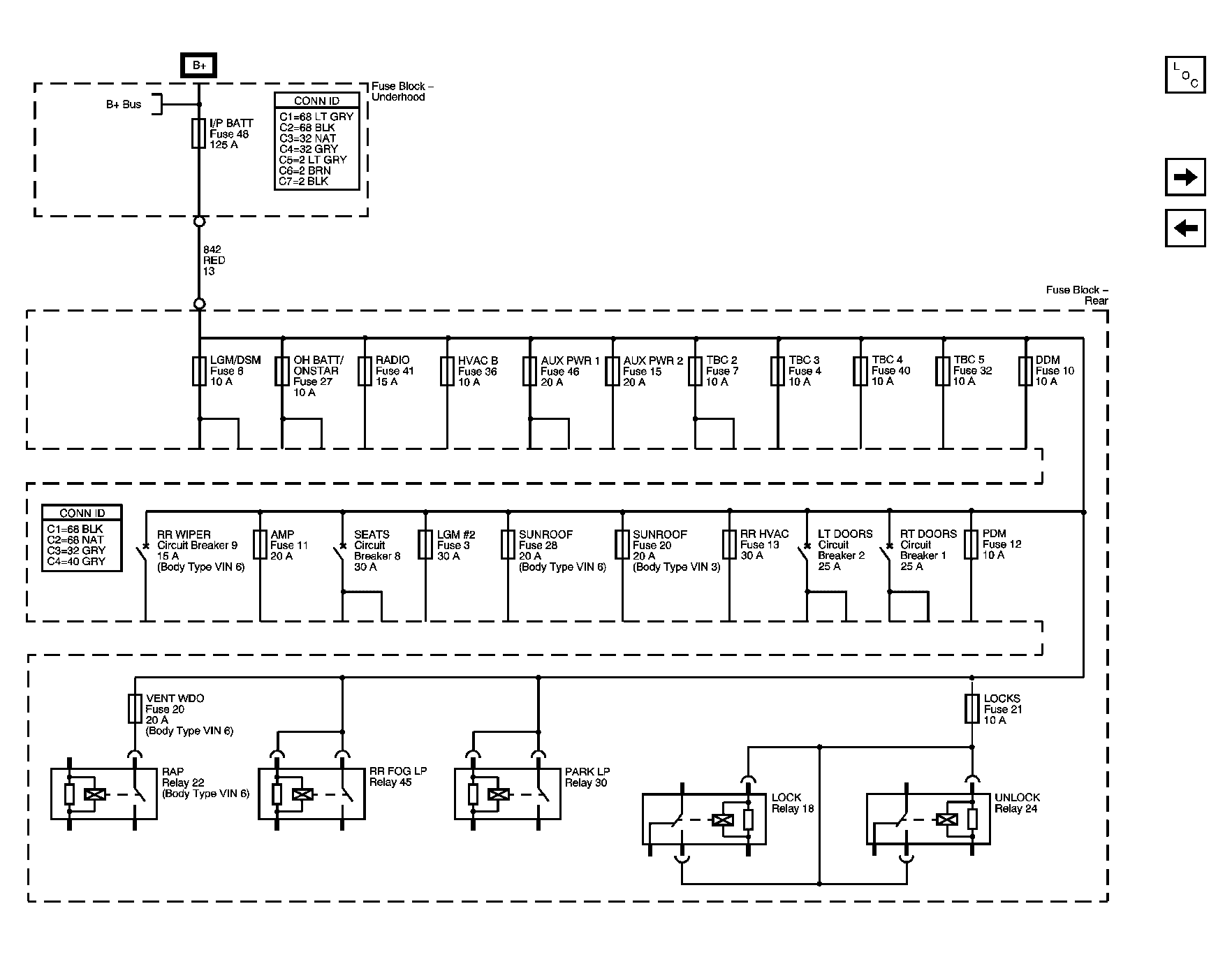

Fig 7: LGM/DSM, OH BATT/ONSTAR, RADIO, & HVAC B Fuses Schematic

Courtesy of GENERAL MOTORS CORP.

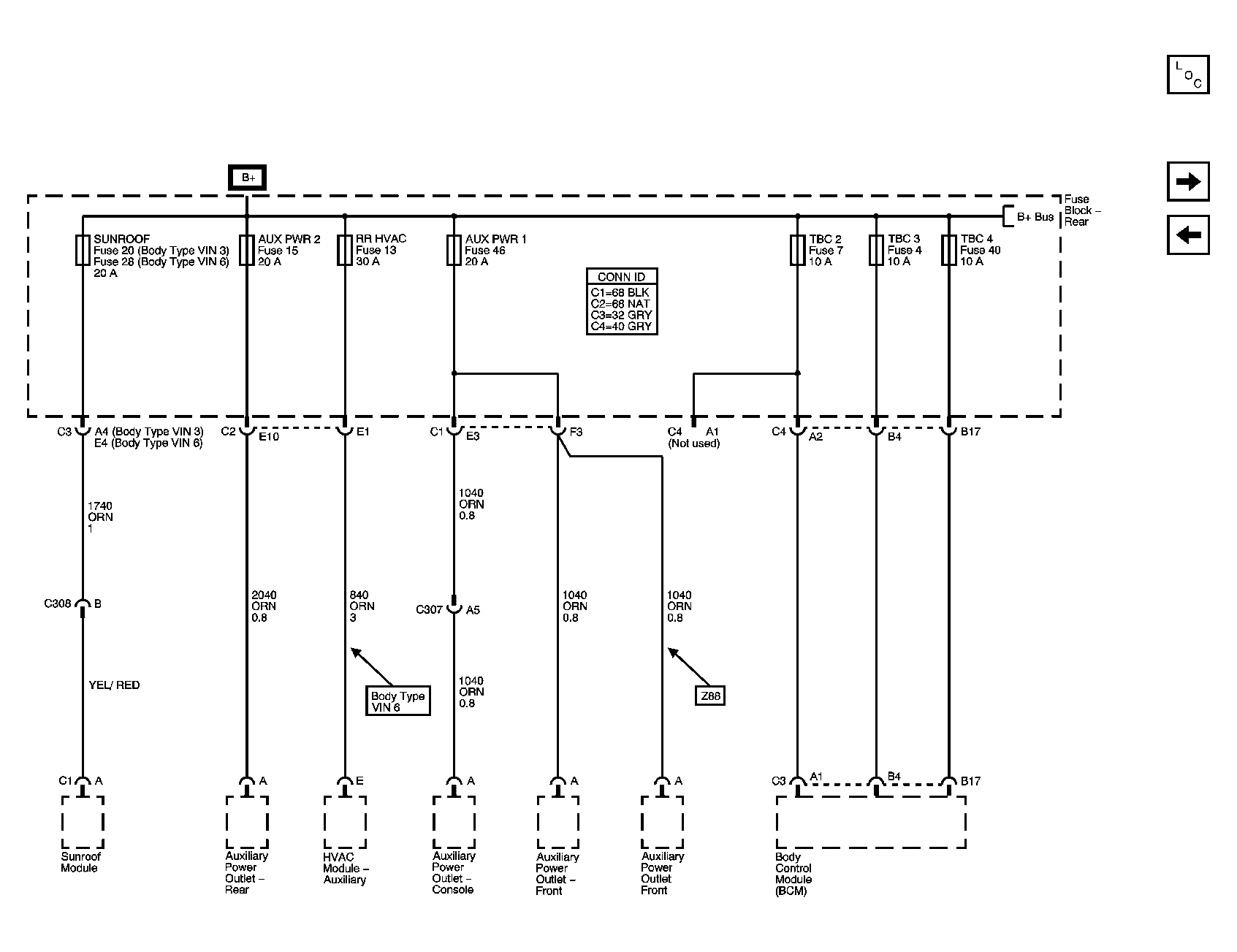

Fig 8: SUNROOF, AUX PWR 2, RR HVAC, AUX PWR 1, TBC 2, TBC 3, & TBC 4 Fuses Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 9: TBC 5, DDM, PDM, AMP Fuses, LT DOORS & RT DOORS Circuit Breakers Schematic

Courtesy of GENERAL MOTORS CORP.

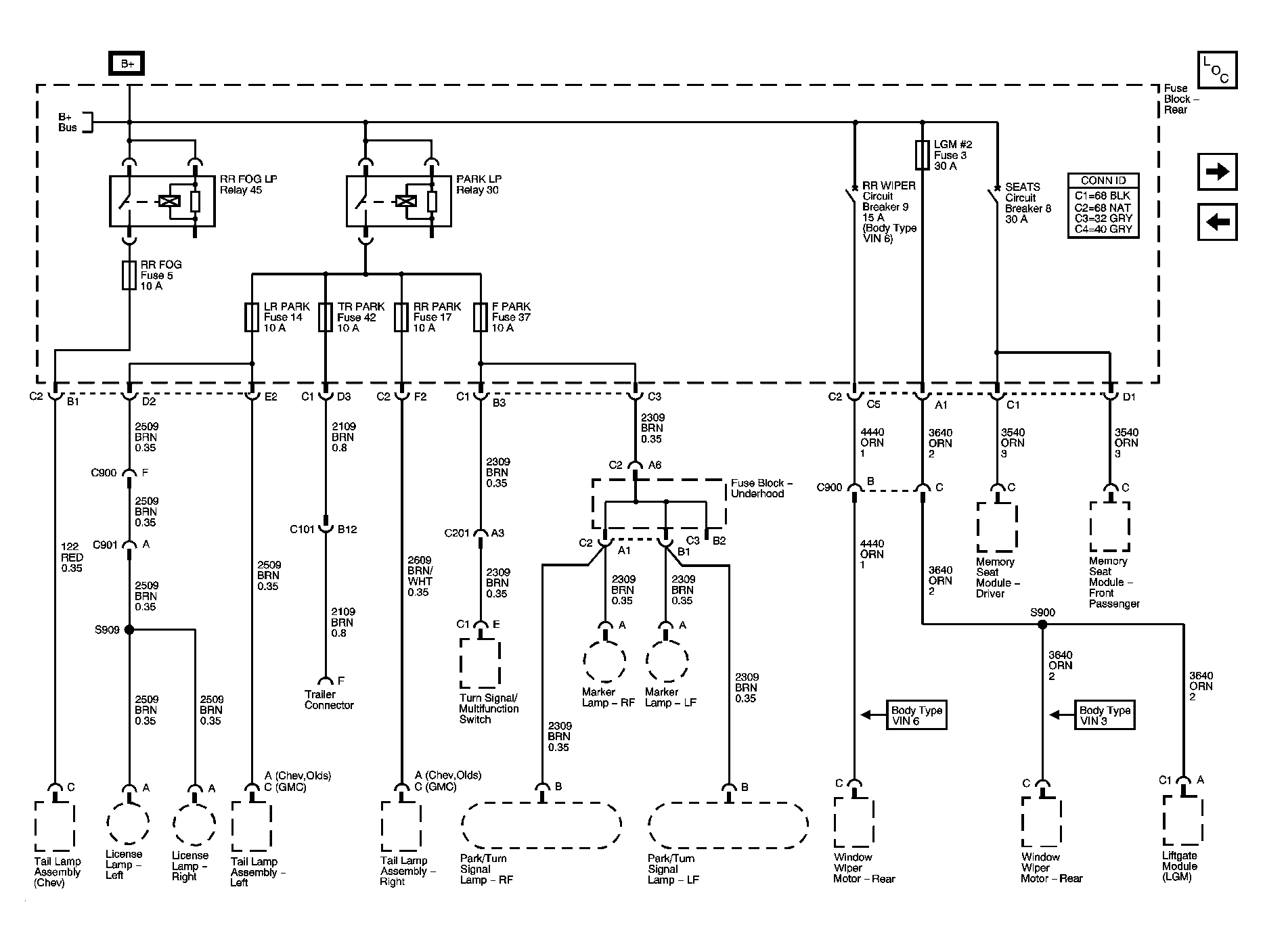

Fig 10: RR FOG, LR PARK, TR PARK, RR PARK, F PARK, LGM #2 Fuses, RR WIPER, & SEATS Circuit Breakers Schematic

Courtesy of GENERAL MOTORS CORP.

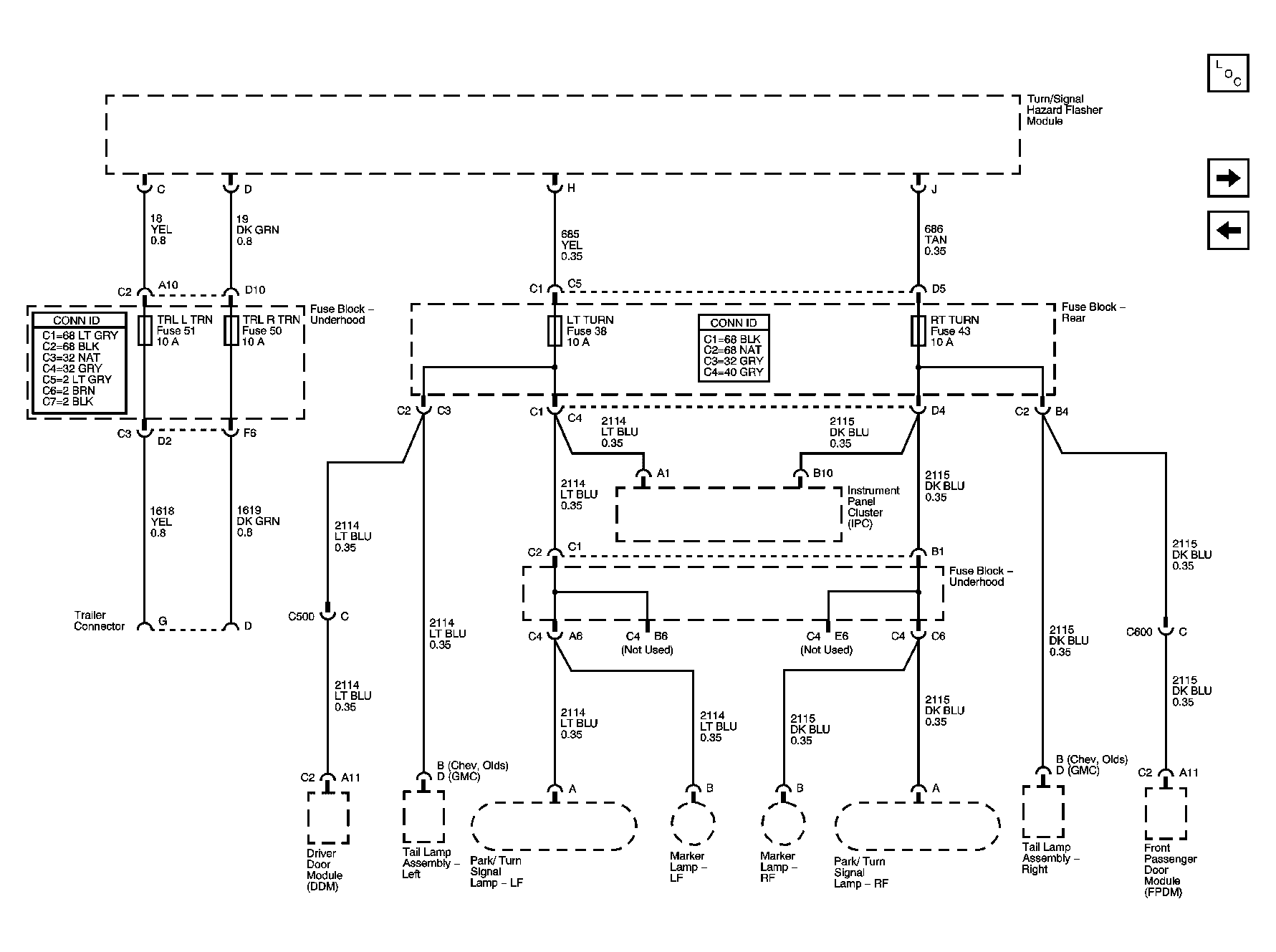

Fig 11: TRL L TRN, TRL R TRN, LT TURN, & RT TURN Fuses Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 12: IGN 0, TBC IG, TBC ACC, FRT WPR, & RAIN Fuse Schematic

Courtesy of GENERAL MOTORS CORP.

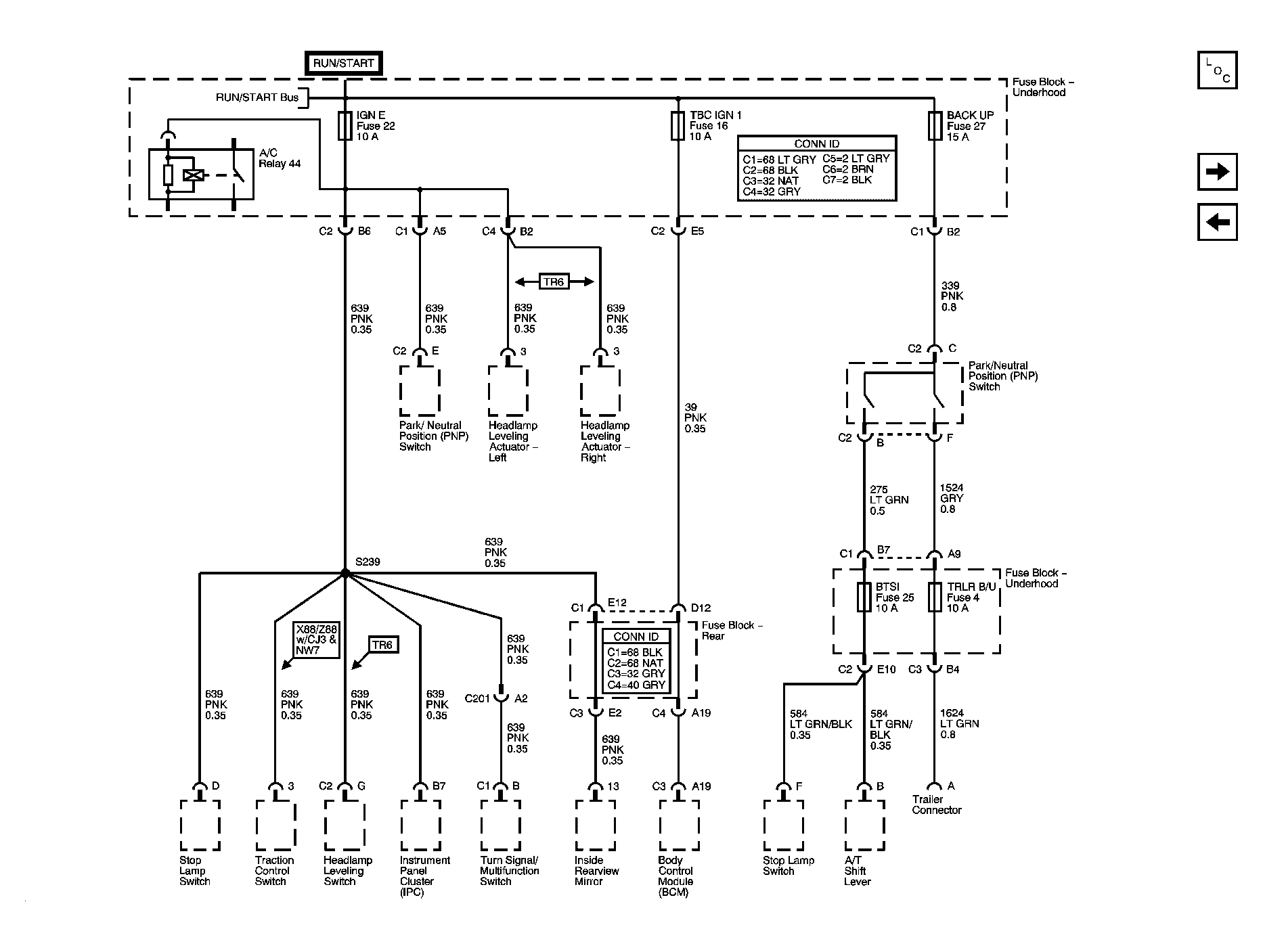

Fig 13: IGN E, TBC IGN 1, BACK UP, BTSI, & TRLR B/U Fuses Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 14: PCM I Fuse Schematic

Courtesy of GENERAL MOTORS CORP.

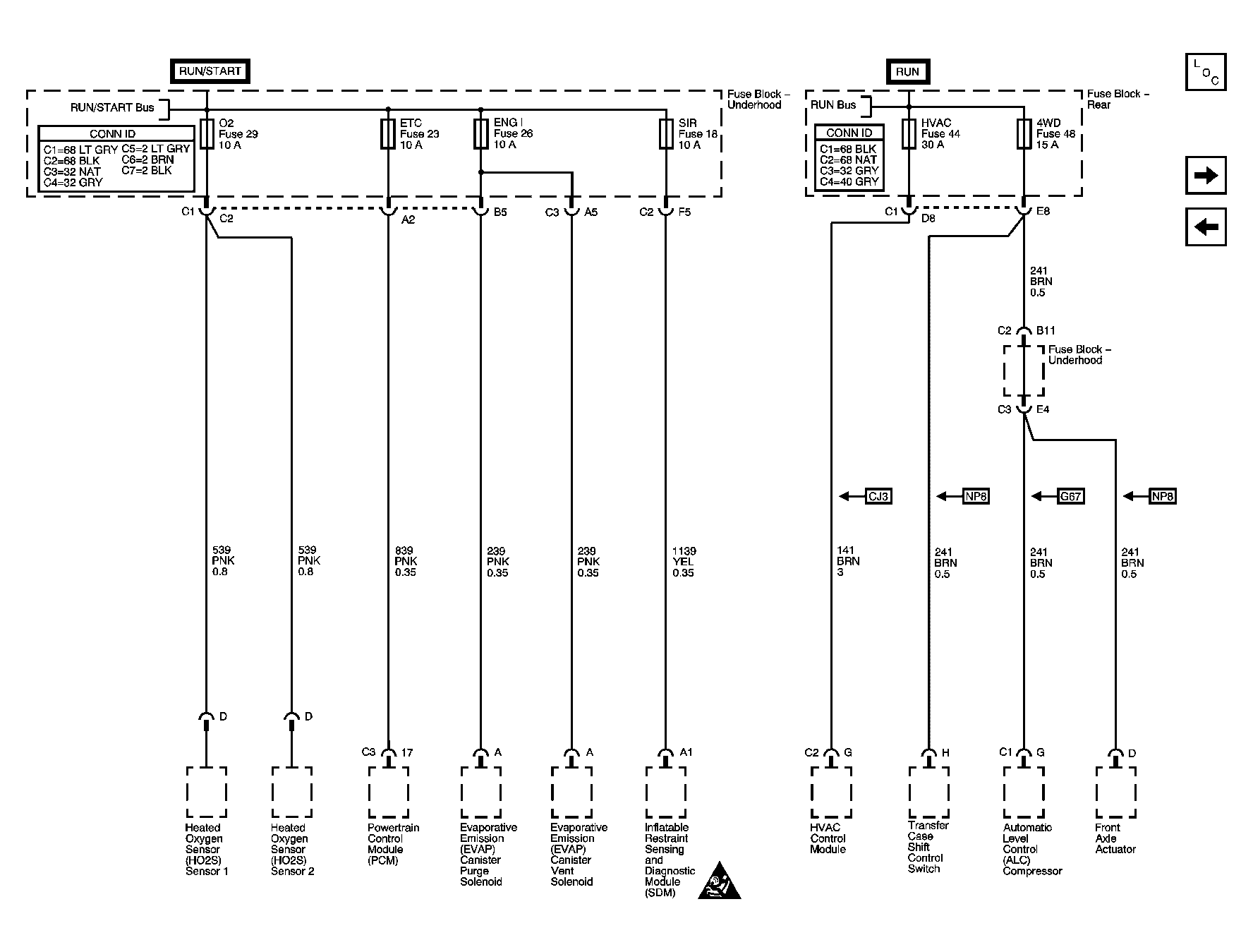

Fig 15: O2, ETC, ENG I, SIR, HVAC, & 4WD Fuses Schematic

Courtesy of GENERAL MOTORS CORP.

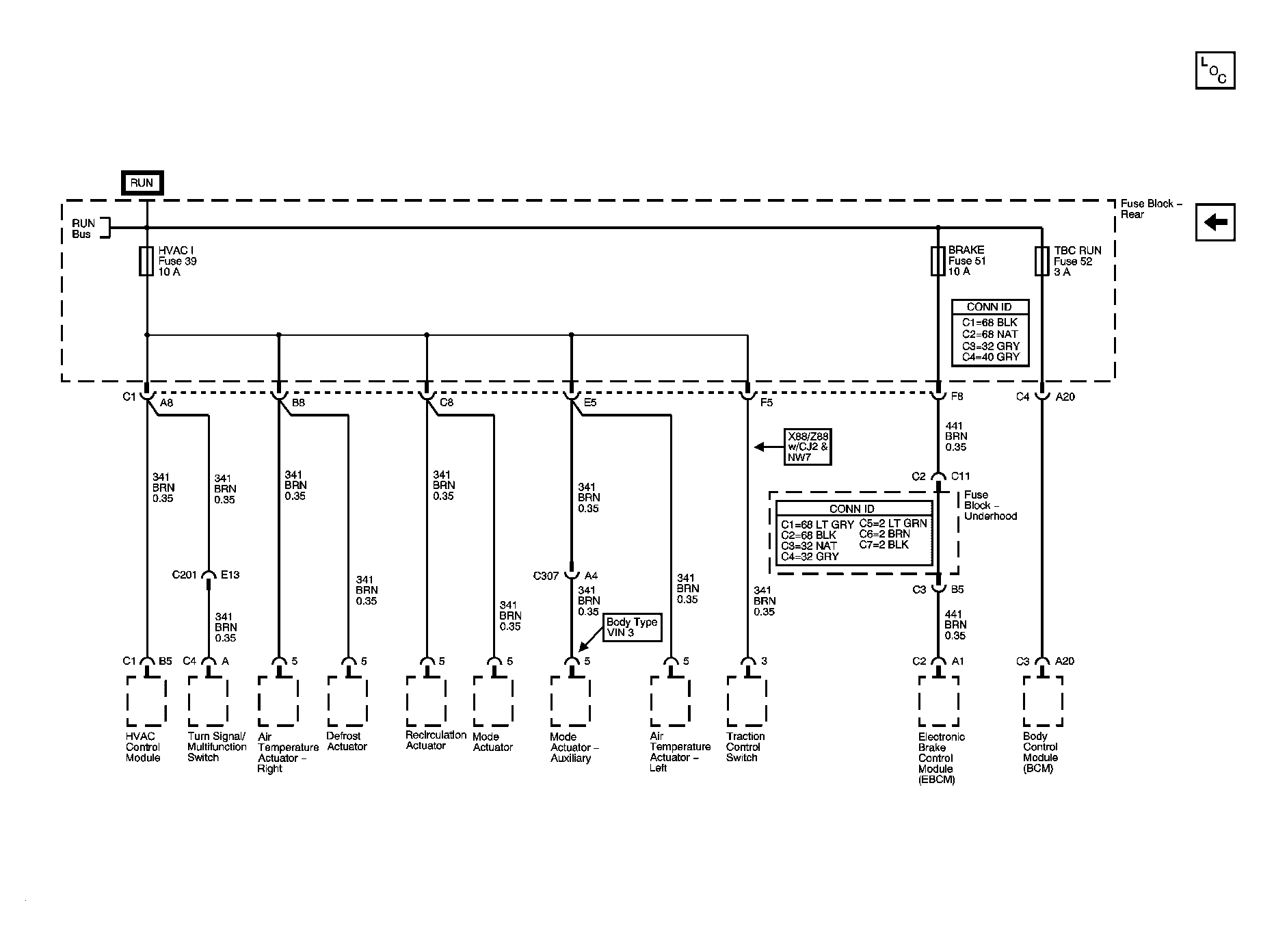

Fig 16: HVAC I, BRAKE, & TBC RUN Fuses Schematic

Courtesy of GENERAL MOTORS CORP.
