Ground Distribution Schematics

WARNING: This page is about a different car, the 2002 Oldsmobile Bravada, 2002 GMC Envoy XL, 2002 GMC Envoy, and 2002 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

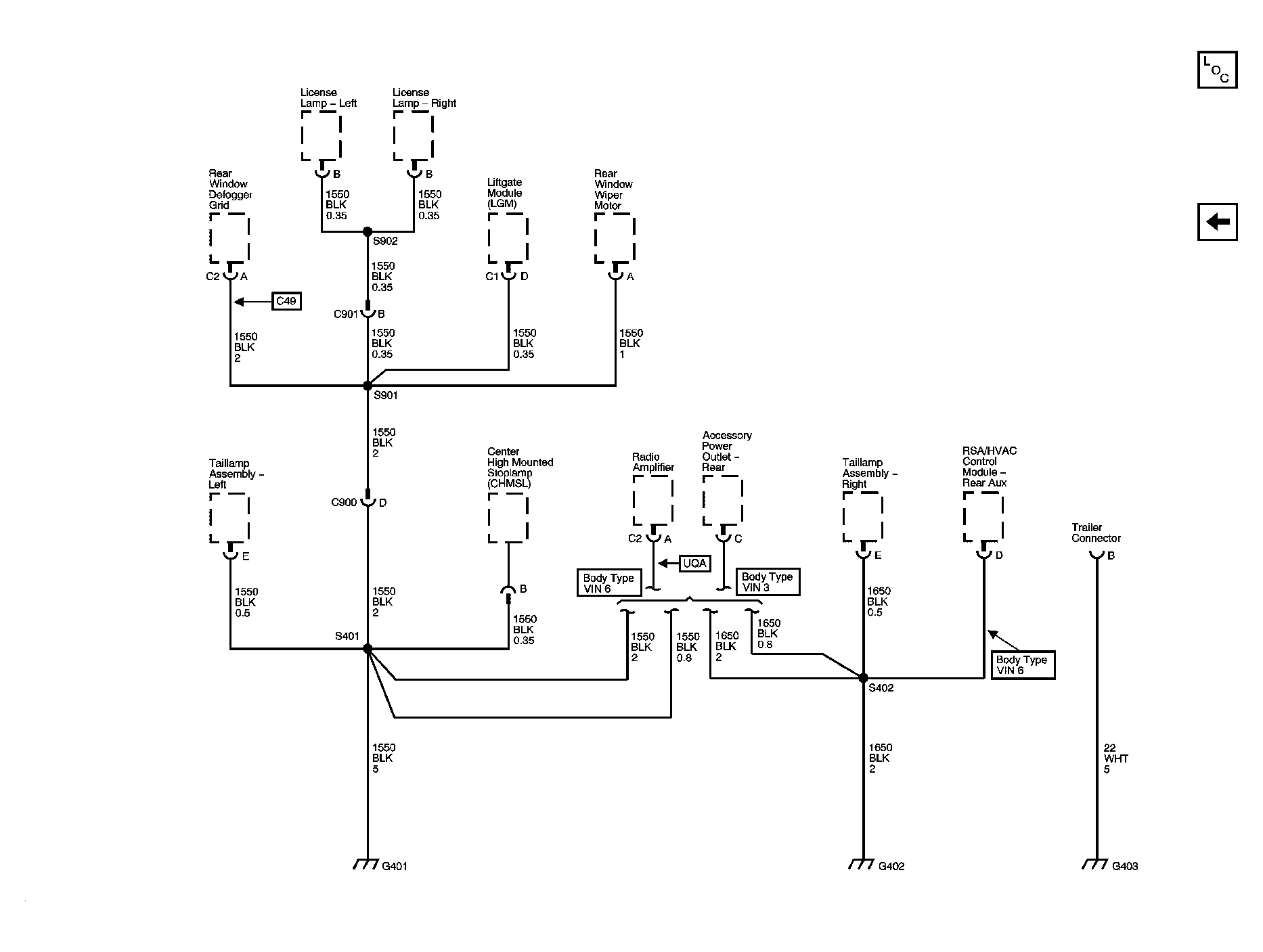

Fig 1: G101, G103, G106, & G110 Schematic

Courtesy of GENERAL MOTORS CORP.

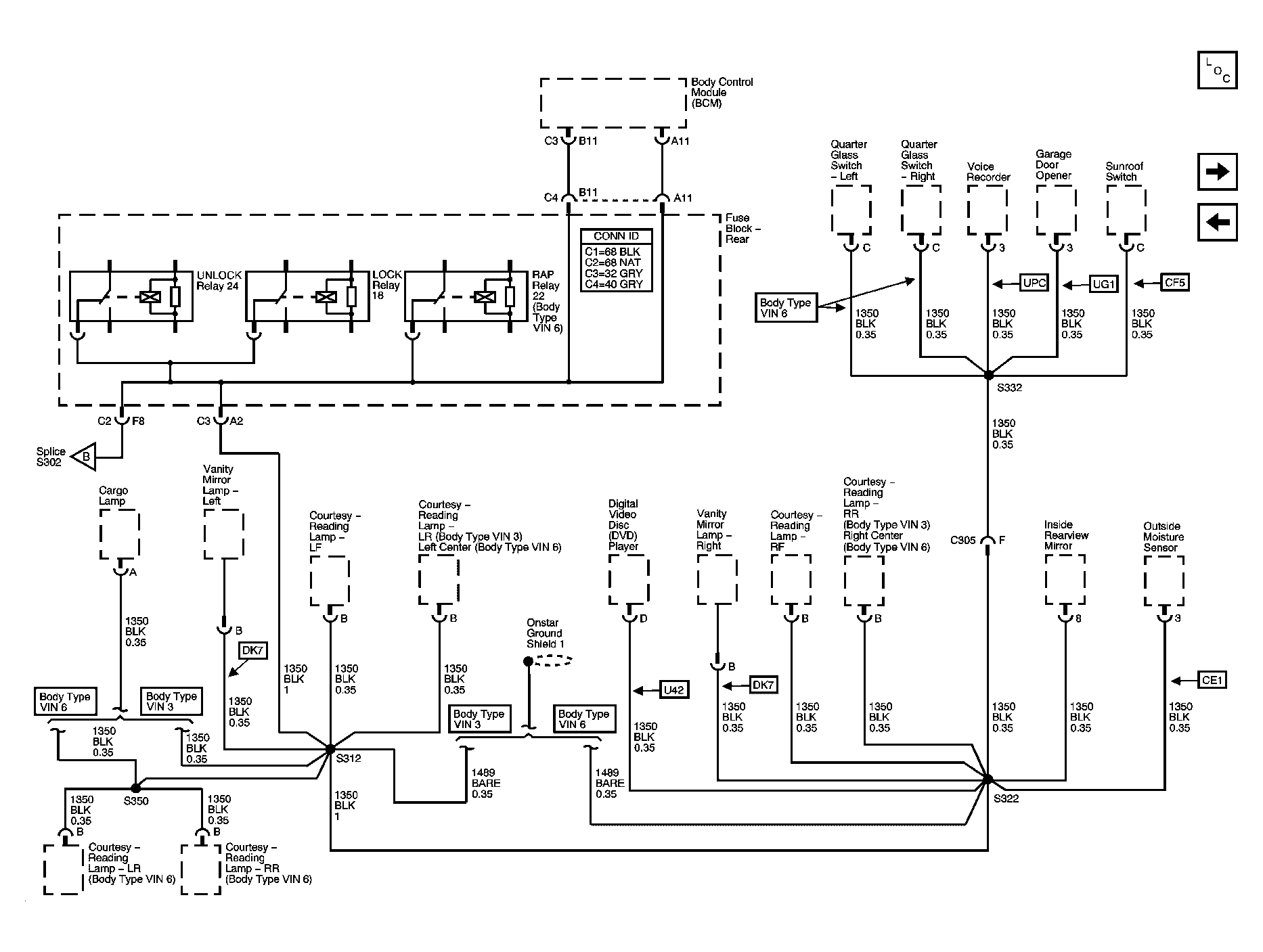

Fig 2: G102, G104, G105, & G109 Schematic

Courtesy of GENERAL MOTORS CORP.

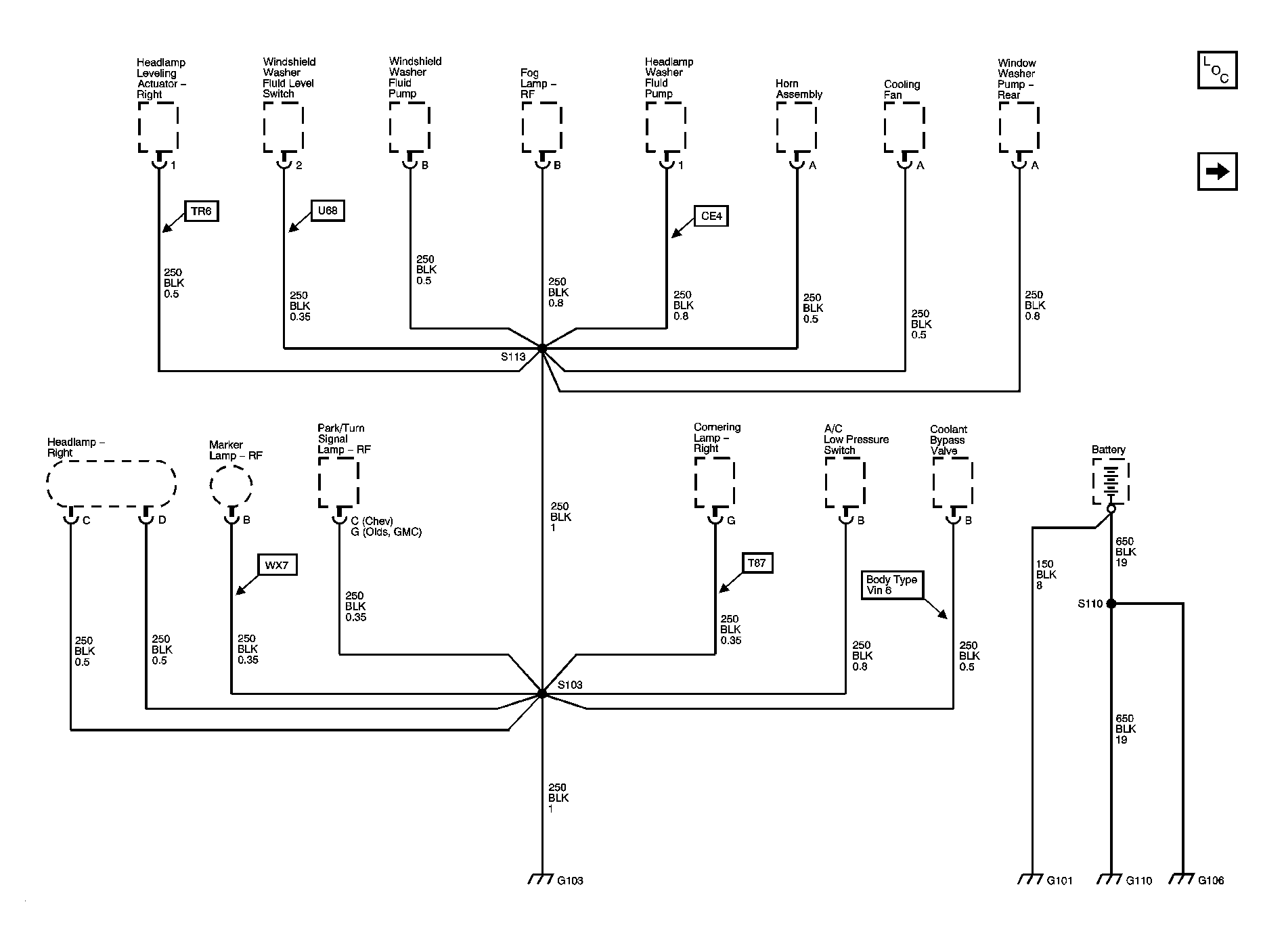

Fig 3: G107 & G108 Schematic

Courtesy of GENERAL MOTORS CORP.

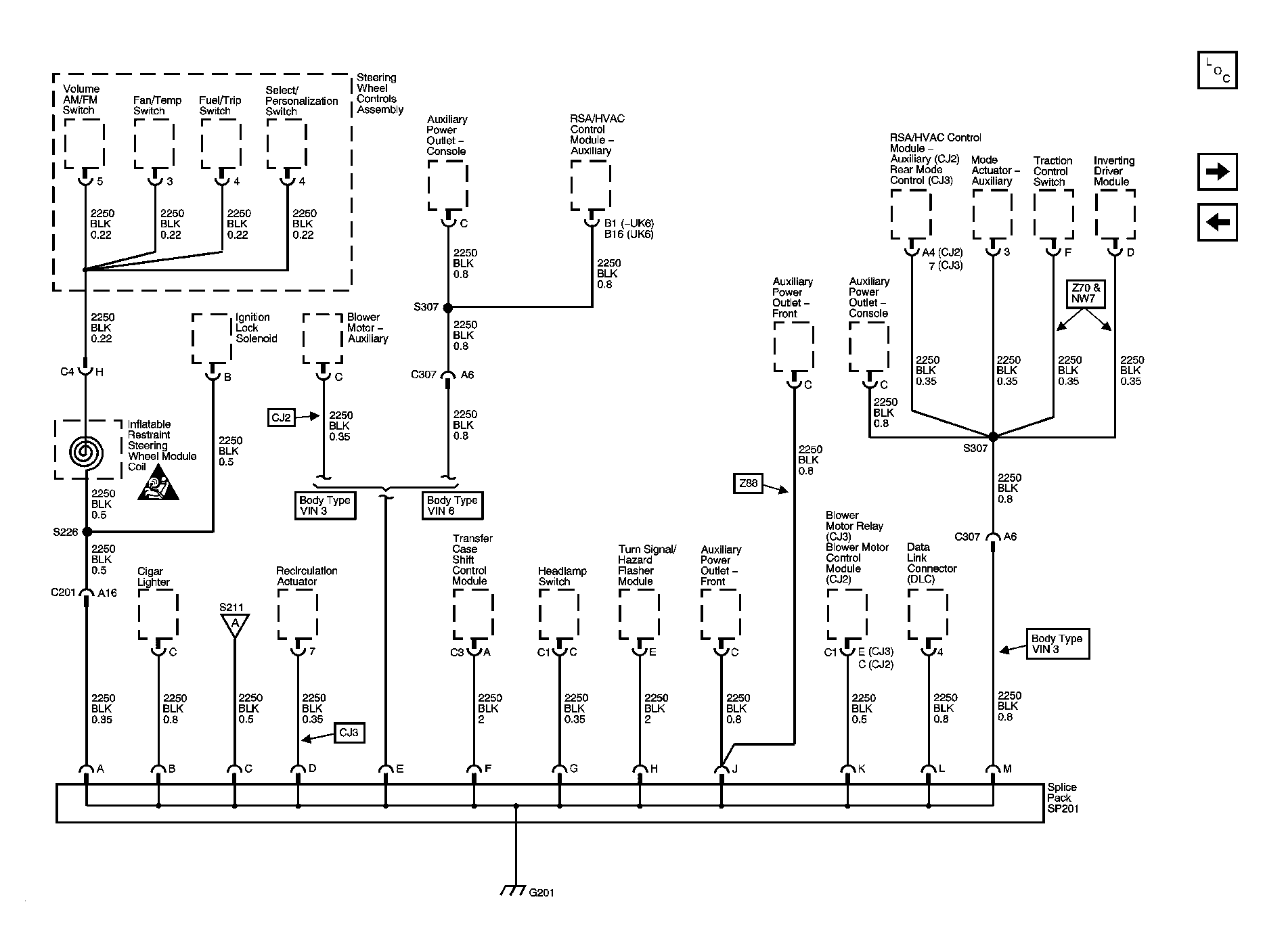

Fig 4: G201 Schematic - 1 of 2

Courtesy of GENERAL MOTORS CORP.

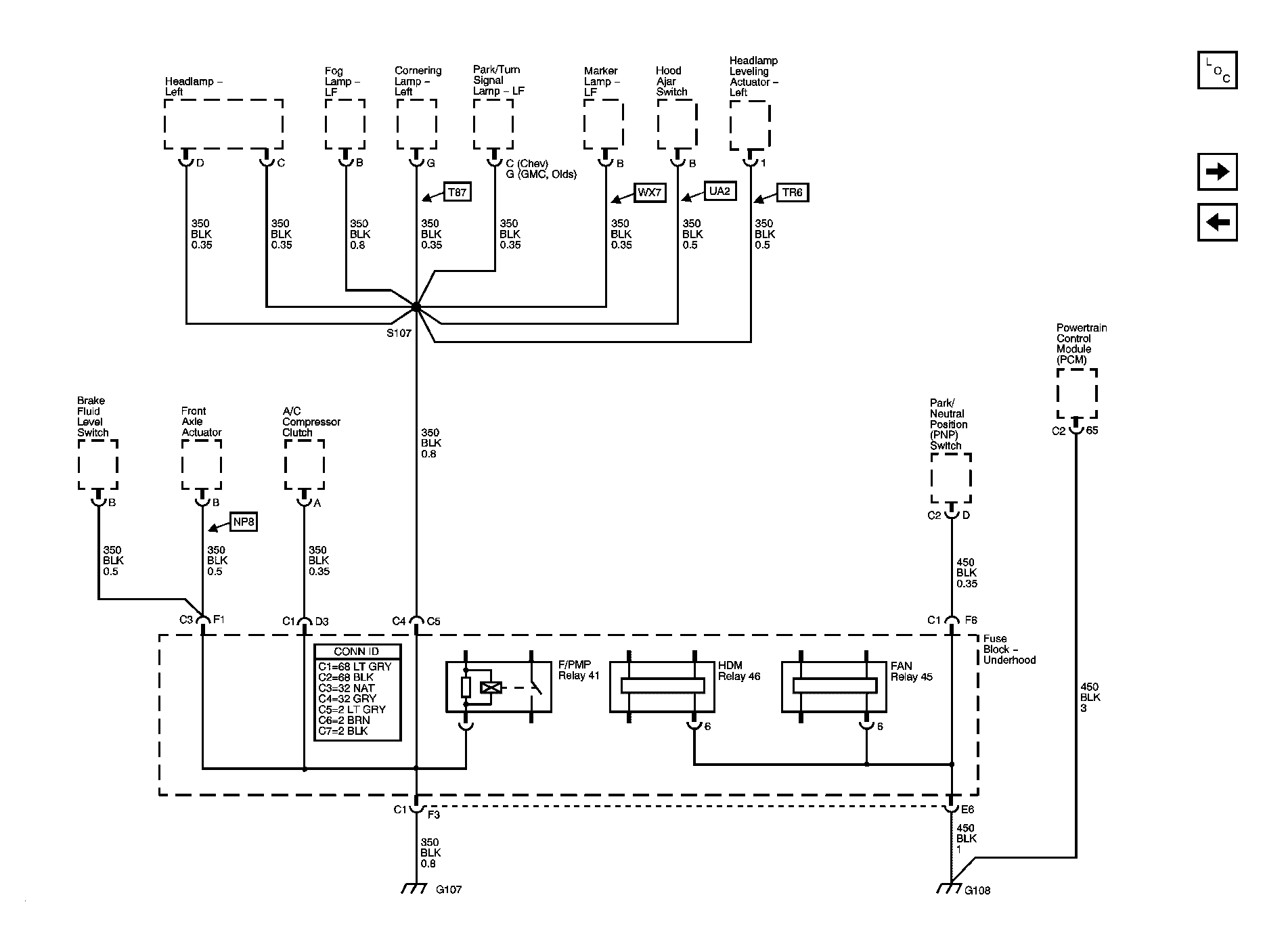

Fig 5: G201 Schematic - 2 of 2, G305, & G306

Courtesy of GENERAL MOTORS CORP.

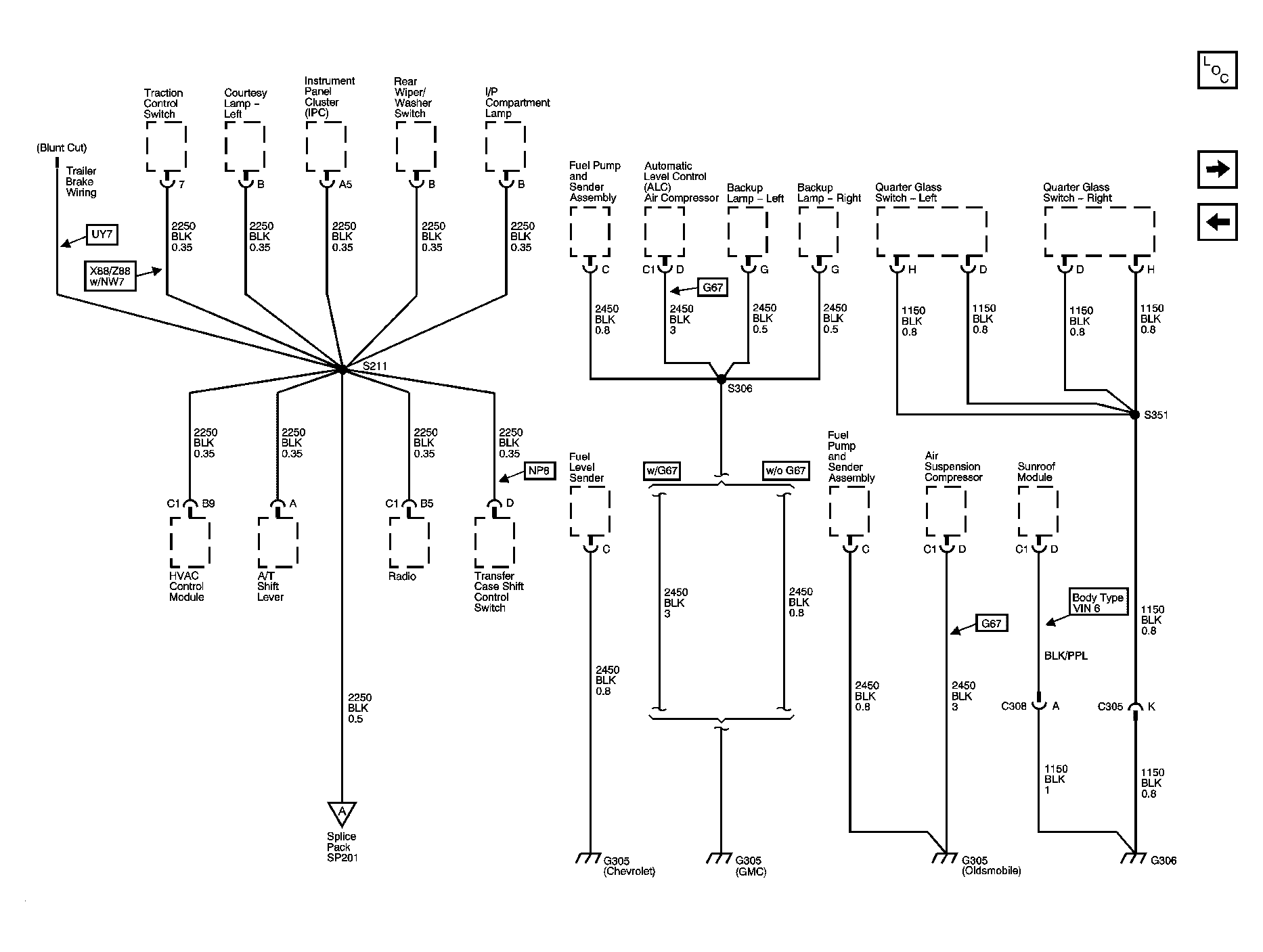

Fig 6: G302 - 1 of 2, G303, & G304 Schematics

Courtesy of GENERAL MOTORS CORP.

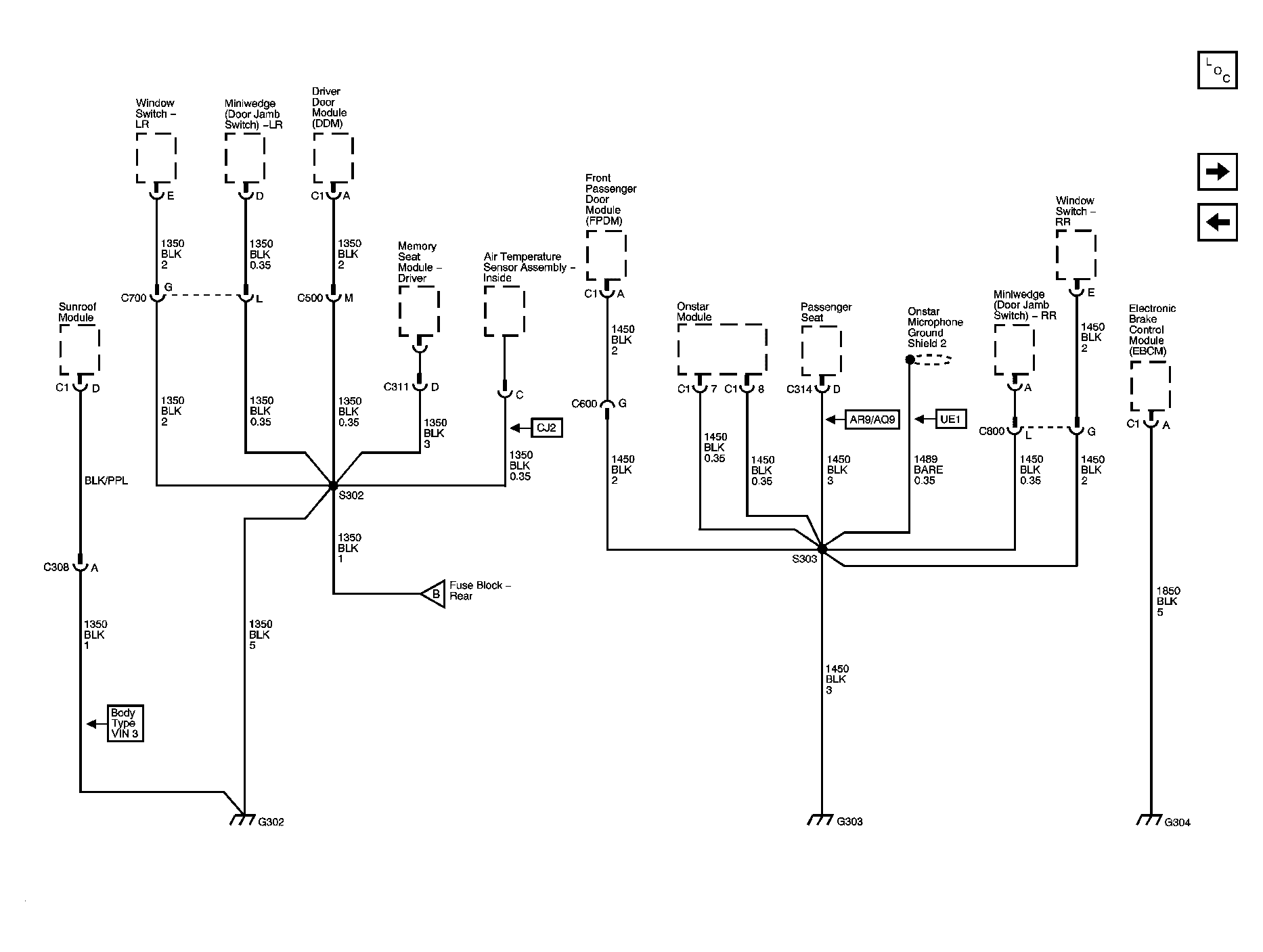

Fig 7: G302 Schematic - 2 of 2

Courtesy of GENERAL MOTORS CORP.

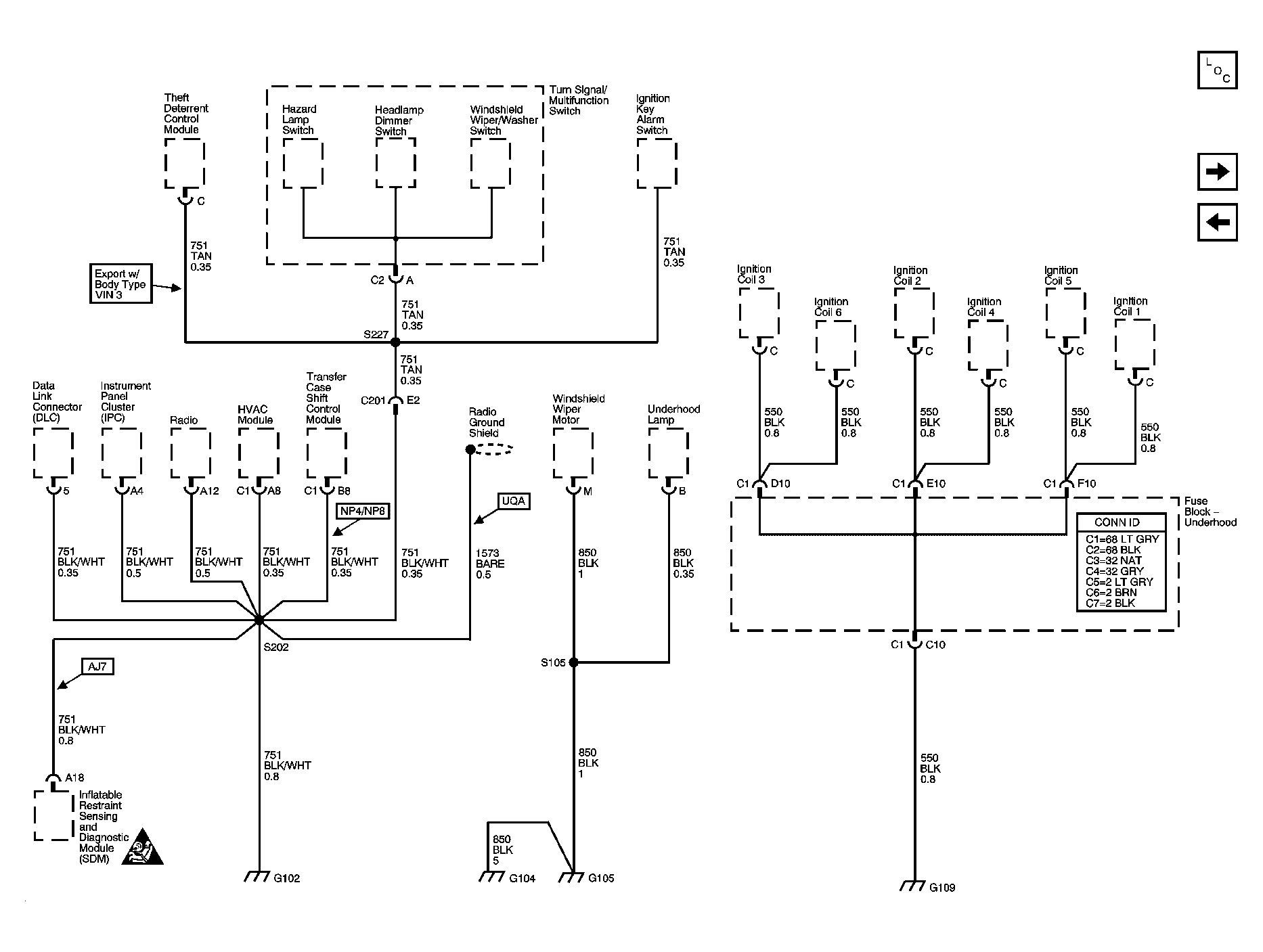

Fig 8: G401, G402, & G403 Schematic

Courtesy of GENERAL MOTORS CORP.
