Power and Grounding Component Views

WARNING: This page is about a different car, the 2002 Oldsmobile Bravada, 2002 GMC Envoy XL, 2002 GMC Envoy, and 2002 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

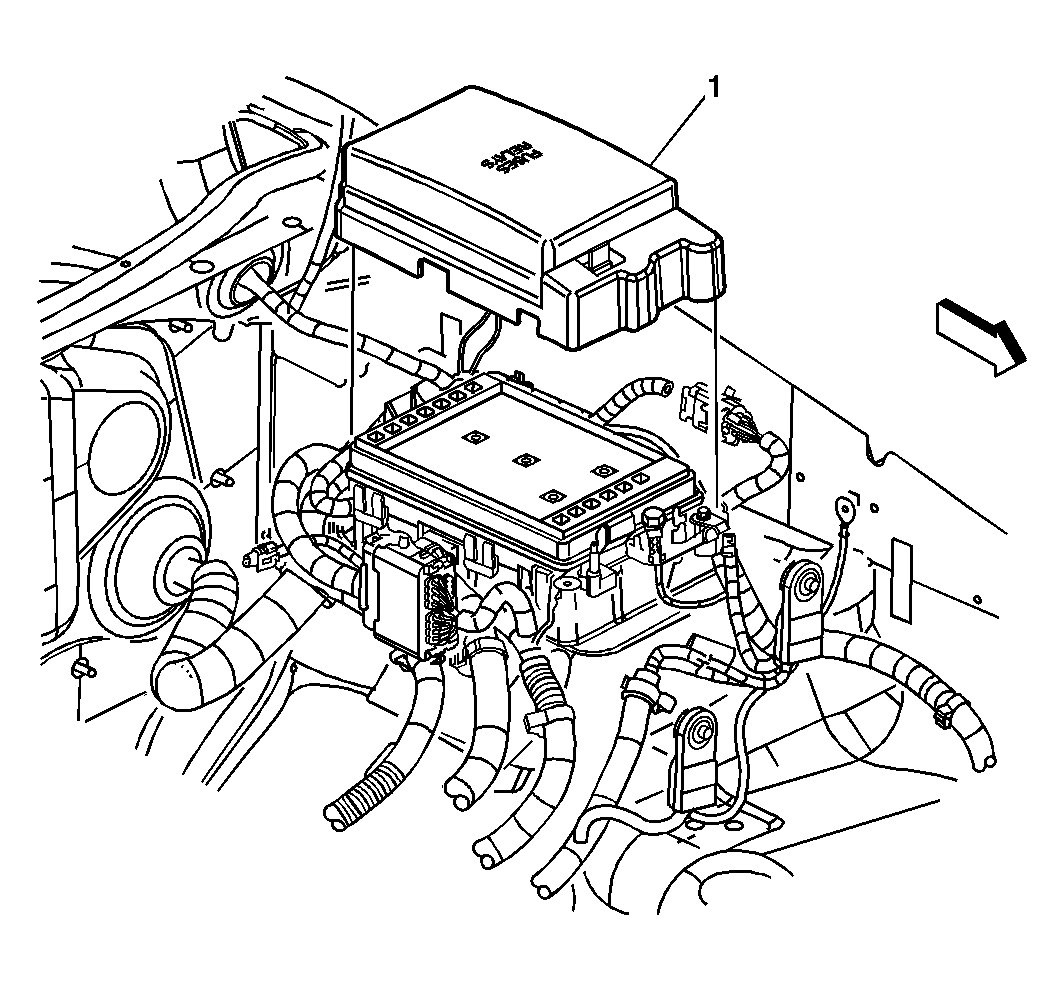

Fig 1: Fuse Block-Underhood Component View
GM750749Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Fuse Block-Underhood

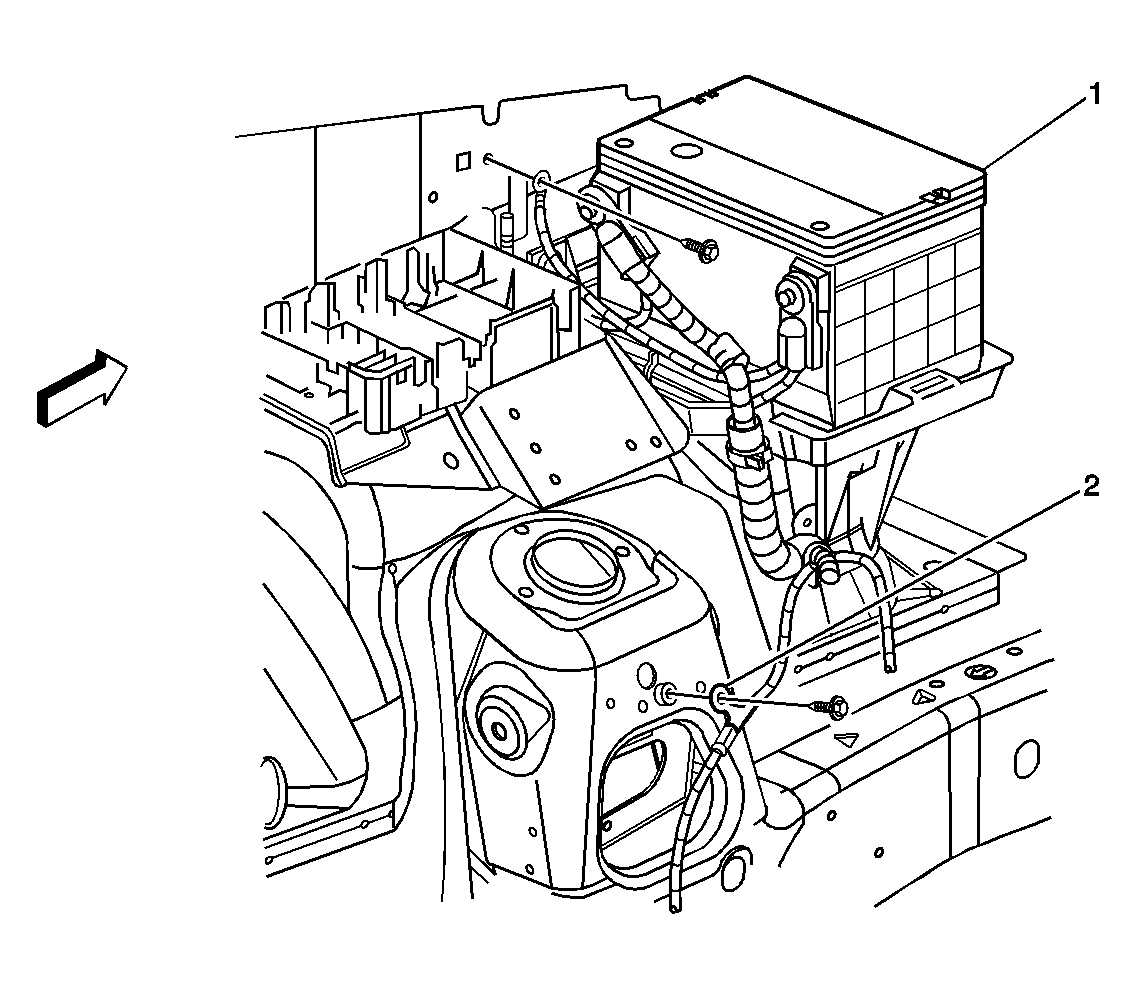

Fig 2: Battery, G106 Component View
GM750750Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Battery
2 G106

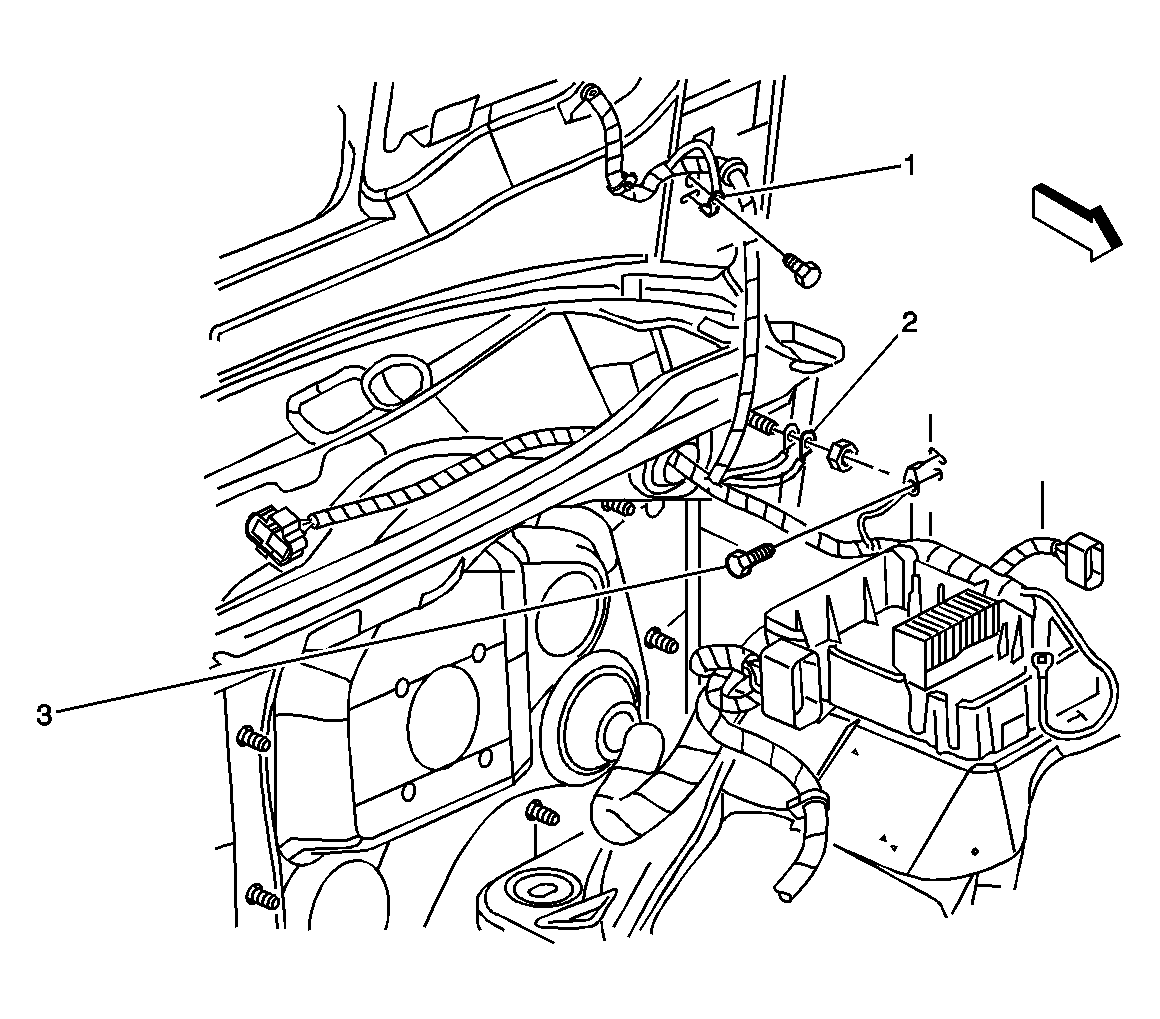

Fig 3: Underhood Grounds-Left, G102, G104, G105 Component View
GM750751Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 G104
2 G105
3 G102

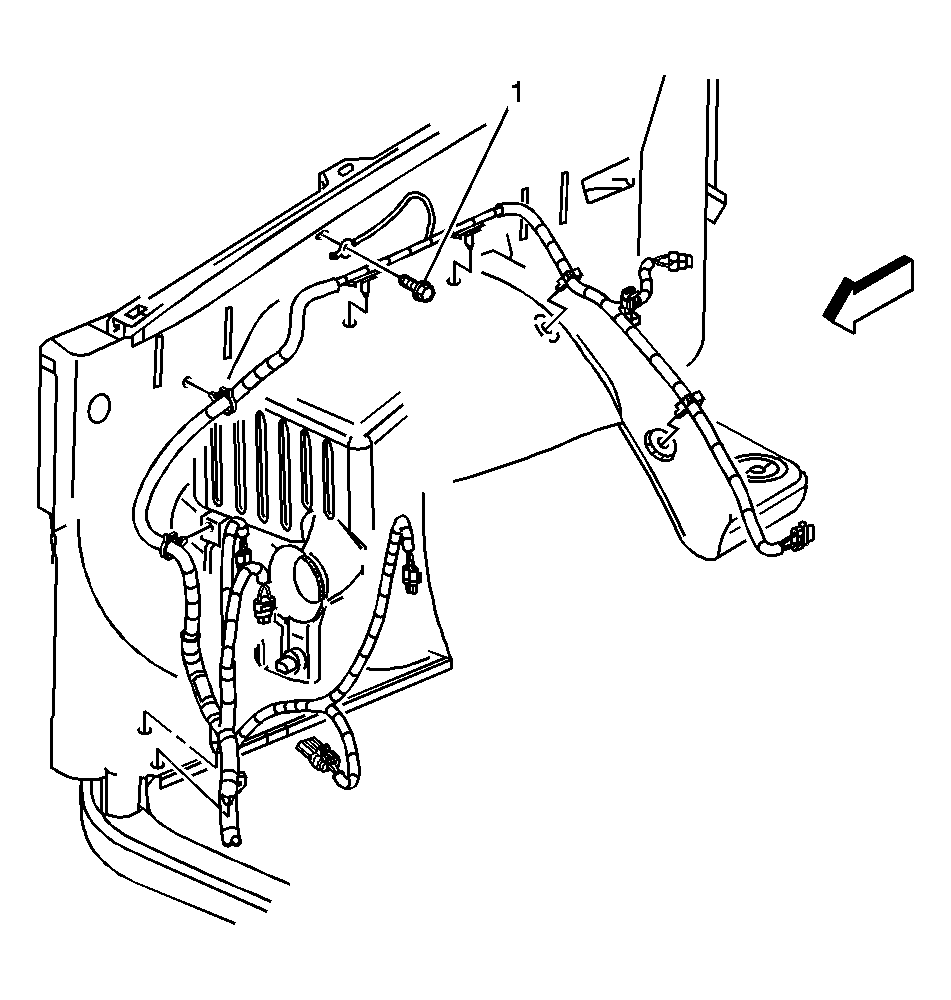

Fig 4: Underhood Ground-Right, G103 Component View
GM750753Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 G103

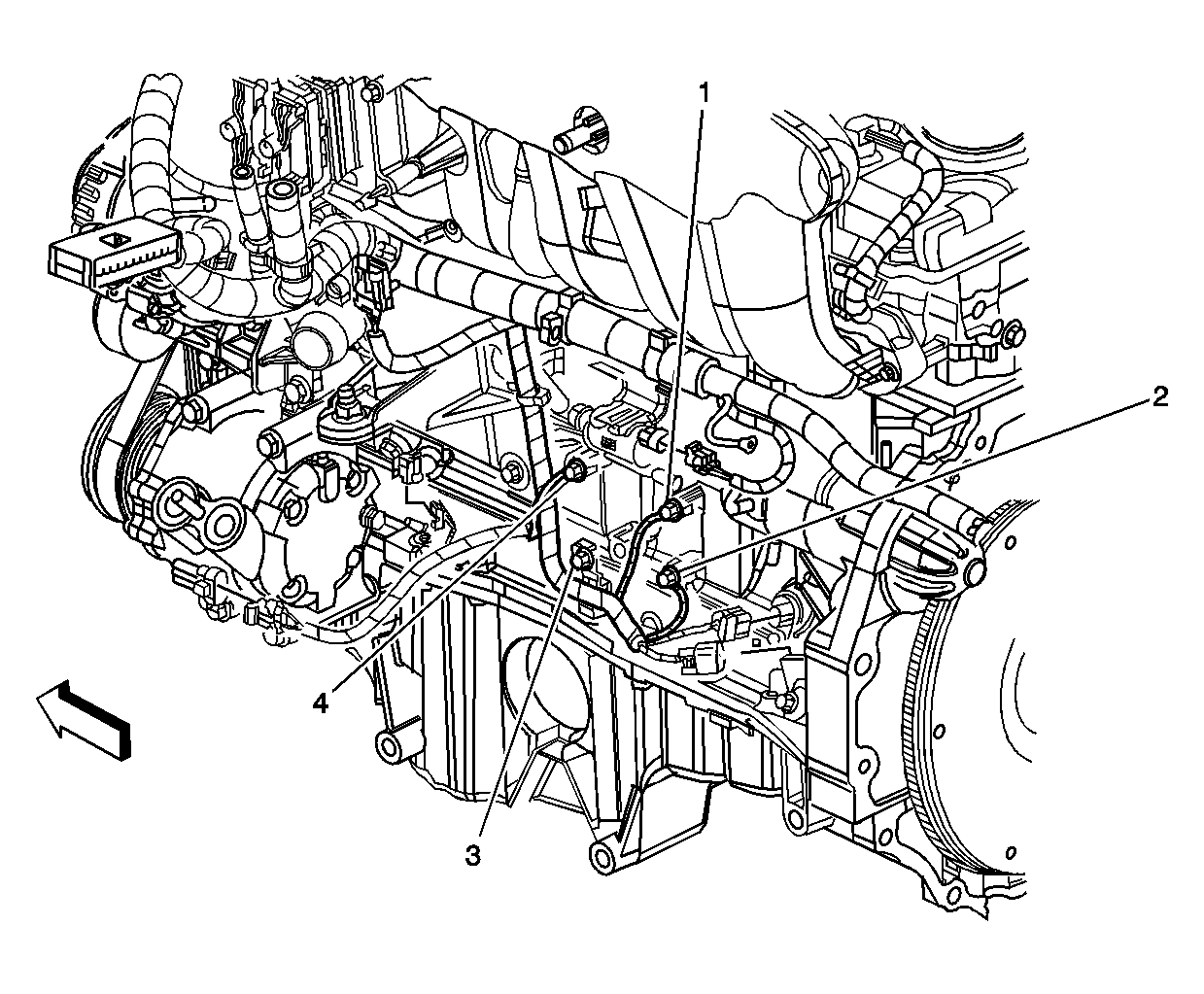

Fig 5: Engine Block Grounds-G107, G108, G109, G110 Component View
GM750754Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 G108
2 G109
3 G110
4 G107

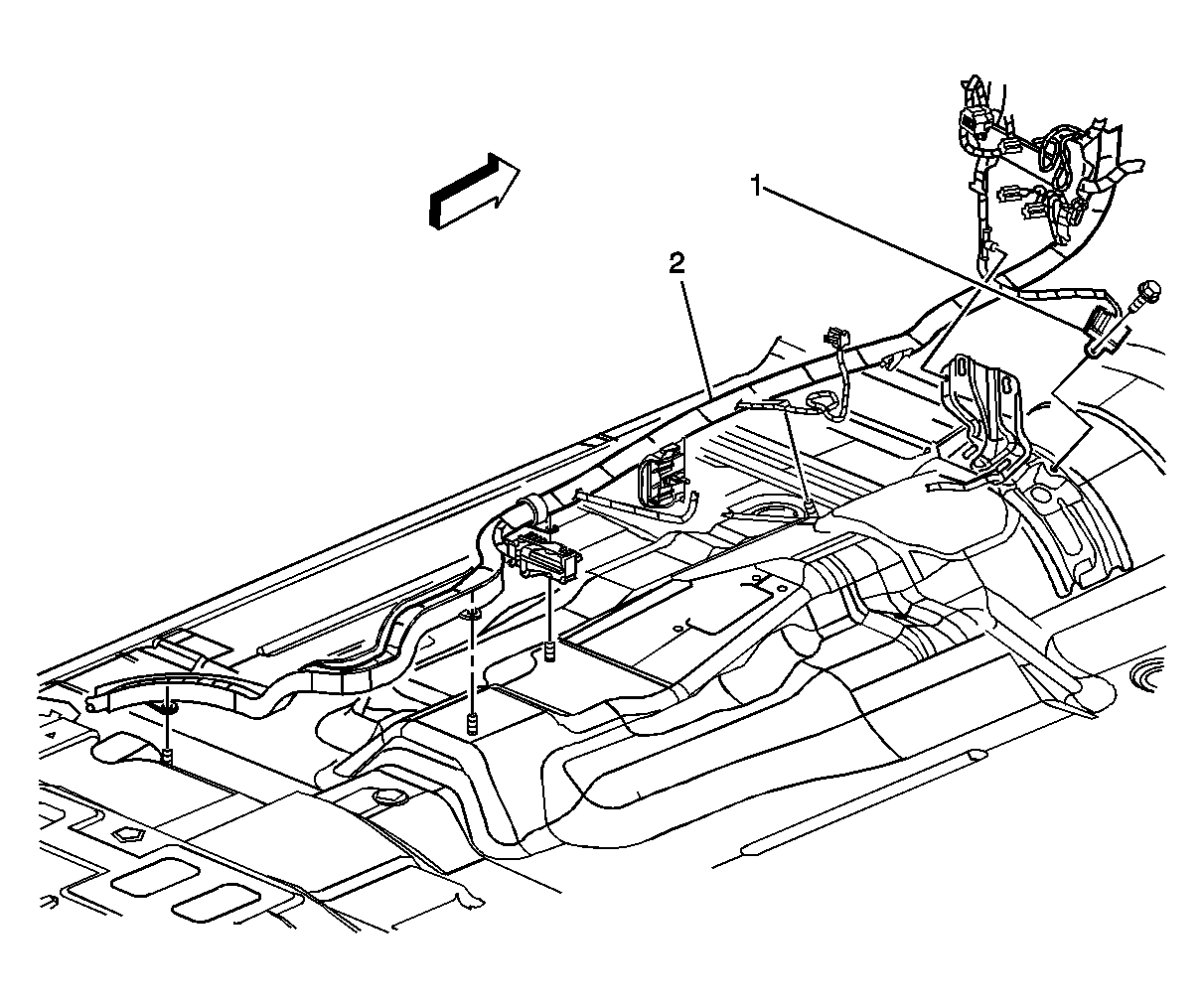

Fig 6: Ground Splice Pack, SP201 Component View
GM750755Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 SP201
2 Instrument Panel Harness
Fig 7: Ignition Switch Component View
GM900962Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Ignition Switch
2 Passlock Sensor
3 Ignition Key Alarm Switch
4 Ignition Lock Cylinder Control Actuator
5 Steering Column

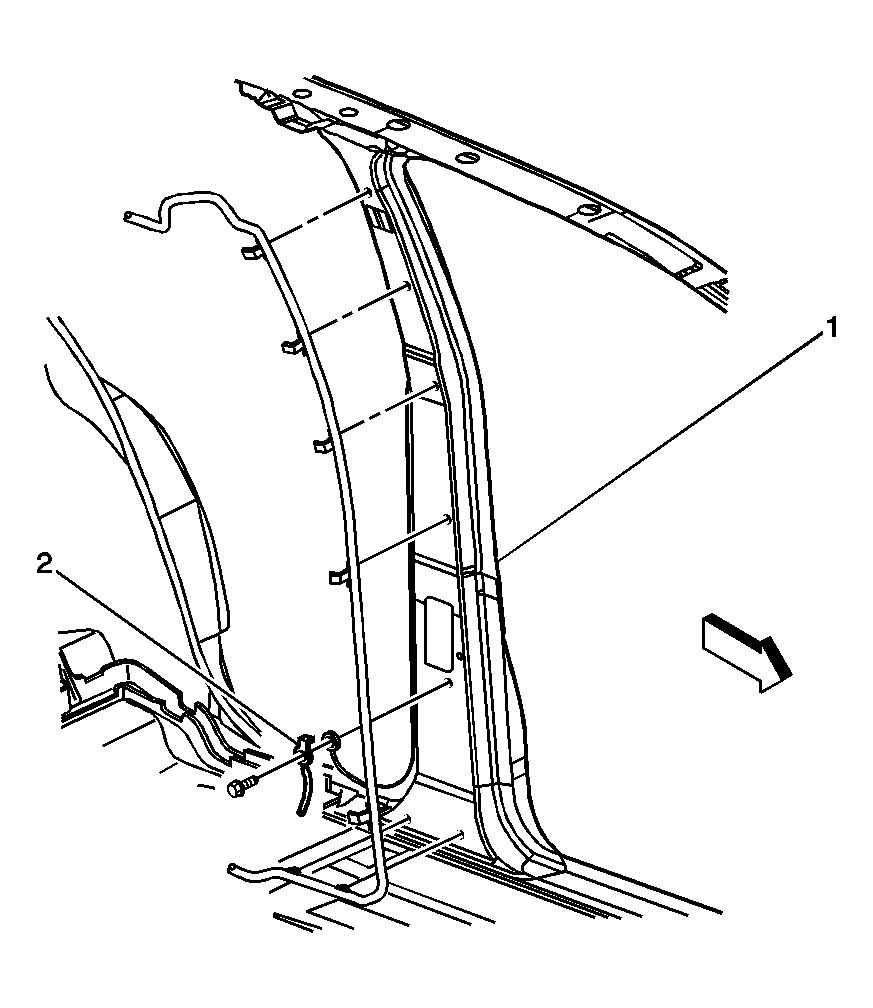

Fig 8: B-Pillar, Left - G302 Component View
GM750756Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Door Frame
2 G302

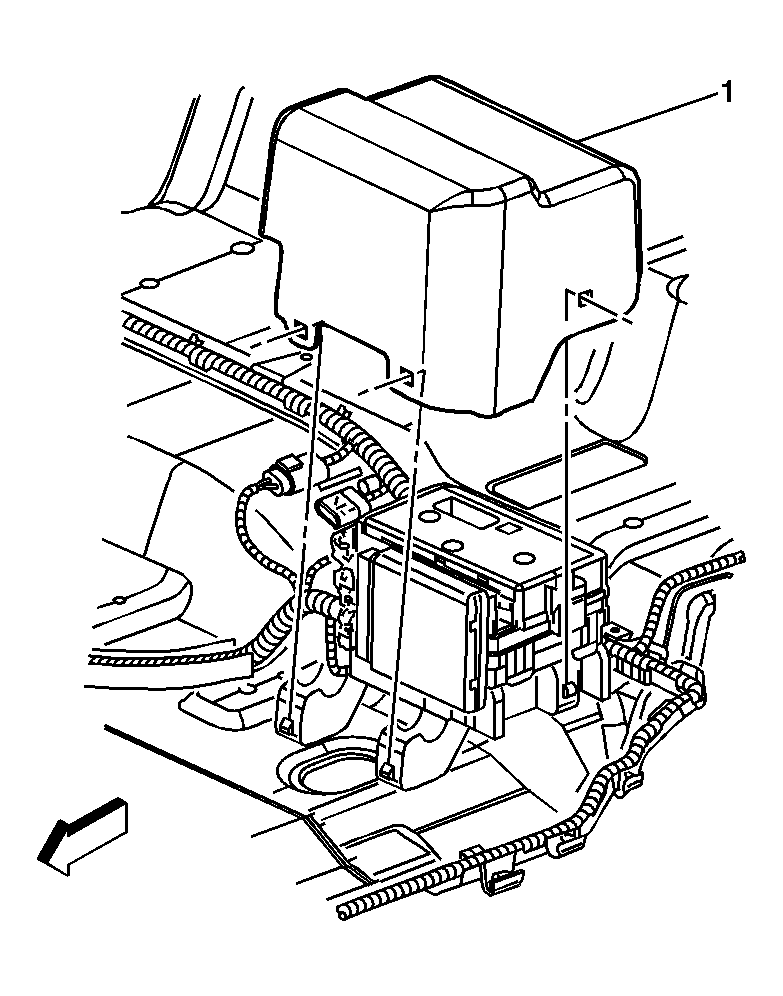

Fig 9: Fuse Block - Rear Component View
GM750757Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Fuse Block-Rear

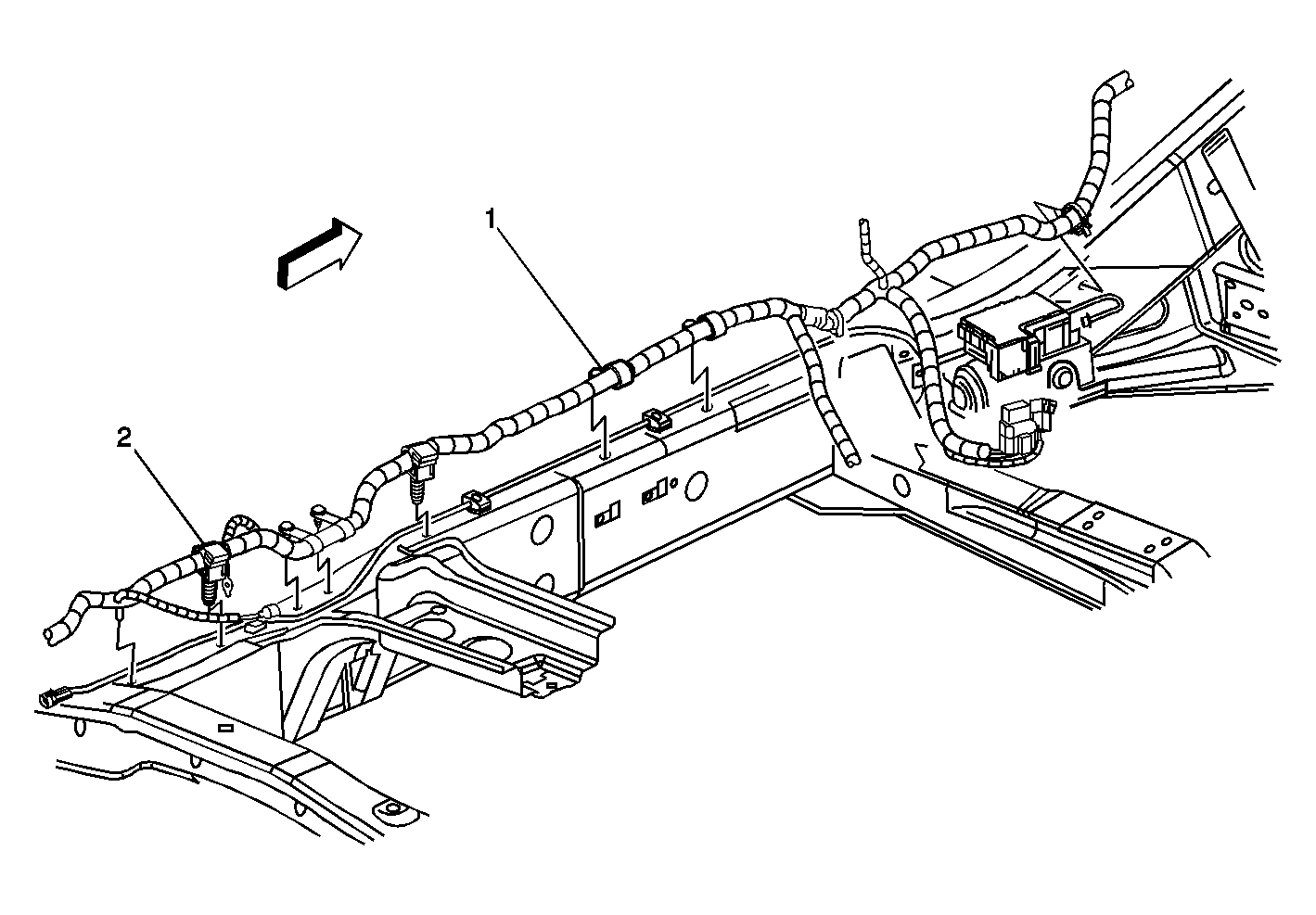

Fig 10: G304 Component View
GM750760Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Chassis Harness
2 G304

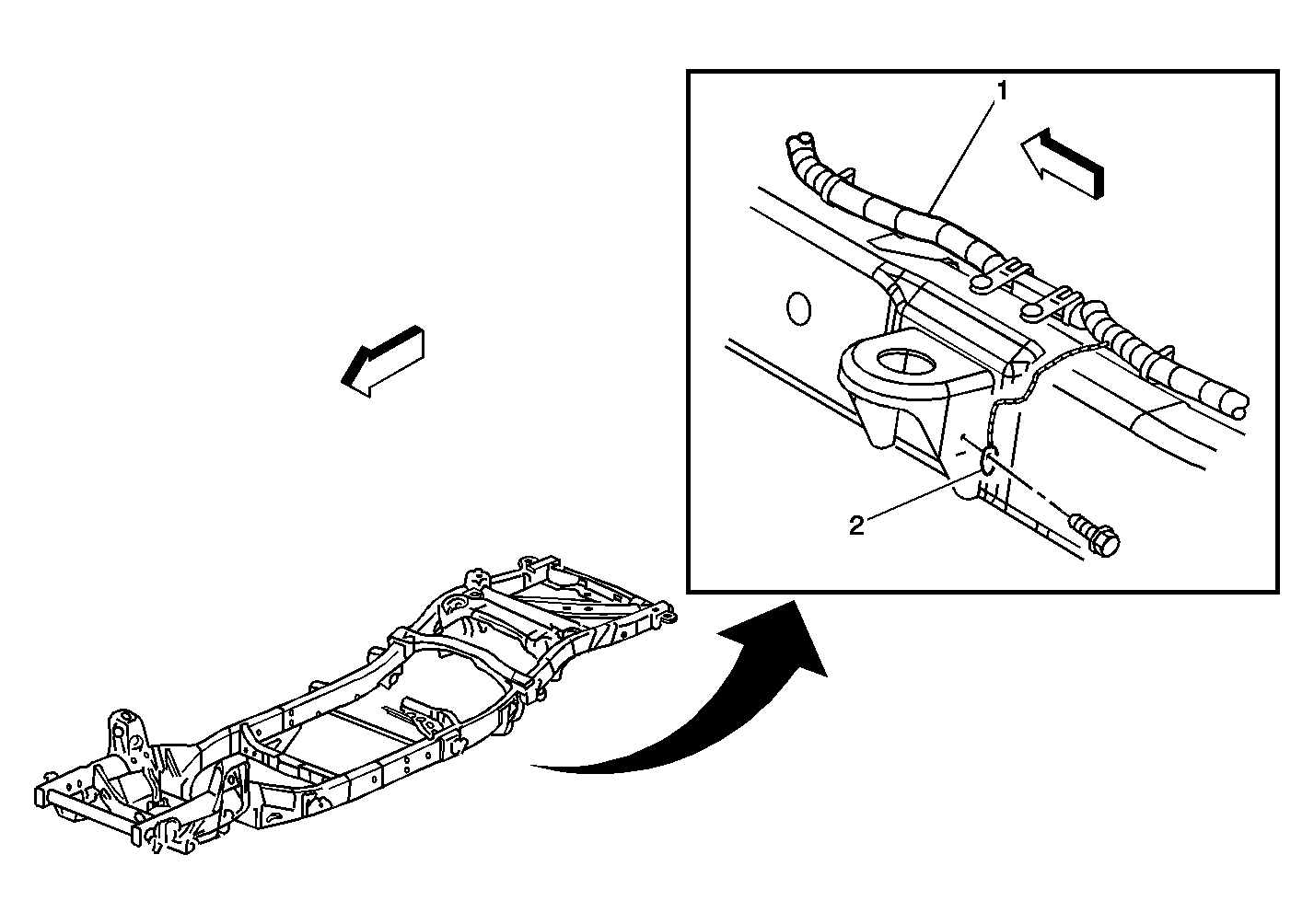

Fig 11: Frame, Left - G305 Component View
GM750762Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Chassis Harness
2 G305

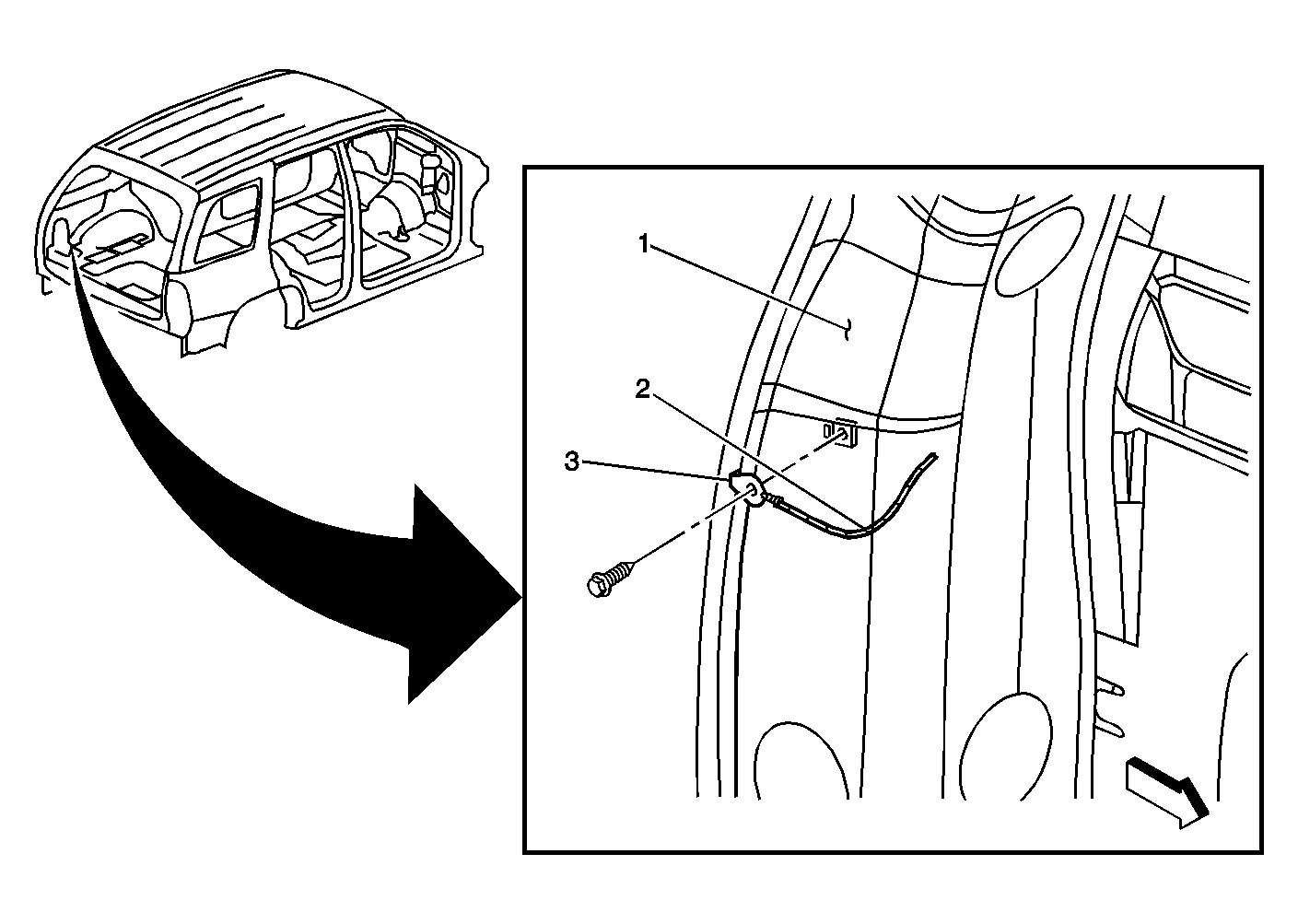

Fig 12: G401, G402 Component View
GM826159Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Body Side Lower Reinforcement
2 Body Harness
3 G401; G402 Similar on Opposite Side

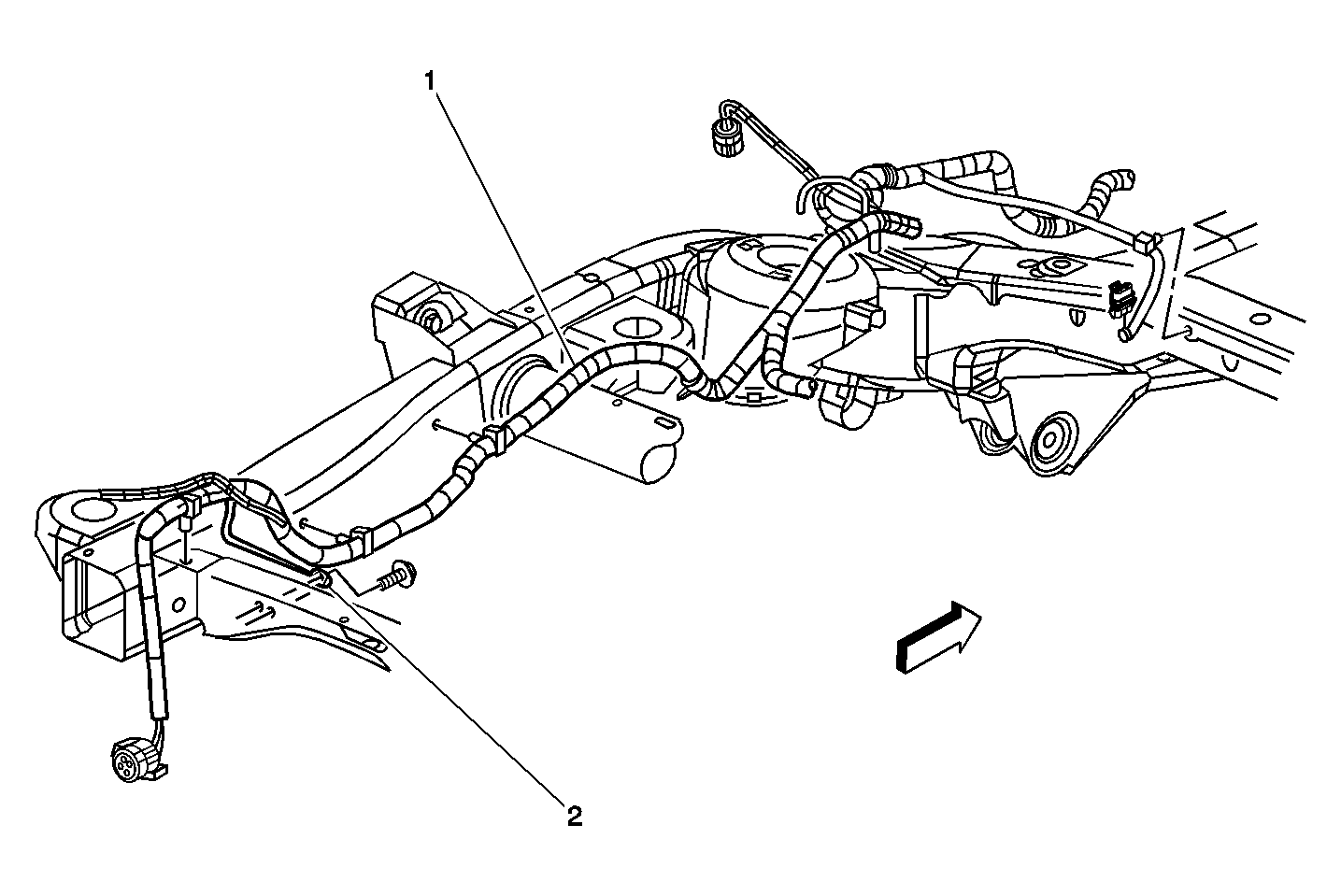

Fig 13: Frame, Rear - G403 - Short Wheelbase, Body Type VIN 3 Component View
GM750763Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Chassis Harness
2 G403-Short Wheelbase

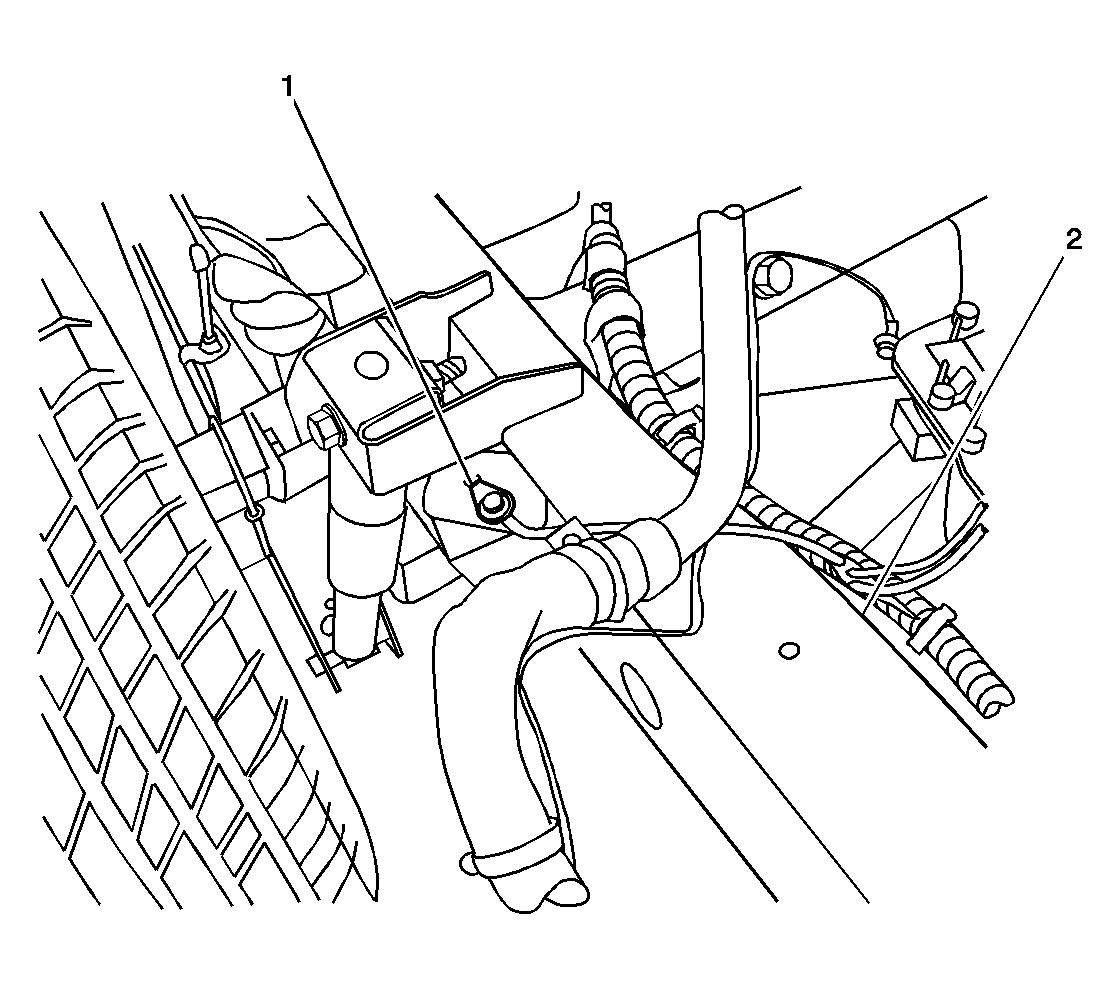

Fig 14: G403 - Long Wheelbase, Body Type VIN 6 Component View
GM826161Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 G403
2 Frame, Left Rear

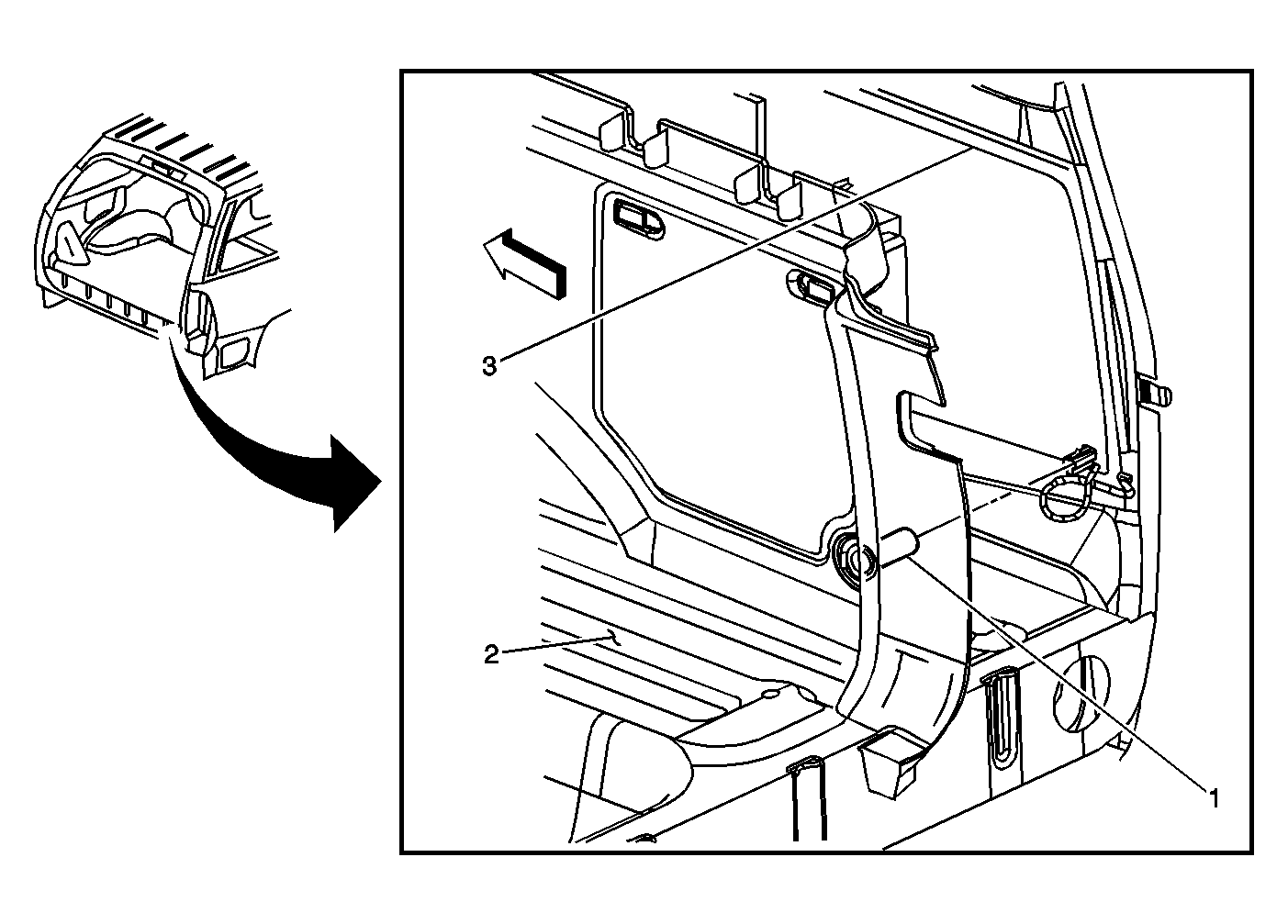

Fig 15: Right Rear Body Side Panel-Short Wheelbase, Body Type VIN 3 Component View
GM825550Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Auxiliary Power Outlet-Rear
2 Rear Floor
3 Body Side Inner Panel

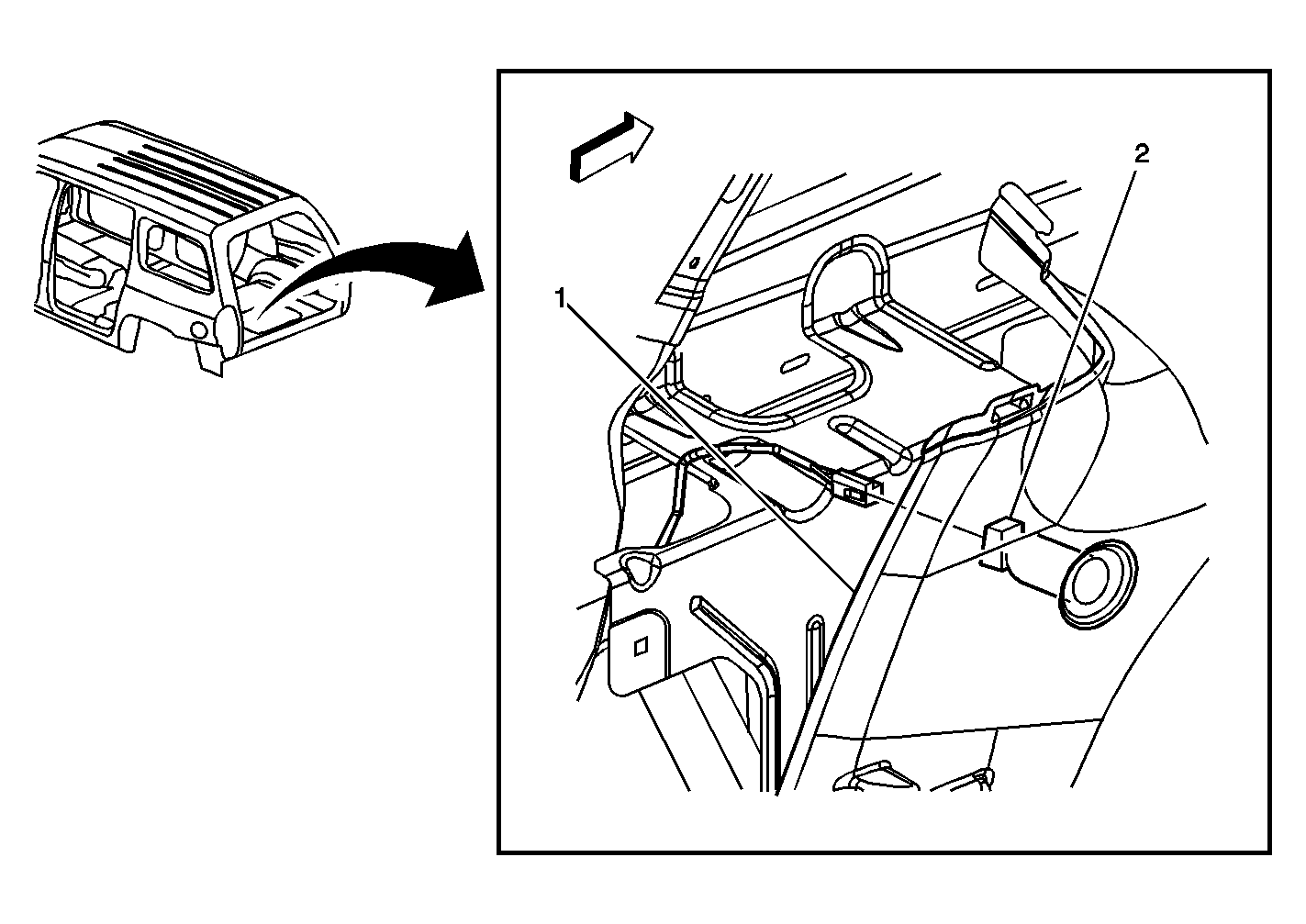

Fig 16: Left Rear Body Side Panel-Long Wheelbase, Body Type VIN 6 Component View
GM825548Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Body Side Lower Trim Panel
2 Auxiliary Power Outlet-Rear

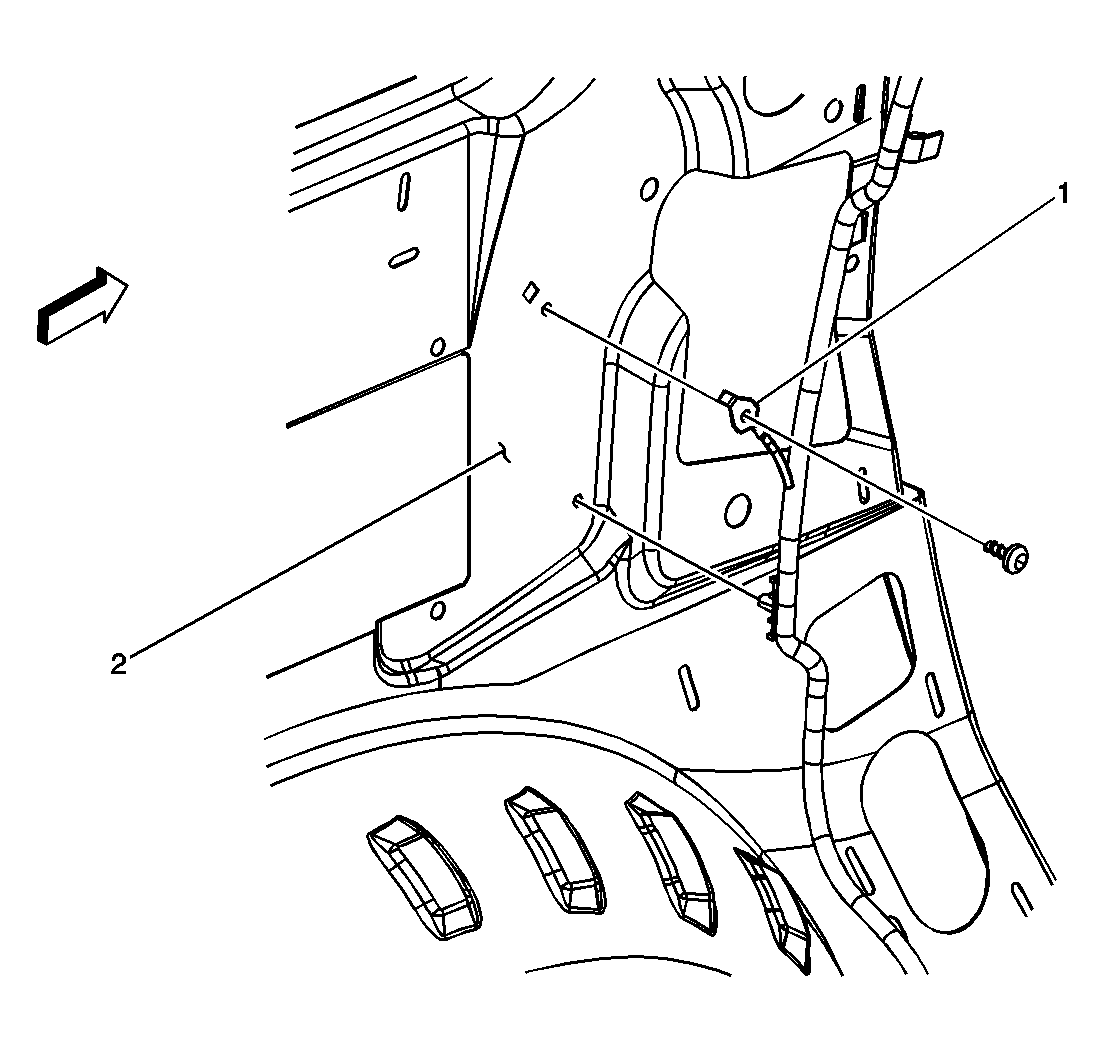

Fig 17: Body Left Side-Long Wheelbase, Body Type VIN 6 Component View
GM825646Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 G306, Headliner Harness
2 Body Side Panel-Left
