Fuse Block - Underhood, Bottom View

WARNING: This page is about a different car, the 2002 Oldsmobile Bravada, 2002 GMC Envoy XL, 2002 GMC Envoy, and 2002 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

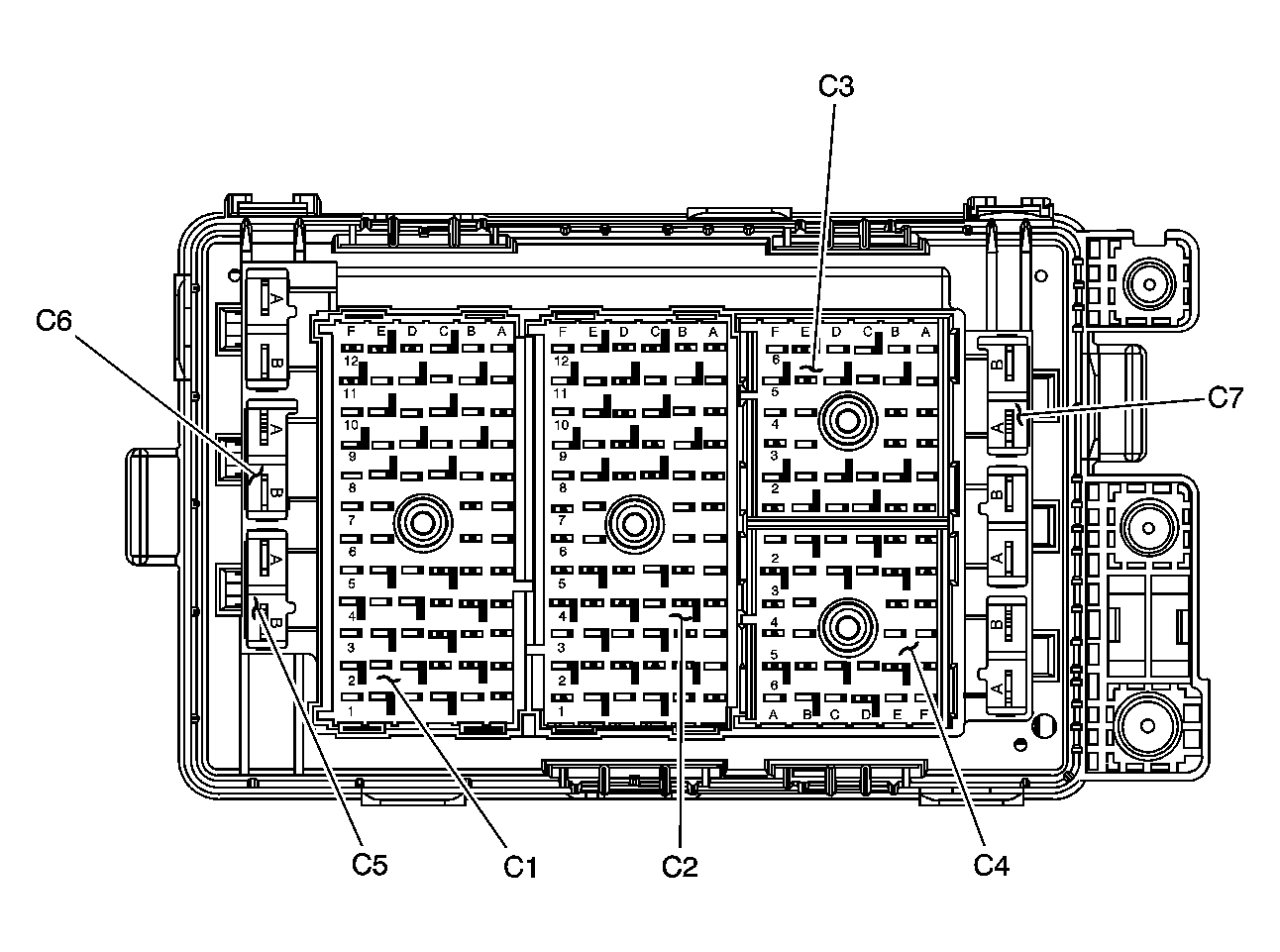

Fig 1: Fuse Block Identification View - Underhood, Bottom View
GM1201561Courtesy of GENERAL MOTORS CORP.
Fuse Block Connector Identification- Underhood C1

GM647955Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15319897
  • 68-Way F Metri-Pack 280 Series Flexlock (LT GRY)
Pin Wire Color Circuit No. Function
A1 - - Not Used
A2 PNK 839 Ignition 1 Voltage
A3-A4 - - Not Used
A5 PNK 639 Ignition 1 Voltage
A6-A7 - - Not Used
A8 PPL 6 Starter Solenoid Crank Voltage
A9 GRY 1524 Backup Lamp Supply Voltage
A10 YEL 1737 Neutral Safety Switch Park/Neutral Signal
A11 DK GRN/
WHT		 465 Fuel Pump Relay Control - Primary
A12 - - Not Used
B1 - - Not Used
B2 PNK 339 Ignition 1 Voltage
B3-B4 - - Not Used
B5 PNK 239 Ignition 1 Voltage
B6 - - Not Used
B7 LT GRN 275 Park Neutral Position Switch Park Signal
B8 - - Not Used
B9 WHT 1310 EVAP Canister Vent Solenoid Control
B10 ORN/BLK 463 Requested Torque Signal
B11-B12 - - Not Used
C1 - - Not Used
C2 PNK 539 Ignition 1 Voltage
PNK 539 Ignition 1 Voltage
C3-C4 - - Not Used
C5 PNK 439 Ignition 1 Voltage
PNK 439 Ignition 1 Voltage
C8-C9 - - Not Used
C10 BLK 550 Ground
C11 TAN/BLK 464 Delivered Torque Signal
C12 - - Not Used
D1 - - Not Used
D2 PNK 1020 Off/Run/Crank Voltage
D3 BLK 350 Ground
D4 - - Not Used
D5 PNK 439 Ignition 1 Voltage
PNK 439 Ignition 1 Voltage
D8-D9 - - Not Used
D10 BLK 550 Ground
BLK 550 Ground
D11-D12 - - Not Used
E1-E4 - - Not Used
E5 PNK 439 Ignition 1 Voltage
PNK 439 Ignition 1 Voltage
E6 BLK 450 Ground
E7-E9 - - Not Used
E10 BLK 550 Ground
BLK 550 Ground
E11 - - Not Used
E12 DK GRN 59 A/C Compressor Clutch Supply Voltage
F1-F2 - - Not Used
F3 BLK 350 Ground
F4 - - Not Used
F5 PNK 439 Ignition 1 Voltage
PNK 439 Ignition 1 Voltage
F6 BLK 450 Ground
F7-F9 - - Not Used
F10 BLK 550 Ground
BLK 550 Ground
F11-F12 - - Not Used
Fuse Block Connector Identification - Underhood C2

GM647951Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15319896
  • 68-Way F Metri-Pack 280 Series Flexlock (BLK)
Pin Wire Color Circuit No. Function
A1 - - Not Used
A2 DK GRN 189 Headlamp Leveling Motor Supply Voltage
A3 ORN 57 Left Cornering Lamp Supply Voltage
A4 - - Not Used
A5 WHT/BLK 2366 Cooling Fan Clutch Control
A6 BRN 2309 Front Park Lamps Supply Voltage
A7 ORN 440 Battery Positive Voltage
A8-A9 - - Not Used
A10 YEL 18 Left Rear Stop/Turn Lamp Supply Voltage
A11 ORN 1640 Battery Positive Voltage
A12 ORN 2268 Windshield Washer Relay Control
B1 DK BLU 2115 Right Turn Signal Lamps Supply Voltage
B2 - - Not Used
B3 PNK/WHT 1970 Headlamp Low Beam Relay Control
B4-B5 - - Not Used
B6 PNK 639 Ignition 1 Voltage
B7 BLK 58 Right Cornering Lamp Supply Voltage
B8-B9 - - Not Used
B10 PPL 420 TCC Brake Switch Signal
B11 BRN 241 Ignition 3 Voltage
B12 - - Not Used
C1 LT BLU 2114 Left Turn Signal Lamps Supply Voltage
C2 DK GRN/WHT 1317 Fog Lamp Relay Control
C3 LT GRN 2270 Rear Window Washer Relay Control
C4-C8 - - Not Used
C9 ORN 1540 Battery Positive Voltage
C10 - - Not Used
C11 BRN 441 Ignition 3 Voltage
C12 BLK/WHT 1969 Headlamp High Beam Relay Control
D1 DK GRN/
WHT		 1317 Fog Lamp Relay Control
D2 - - Not Used
D3 WHT 2282 Headlamp Washer Relay Control
D4 - - Not Used
D5 ORN 140 Battery Positive Voltage
D8 - - Not Used
D9 ORN 640 Battery Positive Voltage
ORN 640 Battery Positive Voltage
D10 DK GRN 19 Right Rear Stop/Turn Lamp Supply Voltage
D11-D12 - - Not Used
E1 ORN 2340 Battery Positive Voltage
E2 BLK 28 Horn Relay Control
E3 PNK 1020 Off/Run/Crank Voltage
E4 - - Not Used
E5 PNK 39 Ignition 1 Voltage
E6 ORN 1140 Battery Positive Voltage
E7-E9 - - Not Used
E10 LT GRN/BLK 584 A/T Shift Lock Control Switch Supply Voltage
LT GRN/BLK 584 A/T Shift Lock Control Switch Supply Voltage
E11 BLK/WHT 1695 Axle Switch Signal
E12 - - Not Used
F1 ORN 2940 Battery Positive Voltage
F2-F4 - - Not Used
F5 YEL 1139 Ignition 1 Voltage
F6 PPL 806 Crank Voltage
F7 YEL 5 Crank Voltage
F8 YEL/BLK 625 Starter Enable Relay Control
F9 GRY 1524 Backup Lamp Supply Voltage
F10 DK GRN 1433 PNP Switch Signal
F11 RED 142 Battery Positive Voltage
F12 DK GRN/
WHT		 459 A/C Clutch Relay Control
Fuse Block Connector Identification - Underhood C3

GM647944Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15319892
  • 32-Way F Metri-Pack 280 Series Flexlock (NAT)
Pin Wire Color Circuit No. Function
A1-A2 - - Not Used
A3 ORN 2840 Battery Positive Voltage
A4 - - Not Used
A5 PNK 239 Ignition 1 Voltage
A6 - - Not Used
B1-B3 - - Not Used
B4 LT GRN 1624 Trailer Backup Lamps Supply Voltage
B5 BRN 441 Ignition 3 Voltage
B6 - - Not Used
C1-C6 - - Not Used
D1 - - Not Used
D2 YEL 1618 Trailer Left Rear Turn/Stop Lamp Supply Voltage
D5 TAN/BLK 464 Delivered Torque Signal
D6 BLK/WHT 1695 Axle Switch Signal
E1-E2 - - Not Used
E3 PPL 420 TCC Brake Switch Signal
E4 BRN 241 Ignition 3 Voltage
E5 ORN 1640 Battery Positive Voltage
E6 - - Not Used
F1 BLK 350 Ground
BLK 350 Ground
F2 ORN/BLK 463 Requested Torque Signal
F3 GRY 120 Fuel Pump Supply Voltage
F4 WHT 1310 EVAP Canister Vent Solenoid Control
F5 - - Not Used
F6 DK GRN 1619 Trailer Right Rear Turn/Stop Lamp Supply Voltage
Fuse Block Connector Identification - Underhood C4

GM647947Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15319893
  • 32-Way F Metri-Pack 280 Series Flexlock (MD GRY)
Pin Wire Color Circuit No. Function
A1 BRN 2309 Front Park Lamps Supply Voltage
BRN 2309 Front Park Lamps Supply Voltage
A2 - - Not Used
A3 WHT 2368 Cooling Fan Clutch Supply Voltage
A4-A5 - - Not Used
A6 LT BLU 2114 Left Turn Signal Lamps Supply Voltage
LT BLU 2114 Left Turn Signal Lamps Supply Voltage
B1 BRN 2309 Front Park Lamps Supply Voltage & X88 & WX7
B1 BRN 2309 Front Park Lamps Supply Voltage
B2 PNK 639 Ignition 1 Voltage
B3 BLK 58 Right Cornering Lamp Supply Voltage
B4 ORN 57 Left Cornering Lamp Supply Voltage
B5 DK GRN 392 Rear Window Washer Pump Control
B6 - - Not Used
C1-C2 - - Not Used
C5 BLK 350 Ground
C6 DK BLU 2115 Right Turn Signal Lamps Supply Voltage
D1-D2 - - Not Used
D5 DK GRN 189 Headlamp Leveling Motor Supply Voltage
D6 - - Not Used
E1 DK GRN/
WHT		 711 Left Headlamp High Beam Supply Voltage
E2 YEL 712 Left Headlamp Low Beam Supply Voltage
E3 - - Not Used
E4 RED 228 Windshield Washer Pump Control
E5-E6 - - Not Used
F1 LT GRN/BLK 311 Right Headlamp High Beam Supply Voltage
F2 TAN/WHT 312 Right Headlamp Low Beam Supply Voltage
F3 - - Not Used
F4 DK GRN 1329 Horn Supply Voltage
F5 PPL 1197 Headlamp Washer Pump Control
F6 PPL 34 Front Fog Lamps Supply Voltage
PPL 34 Front Fog Lamps Supply Voltage
Fuse Block Connector Identification - Underhood C5

GM647935Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12193694
  • 2-Way F MAXI FUSE (LT GRY)
Pin Wire Color Circuit No. Function
A RED 342 Battery Positive Voltage
B PNK 3 Ignition 1 Voltage
Fuse Block Connector Identification - Underhood C6

GM647937Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12193696
  • 2-Way F MAXI FUSE (BRN)
Pin Wire Color Circuit No. Function
A - - Not Used
B RED 542 Battery Positive Voltage

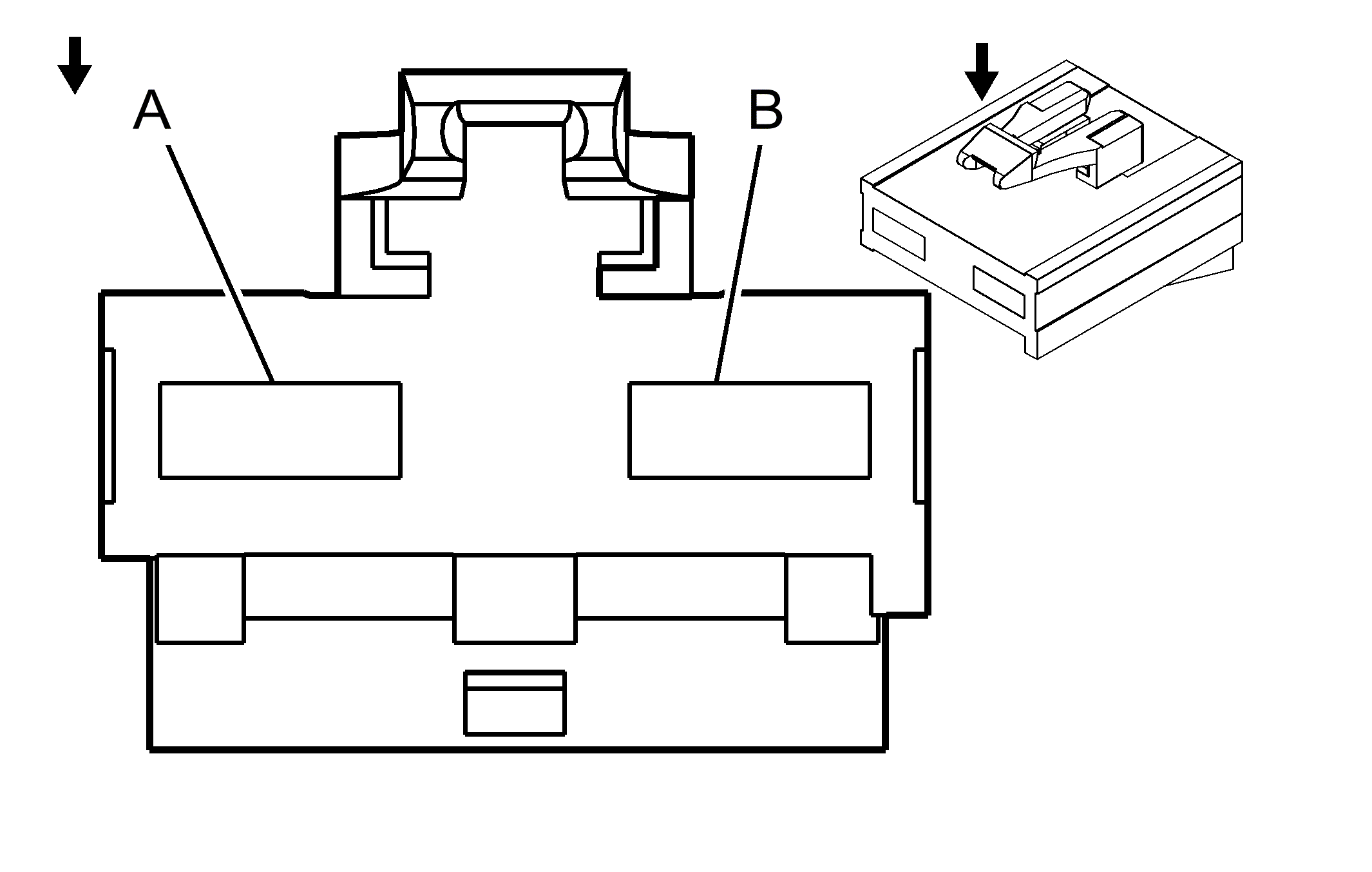

Fuse Block Connector Identification - Underhood C7

GM647933Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12193693
  • 2-Way F MAXI FUSE (BLK)
Pin Wire Color Circuit No. Function
A - - Not Used
B RED 642 Battery Positive Voltage
