Removal Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2004 Oldsmobile Bravada, 2004 GMC Envoy XUV, 2004 GMC Envoy XL, 2004 GMC Envoy, and 2004 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

Raise the vehicle. Refer to Lifting and Jacking the Vehicle in General Information.

Fig 1: Removing Exhaust Pipe Bolts

Courtesy of GENERAL MOTORS CORP.

Loosen and remove the exhaust pipe bolts from the exhaust manifold.
Lower the vehicle.
Remove the manifold heat shield. Refer to Exhaust Manifold Heat Shield Replacement .

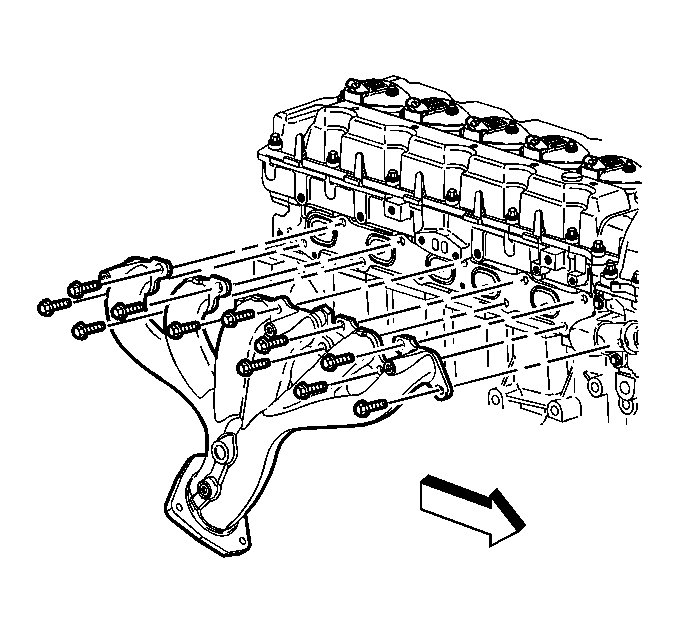

Fig 2: Removing/Installing Exhaust Manifold

Courtesy of GENERAL MOTORS CORP.

Loosen and remove the exhaust manifold bolts.
Remove the exhaust manifold.
Remove the exhaust manifold gasket.
