Installation Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2004 Oldsmobile Bravada, 2004 GMC Envoy XUV, 2004 GMC Envoy XL, 2004 GMC Envoy, and 2004 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

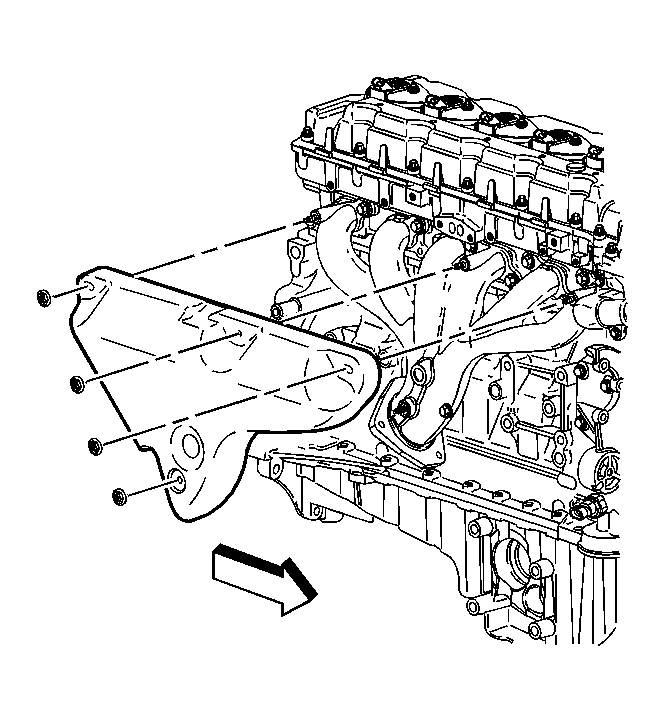

Fig 1: Removing/Installing Heat Shield

Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to Fastener Notice in Cautions and Notices.

Install the exhaust manifold heat shield with the 4 nuts.
Tighten: Tighten the exhaust manifold heat shield nuts to 10 N.m (89 lb in).
Install the oxygen sensor. Refer to Heated Oxygen Sensor Replacement - Position 1 in Engine Controls - 4.2L.
Install the oil level indicator. Refer to Oil Level Indicator and Tube Replacement
Install the secondary air injection (AIR) solenoid valve. Refer to Secondary Air Injection (AIR) Solenoid Valve Replacement in Engine Controls - 4.2L.
Install the air cleaner resonator outlet duct. Refer to Air Cleaner Resonator Outlet Duct Replacement in Engine Controls - 4.2L.
