Locking Differential Cam Unit Disassemble

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2004 Oldsmobile Bravada, 2004 GMC Envoy XUV, 2004 GMC Envoy XL, 2004 GMC Envoy, and 2004 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

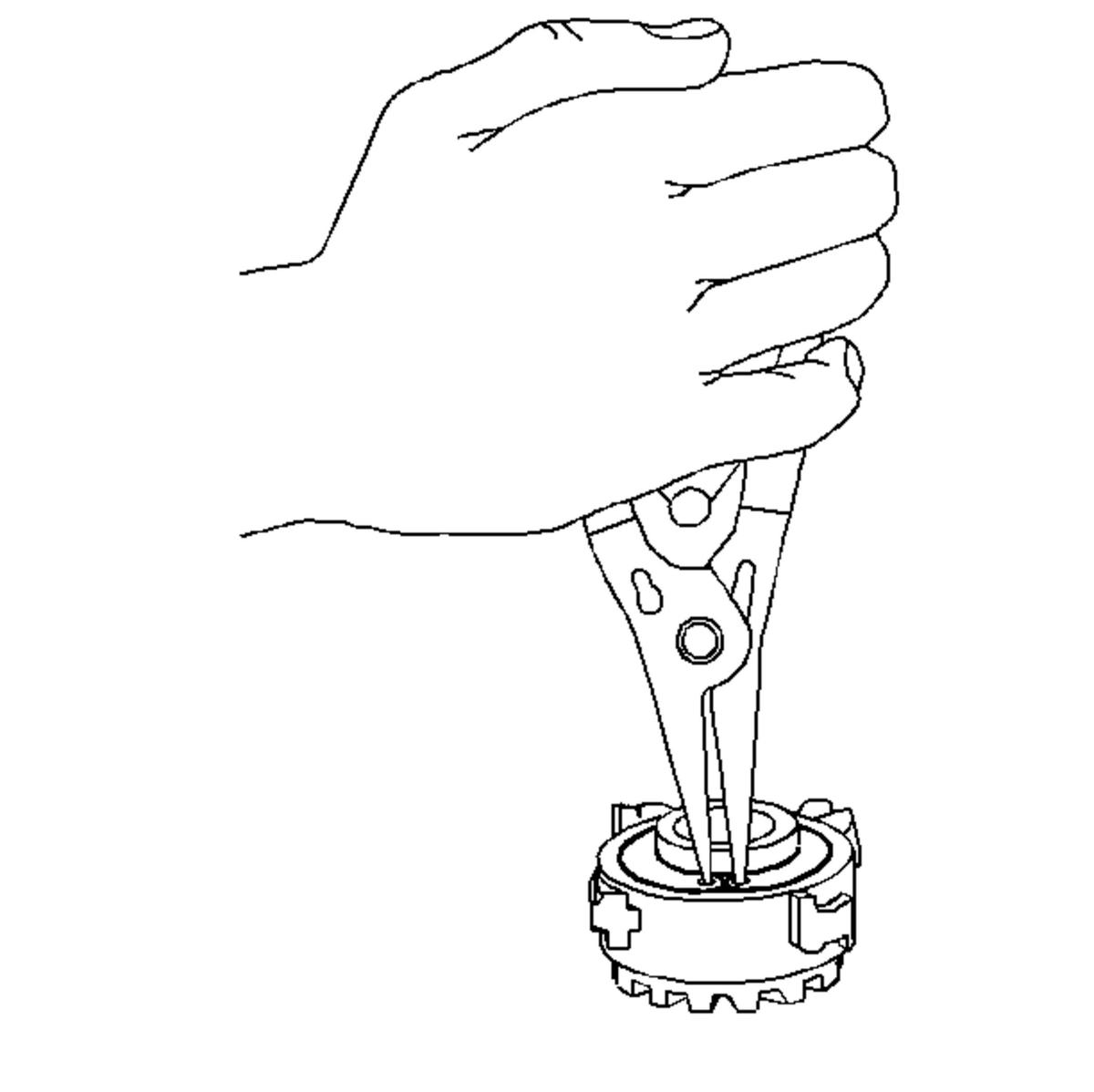

Fig 1: Locking Differential Retaining Ring

Courtesy of GENERAL MOTORS CORP.

Remove the retaining ring.

Fig 2: Exploded View Of Locking Differential Side Gear Cam Unit & Clutch Disc Assembly

Courtesy of GENERAL MOTORS CORP.

Disassemble the cam unit and clutch disc assembly as follows:
1. Remove the guide clips (6).
2. Remove the clutch discs and the splined discs (7-14).
3. Remove the wave washer (5).
4. Remove the fuse disc (4).
5. Remove the carbon eared disc (3).
6. Disassemble the cam plate (2) from the cam side gear (1).
