Locking Differential Assemble

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2004 Oldsmobile Bravada, 2004 GMC Envoy XUV, 2004 GMC Envoy XL, 2004 GMC Envoy, and 2004 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT: The left and right side gear backlash and thrust block thickness measurement must be completed before the components of the locking differential can be assembled.

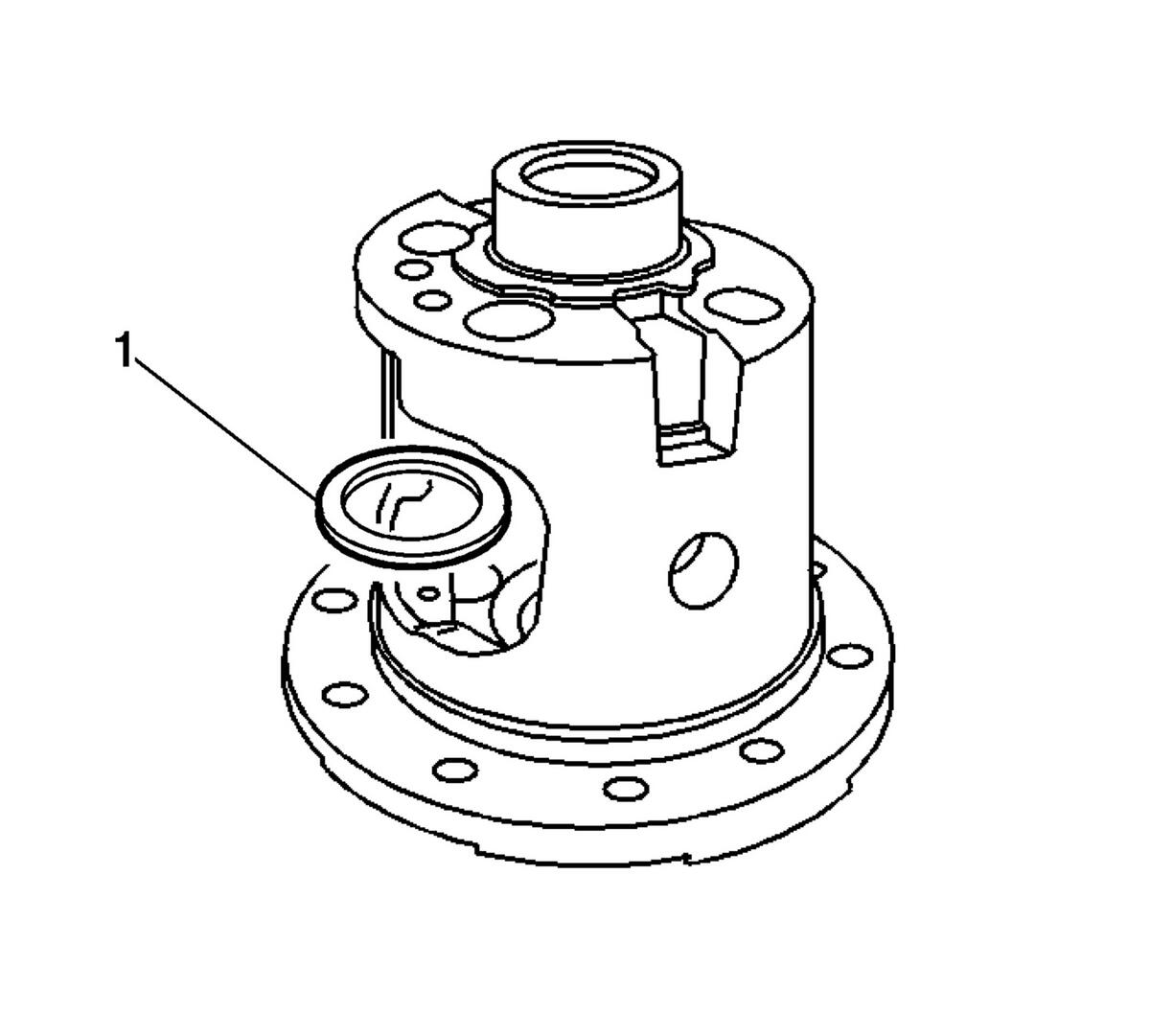

    Fig 1: View Of Left Side Gear Thrust Washer
    GM790754Courtesy of GENERAL MOTORS CORP.
  1. Install the left side gear thrust washer.

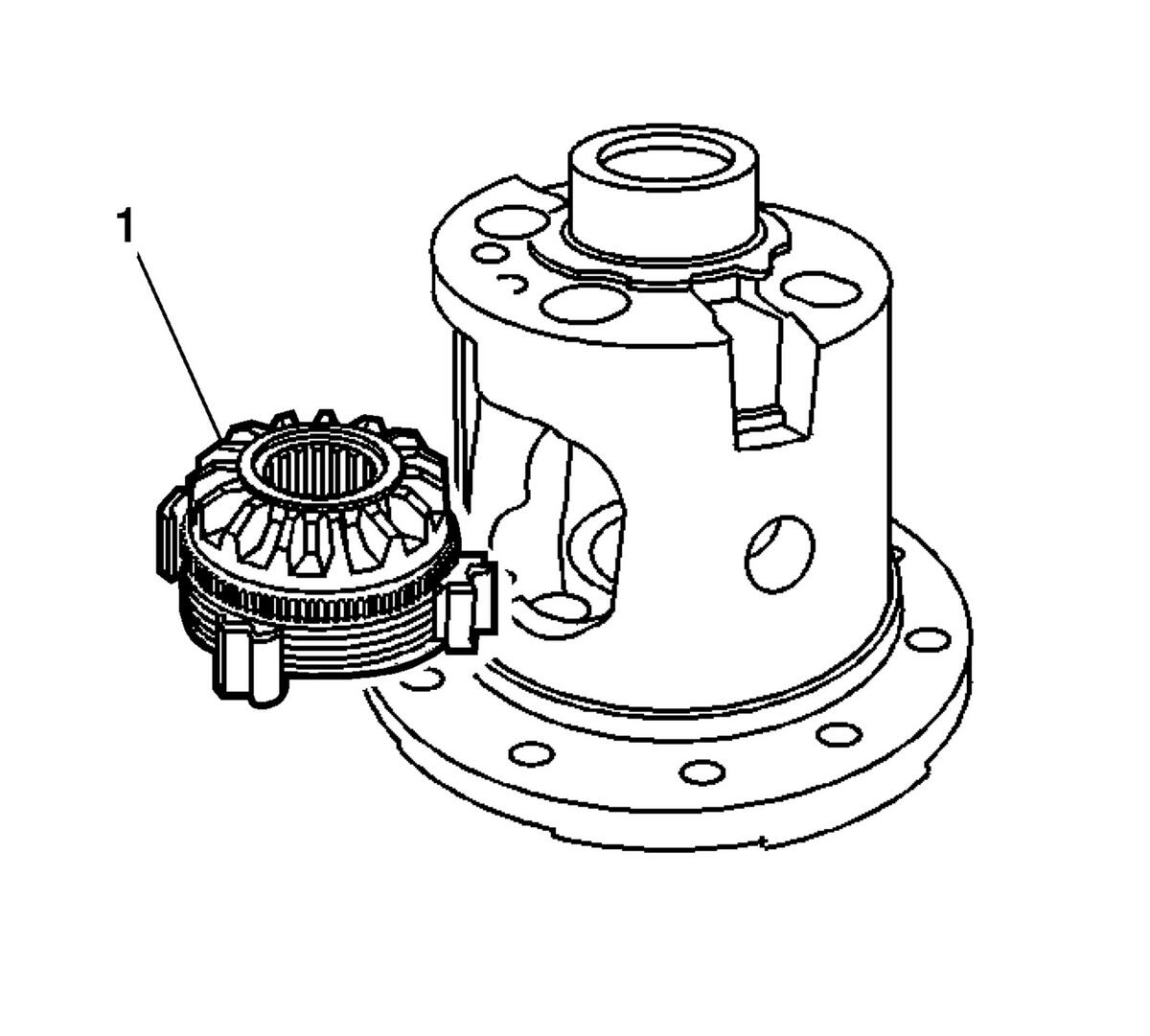

  2. Fig 2: View Of Left Side Gear Cam Unit & Clutch Disc Assembly
    GM790759Courtesy of GENERAL MOTORS CORP.
  3. Install the left side gear (cam unit) and clutch disc assembly.
  4. Install the right side gear thrust washer.
  5. Install the right side clutch pack assembly.
  6. Install the right side gear.
  7. IMPORTANT: If the original pinion gears and thrust washers are being re-used, install the pinion gears and thrust washers on the same side as when removed.
  8. Install the pinion gear and the pinion thrust washers.

    Place the pinion gears and the pinion thrust washers 180 degrees apart.

  9. Rotate the pinion gears and the pinion thrust washers 90 degrees and align the pinion gears with the pinion shaft opening in the differential case.
  10. Install the thrust block.

    The open side of the thrust block must face the window opening.

  11. Install the pinion shaft.
  12. Install the new pinion shaft lock bolt.

    Tighten the pinion shaft lock bolt finger tight.

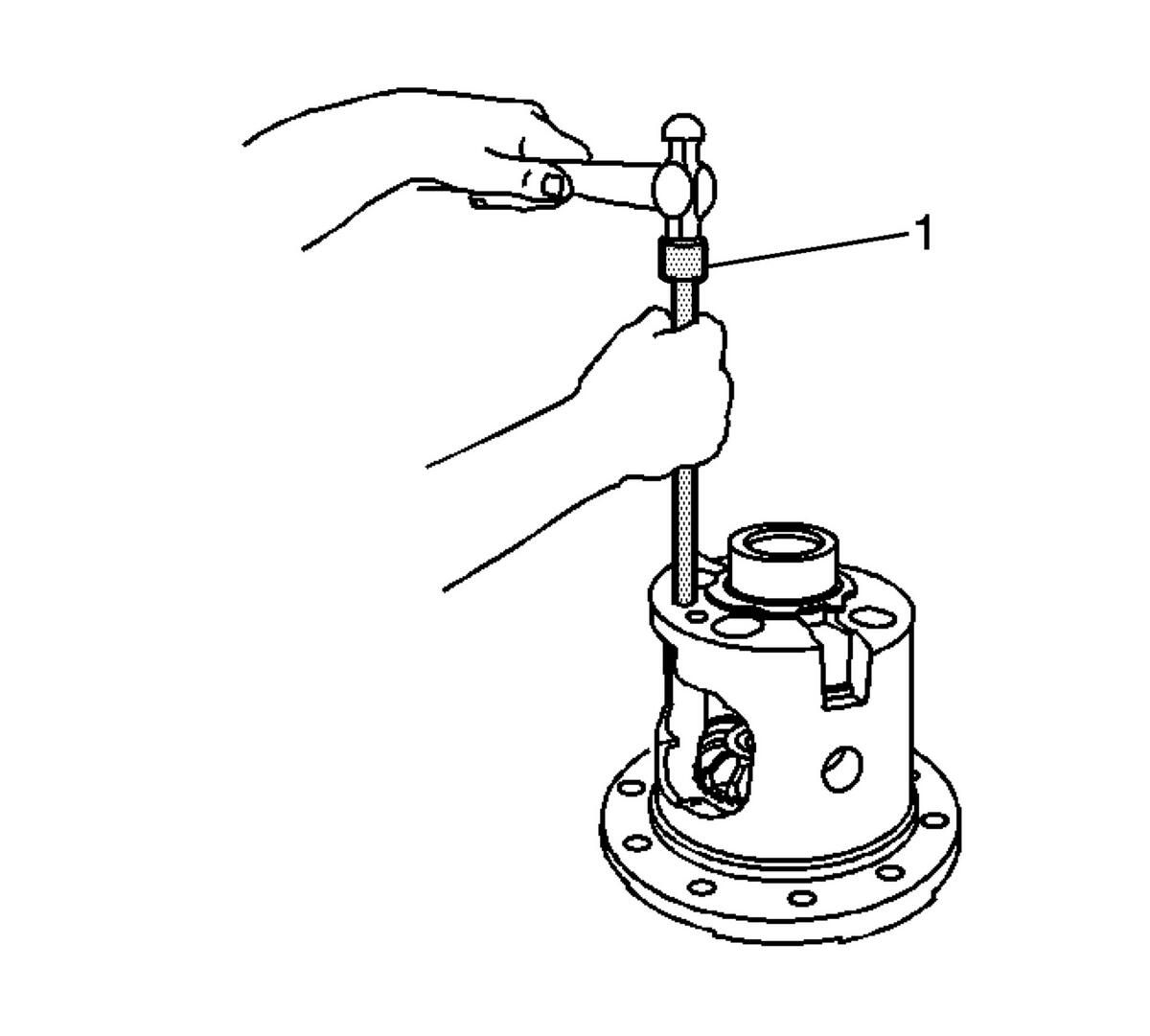

  13. Fig 3: Installing Governor Assembly
    GM790767Courtesy of GENERAL MOTORS CORP.
  14. Install the governor assembly.
  15. Install the governor bushing using a hammer and a brass drift.

    Specification:  Press the bushing into place until there is 0.025-0.076 mm (0.010-0.030 in) of shaft end play.

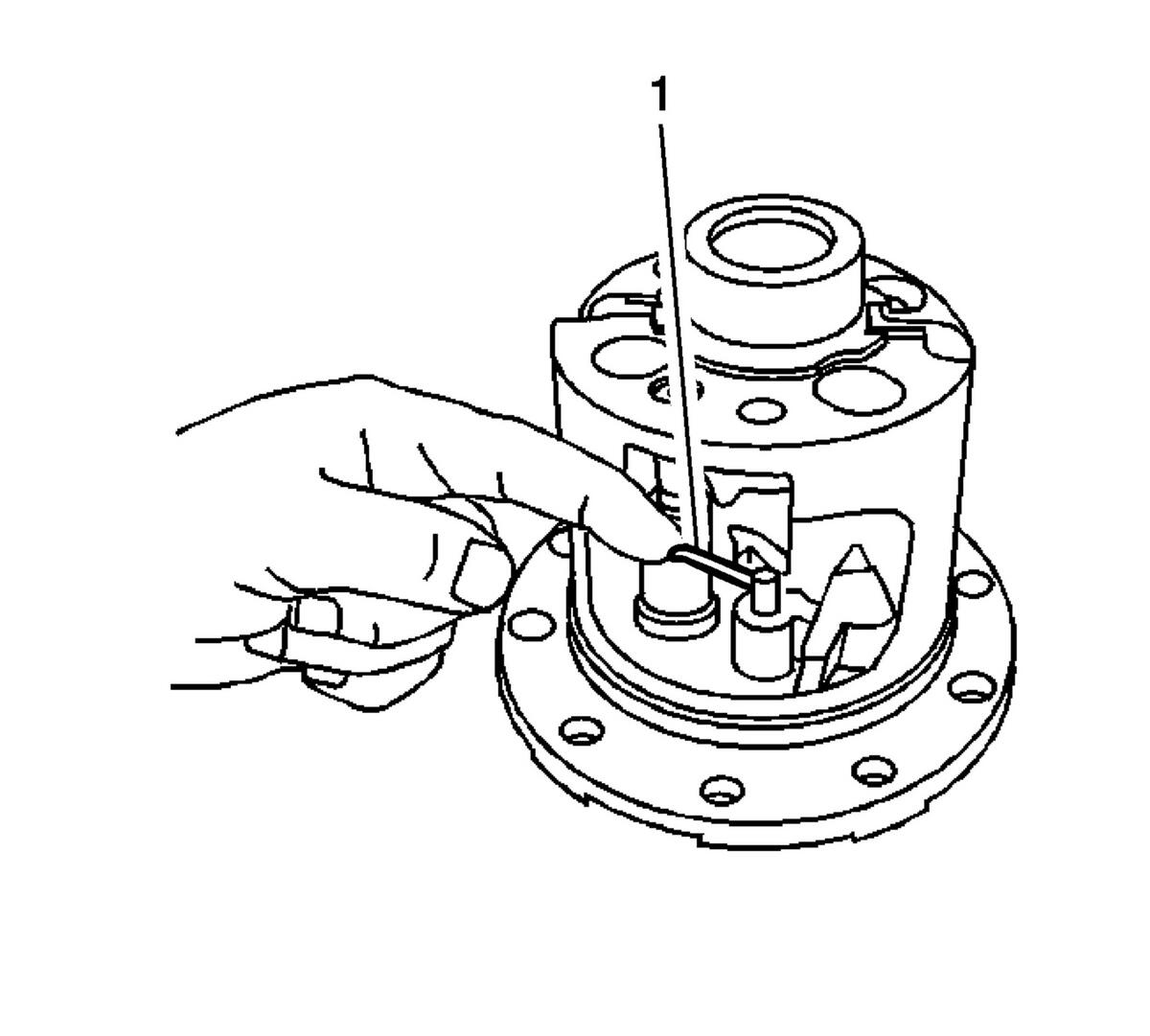

  16. Fig 4: Installing Latching Bracket Assembly
    GM790769Courtesy of GENERAL MOTORS CORP.
  17. Install the latching bracket assembly.

    The straight end of the latching bracket spring must be over and outside the governor assembly shaft.

  18. Install the latching bracket bushing using a hammer and a brass drift.

    Specification:  Press the bushing into place until there is 0.000-0.051 mm (0.000-0.002 in) of shaft end play.

  19. Tighten the pinion shaft lock bolt.

    Tighten:  Tighten the pinion shaft lock bolt to 36 N.m (27 lb ft).
