Removal Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2004 Oldsmobile Bravada, 2004 GMC Envoy XUV, 2004 GMC Envoy XL, 2004 GMC Envoy, and 2004 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle in General Information.
    2. NOTE: The rear axle must not be allowed to hang freely while servicing rear suspension components. Not supporting the rear axle will result in damage to the upper control arm and/or to the air suspension components.
  2. Support the rear axle.

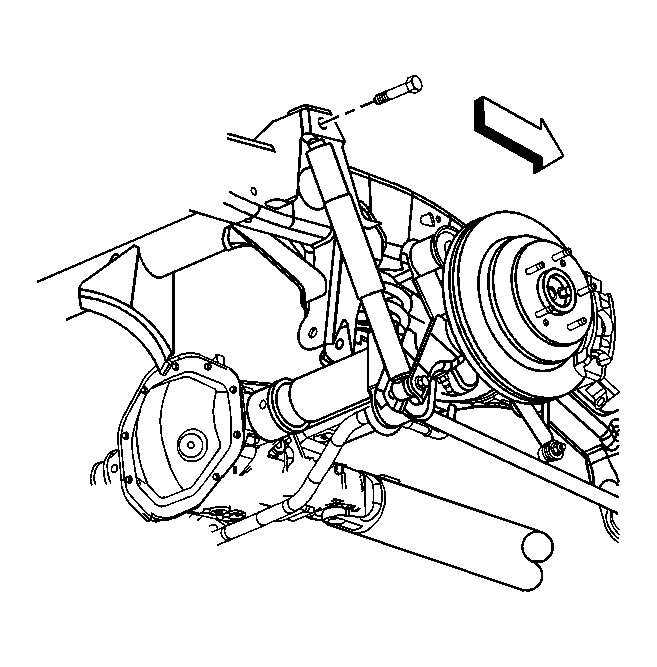

    3. Fig 1: View Of Rear Shock Absorber Upper Mounting Bolt
    GM731620Courtesy of GENERAL MOTORS CORP.
  3. Remove the shock absorber upper mounting bolt.
    4. Fig 2: View Of Shock Absorber Lower Mounting Bolt
    GM731622Courtesy of GENERAL MOTORS CORP.
  4. Remove the shock absorber lower mounting bolt.
  5. Remove the shock absorber from the vehicle.
