Removal Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2004 Oldsmobile Bravada, 2004 GMC Envoy XUV, 2004 GMC Envoy XL, 2004 GMC Envoy, and 2004 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle in General Information.
  2. Raise and support the rear axle at the designed D - height. Refer to Trim Height Specifications in Suspension General Diagnosis.
    3. IMPORTANT: When disconnecting the rear axle tie rod, the air suspension system must be depressurized or the body my shift during the repair.
  3. If equipped with air suspension, depressurize the air suspension system. Refer to Air Suspension Depressurization Procedure in Air Suspension.
  4. Remove the rear axle tie rod to the axle mounting bolt and nut.

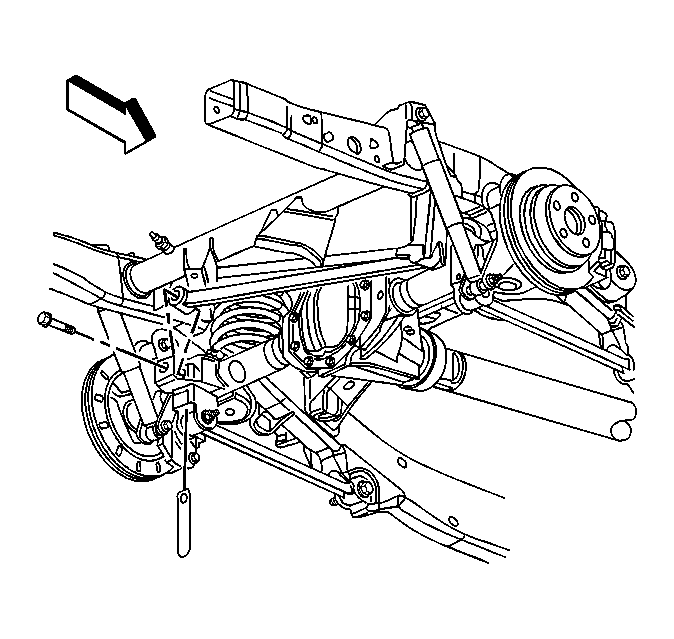

    5. Fig 1: Removing/Installing Rear Axle Tie Rod-To-Axle Mounting Bolt
    GM731617Courtesy of GENERAL MOTORS CORP.
    Fig 2: View Of Rear Differential
    GM731614Courtesy of GENERAL MOTORS CORP.
  5. Remove the rear axle tie rod to frame mounting bolt and nut.
  6. Remove the rear axle tie rod from the vehicle.
