Installation Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2004 Oldsmobile Bravada, 2004 GMC Envoy XUV, 2004 GMC Envoy XL, 2004 GMC Envoy, and 2004 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the rear axle brace to the vehicle.

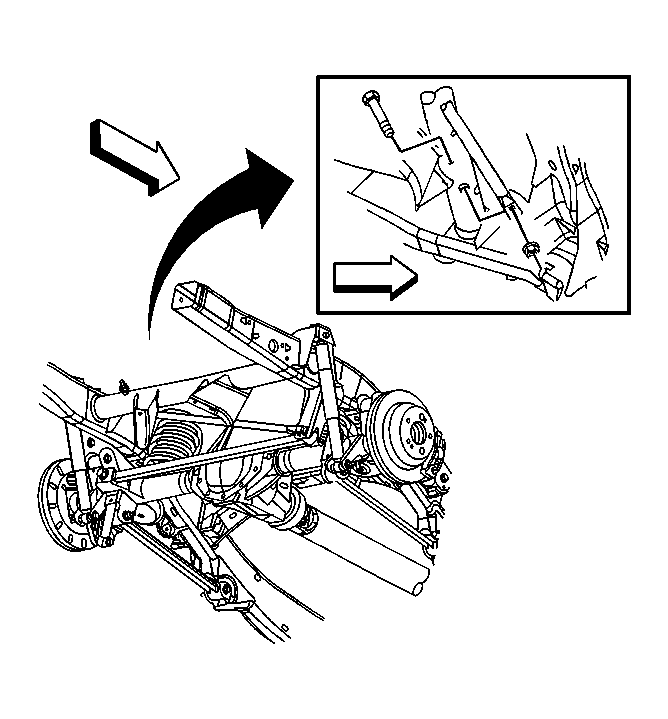

    Fig 1: Removing/Installing Rear Axle Brace
    GM731618Courtesy of GENERAL MOTORS CORP.
    2. NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the rear axle brace to frame mounting nut.

    Tighten:  Tighten the rear axle brace to frame mounting nut to 95 N.m (70 lb ft).

    3. Fig 2: View Of Rear Differential
    GM731614Courtesy of GENERAL MOTORS CORP.
  3. Install the rear axle brace and rear axle tie rod to the rear axle mounting bolt.

    Tighten:  Tighten the rear axle brace and rear axle tie rod to the rear axle mounting bolt to 195 N.m (144 lb ft).

  4. Remove the rear axle support.
  5. Lower the vehicle.
