Removal Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2004 Oldsmobile Bravada, 2004 GMC Envoy XUV, 2004 GMC Envoy XL, 2004 GMC Envoy, and 2004 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise the vehicle. Refer to Lifting and Jacking the Vehicle in General Information.
    2. IMPORTANT: Make note of the routing in order to aid in reassembly.

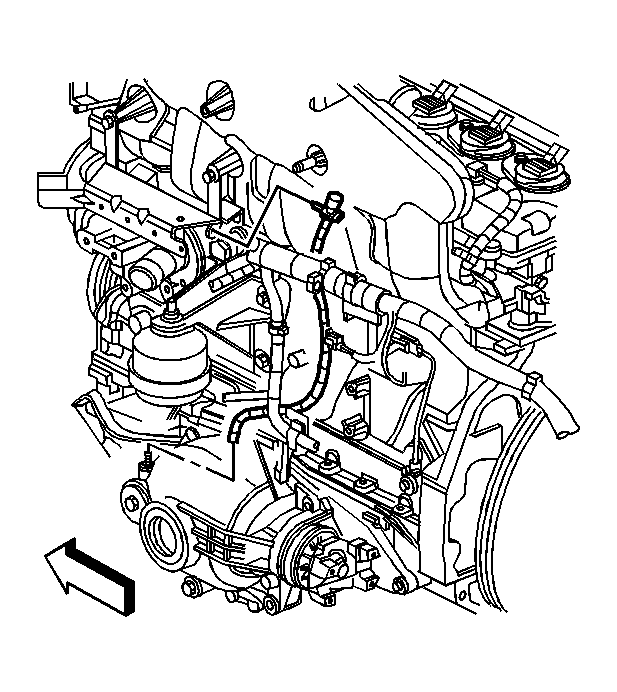

    Fig 1: Differential Carrier Assembly Vent Hose
    GM755290Courtesy of GENERAL MOTORS CORP.
  2. Remove the vent hose from the top of the differential carrier assembly.
  3. Remove the vent hose from the clip on the engine wiring harness bracket.
  4. Remove the vent hose.
