Installation Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2004 Oldsmobile Bravada, 2004 GMC Envoy XUV, 2004 GMC Envoy XL, 2004 GMC Envoy, and 2004 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the actuator to the intermediate shaft bearing assembly.
    2. Fig 1: Removing/Installing Actuator From Intermediate Shaft Bearing Assembly
    GM756961Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the actuator assembly to intermediate shaft bearing assembly mounting bolts.

    Tighten:  Tighten the actuator assembly mounting bolts to 6 N.m (53 lb in).

    3. IMPORTANT: Do not nick or cut the inboard (oil pan) inner shaft seal.
  3. Install the intermediate shaft bearing assembly to the oil pan.

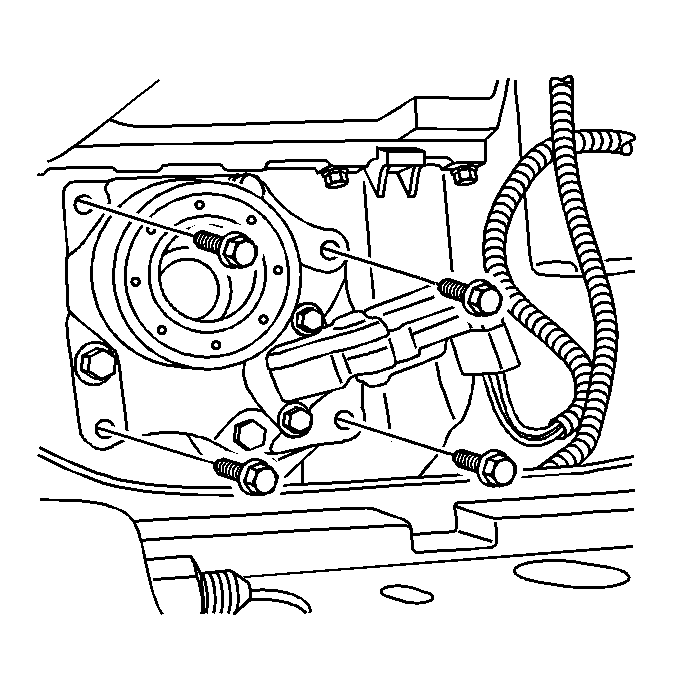

    4. Fig 2: Intermediate Shaft Bearing Assembly Mounting Bolts
    GM761105Courtesy of GENERAL MOTORS CORP.
  4. Install the intermediate shaft bearing assembly mounting bolts.

    Tighten:  Tighten the intermediate shaft bearing assembly mounting bolts to 48 N.m (35 lb ft).

  5. Install the wire harness clip.
  6. Connect the electrical connector.
  7. Install the right wheel drive shaft. Refer to Wheel Drive Shaft Replacement in Wheel Drive Shafts.
  8. Lower the vehicle.
