Removal Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2004 Oldsmobile Bravada, 2004 GMC Envoy XUV, 2004 GMC Envoy XL, 2004 GMC Envoy, and 2004 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise the vehicle. Refer to Lifting and Jacking the Vehicle in General Information.
  2. Remove the engine protection shield. Refer to Engine Protection Shield Replacement in Frame and Underbody.
  3. Disconnect the electrical connector from the actuator assembly.

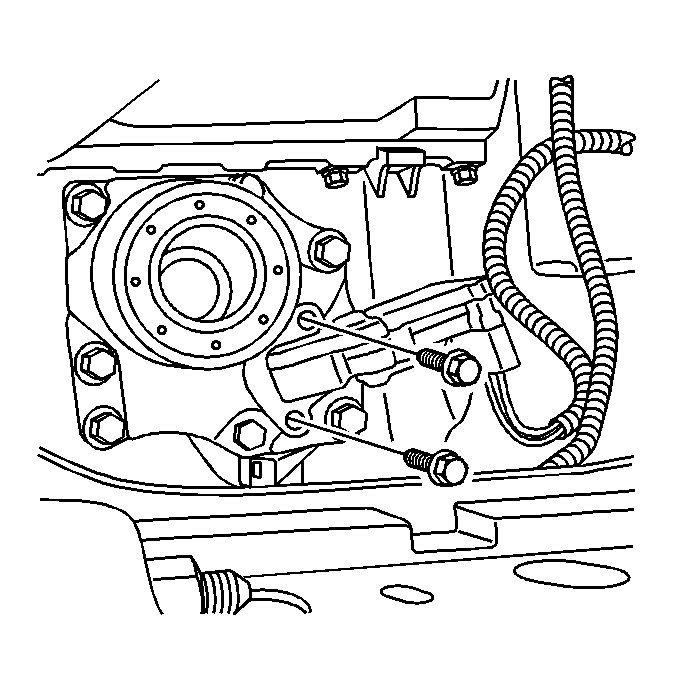

    4. Fig 1: Actuator Assembly Bolts
    GM756336Courtesy of GENERAL MOTORS CORP.
  4. Remove the actuator assembly bolts.
  5. Remove the actuator assembly.
