Installation Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2004 Oldsmobile Bravada, 2004 GMC Envoy XUV, 2004 GMC Envoy XL, 2004 GMC Envoy, and 2004 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

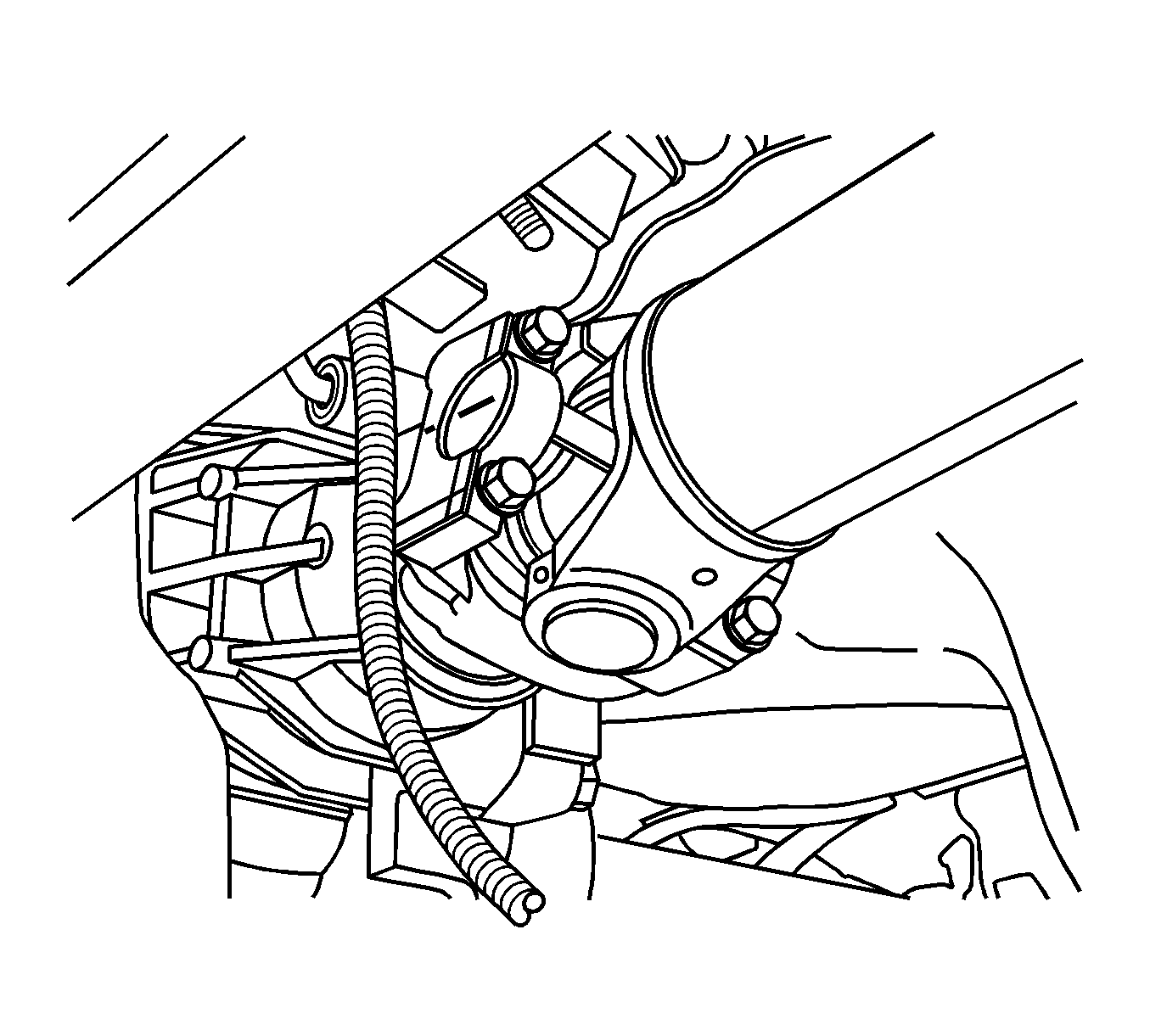

    Fig 1: Reference Marks On Driveline Components
    GM1199413Courtesy of GENERAL MOTORS CORP.
  1. Install the propeller shaft in the transfer case.
  2. Align the reference marks made during removal.
    3. Fig 2: Removing/Installing Front Propeller Shaft
    GM384994Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: Ensure that the propeller shaft assembly is fully engaged into the slip yoke. The retaining ring will produce a snapping noise when the shaft is properly engaged.
  3. Install the propeller shaft to the front axle pinion yoke.
    4. NOTE: Refer to Fastener Notice in Caution and Notices.
  4. Install the yoke retainers and the bolts.

    Tighten:  Tighten the front propeller shaft yoke clamp bolts to 20 N.m (15 lb ft).

  5. Install the steering gear crossmember. Refer to Crossmember Replacement - Rear Steering Gear in Frame and Underbody.
  6. Lower the vehicle. Refer to Lifting and Jacking the Vehicle in General Information.
