Installation Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2004 Oldsmobile Bravada, 2004 GMC Envoy XUV, 2004 GMC Envoy XL, 2004 GMC Envoy, and 2004 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

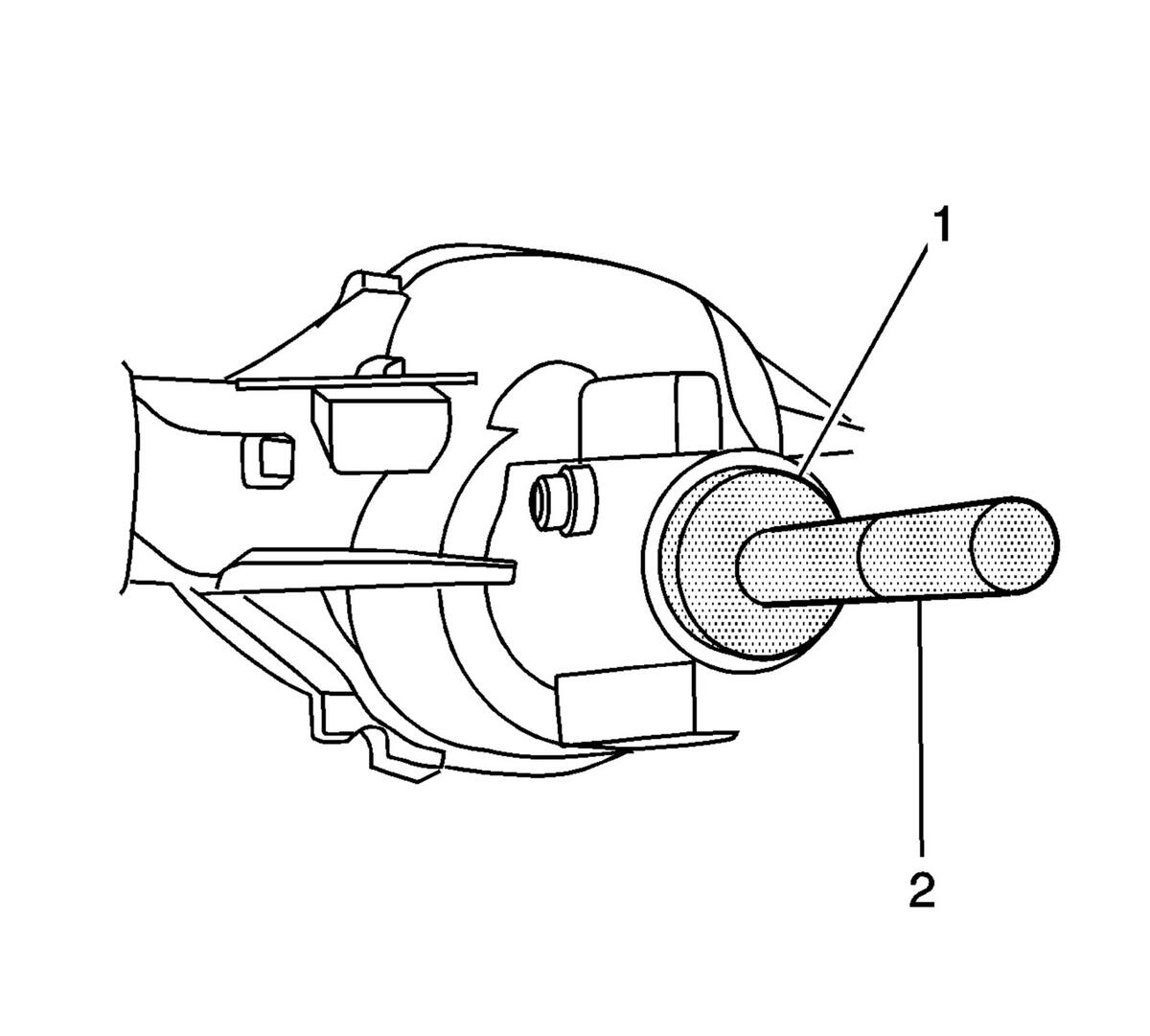

Fig 1: Install The Outer Pinion Bearing Cup Using J 8611-01, J 7818 Or J 8608 & J 8092

Courtesy of GENERAL MOTORS CORP.

Install the outer pinion bearing cup using the J 7817 , 8.0 inch axle, or the J 8611-01 , 8.6 inch axle (1), and the J 8092 (2). See Special Tools and Equipment .

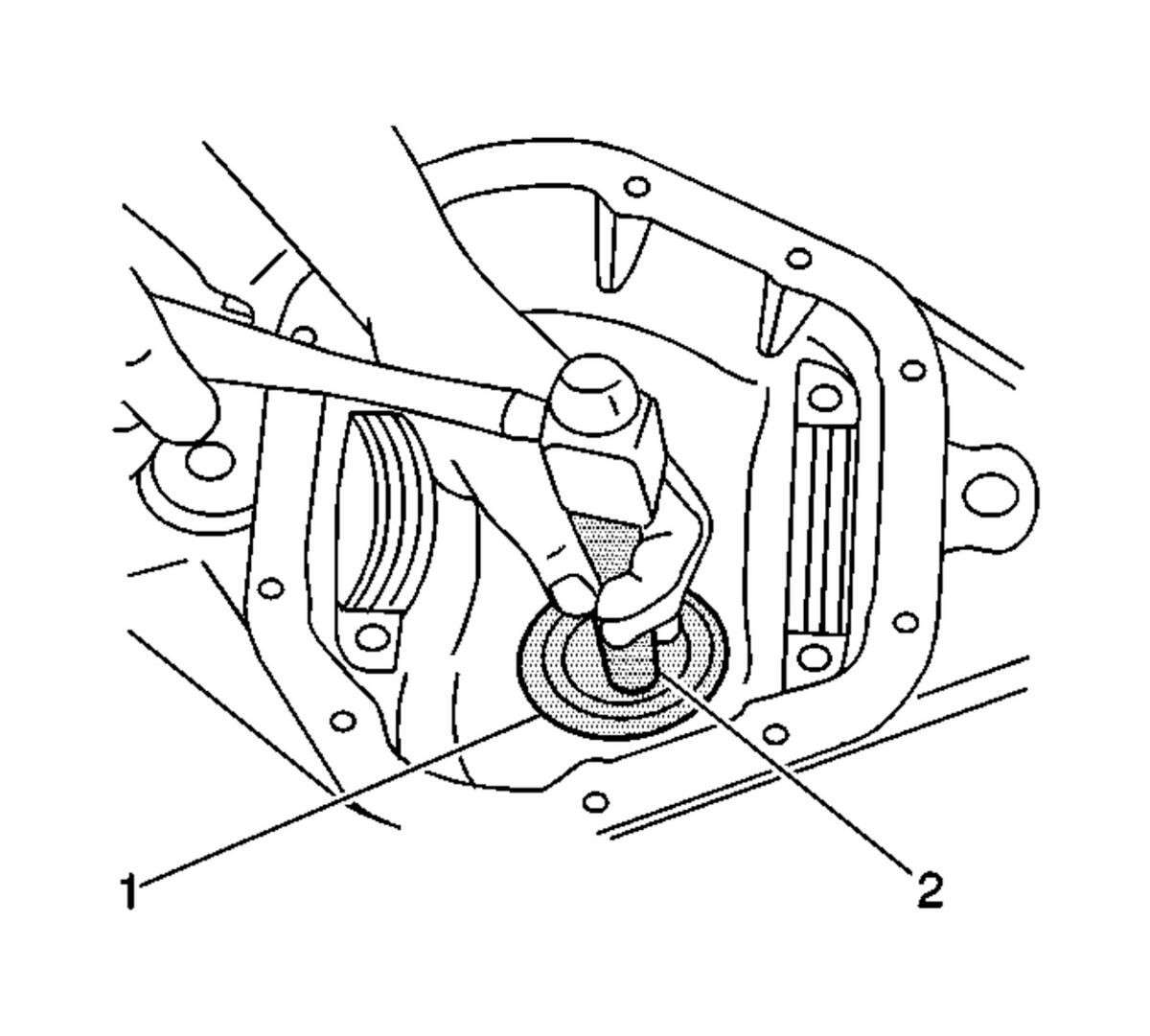

Fig 2: Install The Inner Pinion Bearing Cup Using J 45900, J 22306 Or J 44417 & J 8092

Courtesy of GENERAL MOTORS CORP.

Install the inner pinion bearing cup using the J 8608 (2) and the J 8092 (1).
Determine the selective shim thickness for the pinion. Refer to Pinion Depth Adjustment .

Fig 3: Installing Inner Pinion Bearing Onto Pinion Gear

Courtesy of GENERAL MOTORS CORP.

Install the selective shim between the inner pinion bearing and the shoulder on the gear.
Install the inner pinion bearing using the J 24433 . See Special Tools and Equipment .
Press the bearing on until the cone seats on the pinion shim.
Install a new collapsible spacer.
Lubricate the pinion bearings with axle lubricant. Use the proper fluid. Refer to Fluid and Lubricant Recommendations in Maintenance and Lubrication.
Install the pinion into the axle housing.
Install the outer pinion bearing onto the pinion.

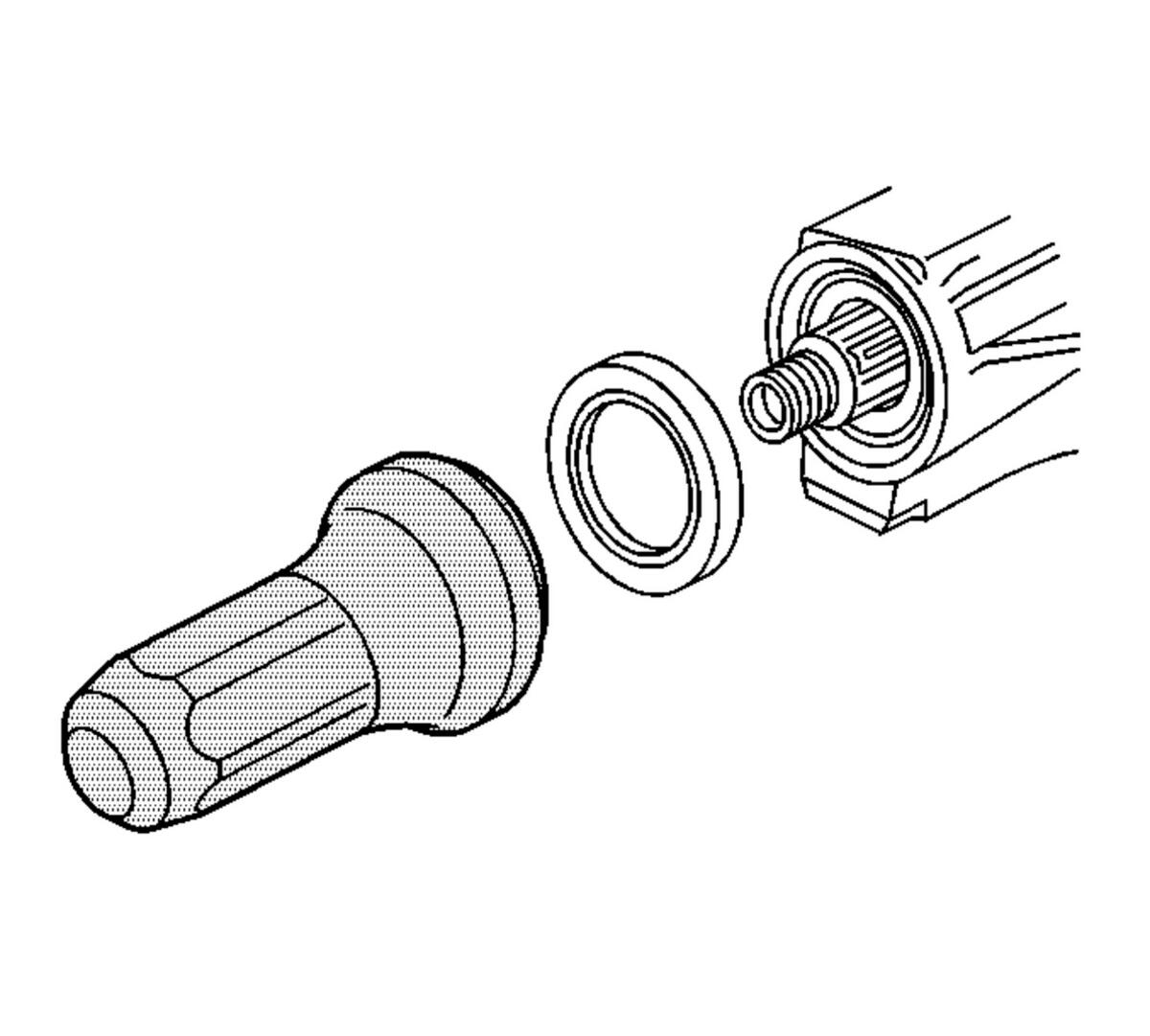

Fig 4: Installing Pinion Oil Seal

Courtesy of GENERAL MOTORS CORP.

Install a new pinion oil seal using the J 33782 , 8.0 inch axle, or the J 38694 , 8.6 inch axle.
Apply sealant GM P/N 12346004 (Canadian P/N 10953480) or equivalent to the splines of the pinion yoke.

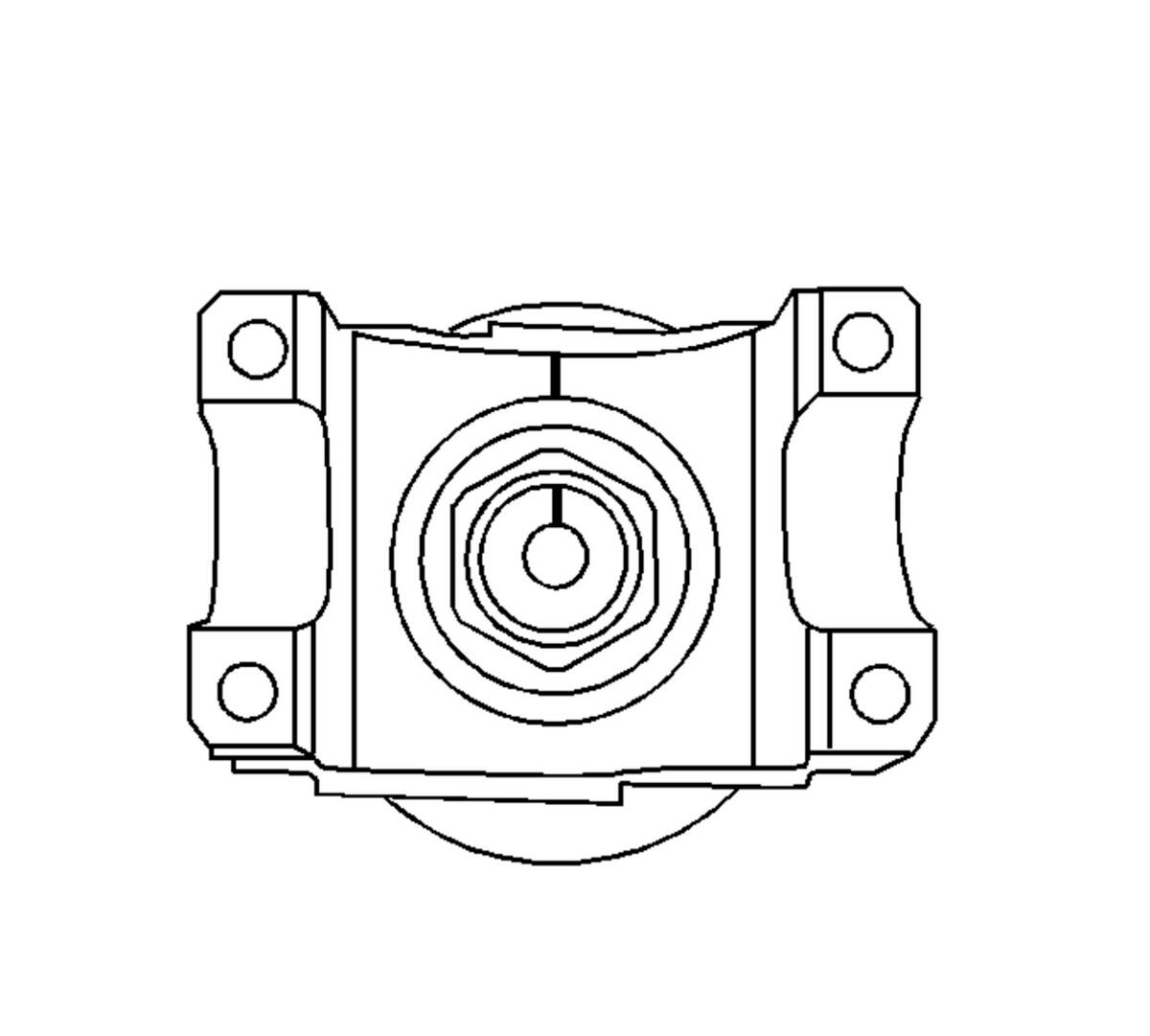

Fig 5: View Of Pinion Shaft & Pinion Yoke Alignment Marks

Courtesy of GENERAL MOTORS CORP.

Install the pinion yoke.
Align the marks made during removal.
Seat the pinion yoke onto the pinion shaft by tapping it with a soft-faced hammer until a few pinion shaft threads show through the yoke.
Install the washer and a new pinion nut.

Fig 6: Holding Pinion Yoke With Special Tool

Courtesy of GENERAL MOTORS CORP.

Install the J 8614-01 onto the pinion yoke as shown.

NOTE: Refer to Fastener Notice in Cautions and Notices.

IMPORTANT: If the rotating torque is exceeded, the pinion will have to be removed and a new collapsible spacer installed.

Tighten the pinion nut while holding the J 8614-01 .
Tighten: Tighten the pinion nut until the pinion end play is just taken up. Rotate the pinion while tightening the nut to seat the bearings.

Fig 7: Measuring Pinion Rotating Torque

Courtesy of GENERAL MOTORS CORP.

Measure the rotating torque of the pinion using an inch-pound torque wrench.
Specification: The rotating torque of the pinion should be 1.0-2.3 N.m (10-20 lb in) for used bearings, or 1.7-3.4 N.m (15-30 lb in) for new bearings.
If the rotating torque measurement is below 1.0 N.m (10 lb in) for used bearings, or 1.7 N.m (15 lb in) for new bearings, continue to tighten the pinion nut.
Tighten: Tighten the pinion nut, in small increments, as needed, until the torque required in order to rotate the pinion is 1.0-2.3 N.m (10-20 lb in) for used bearings, or 1.7-3.4 N.m (15-30 lb in) for new bearings.
Once the specified torque is obtained, rotate the pinion several times to ensure the bearings have seated.
Recheck the rotating torque and adjust if necessary.
Install the differential. Refer to Differential Replacement .
Fill the axle with axle lubricant lubricant. Use the proper fluid. Refer to Lubricant Replacement - Front Drive Axle .
Lower the vehicle.
