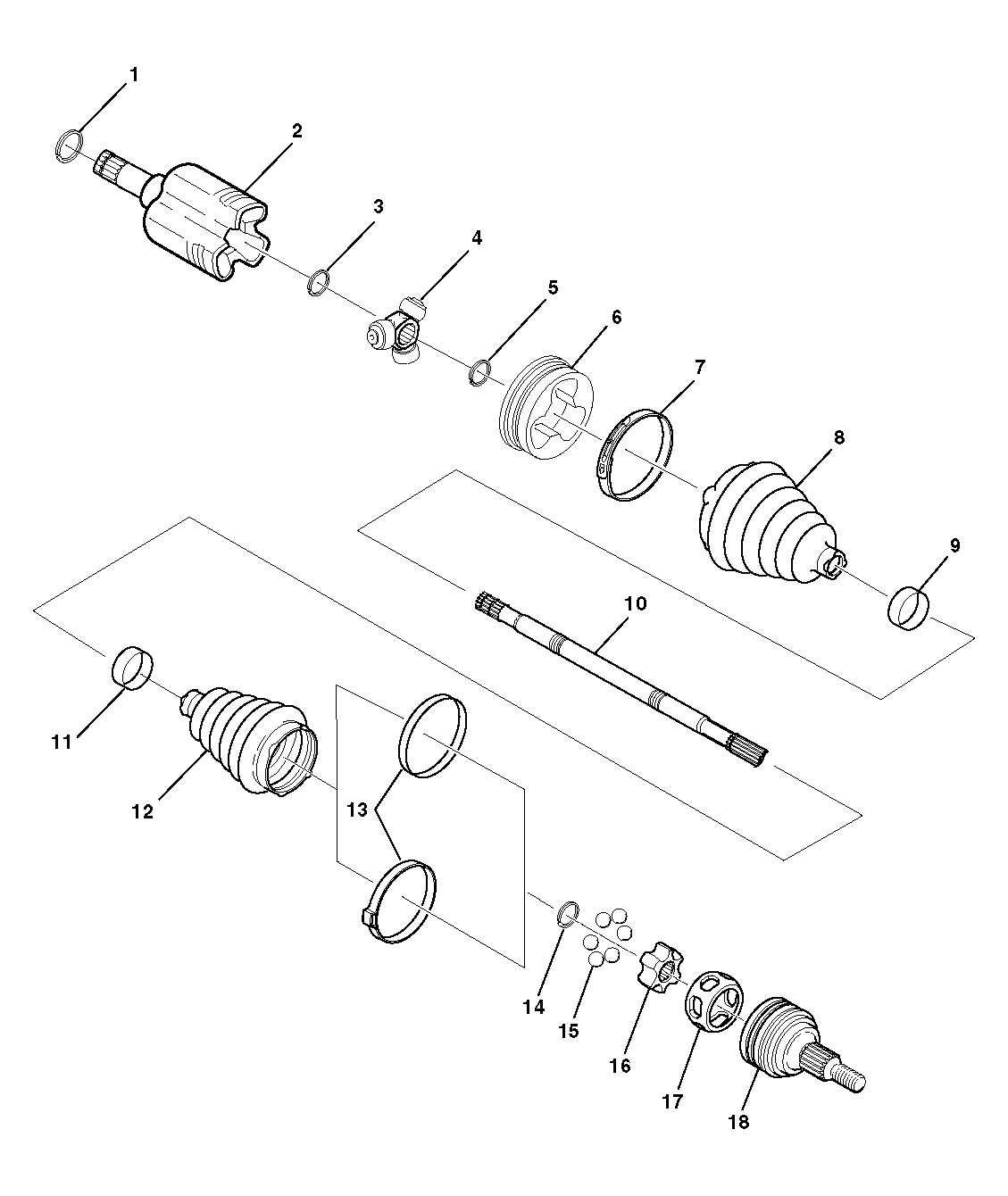

Wheel Drive Shafts Disassembled Views
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2004 Oldsmobile Bravada, 2004 GMC Envoy XUV, 2004 GMC Envoy XL, 2004 GMC Envoy, and 2004 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
| Callout | Component Name |
|---|---|
| 1 | Differential Shaft Ring |
| 2 | Tripot Housing Assembly |
| 3 | Spacer Ring |
| 4 | Tripot Joint Spider Assembly |
| 5 | Spacer Ring |
| 6 | Tripot Bushing |
| 7 | Boot Retaining Clamp |
| 8 | Tripot Joint Boot |
| 9 | Halfshaft Swage Ring |
| 10 | Halfshaft Bar |
| 11 | Halfshaft Swage Ring |
| 12 | CV Joint Boot |
| 13 | Swage Ring/Clamp |
| 14 | Race Retaining Ring |
| 15 | Ball |
| 16 | CV Joint Inner Race |
| 17 | CV Joint Cage |
| 18 | CV Joint Outer Race |
