Removal Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2004 Oldsmobile Bravada, 2004 GMC Envoy XUV, 2004 GMC Envoy XL, 2004 GMC Envoy, and 2004 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

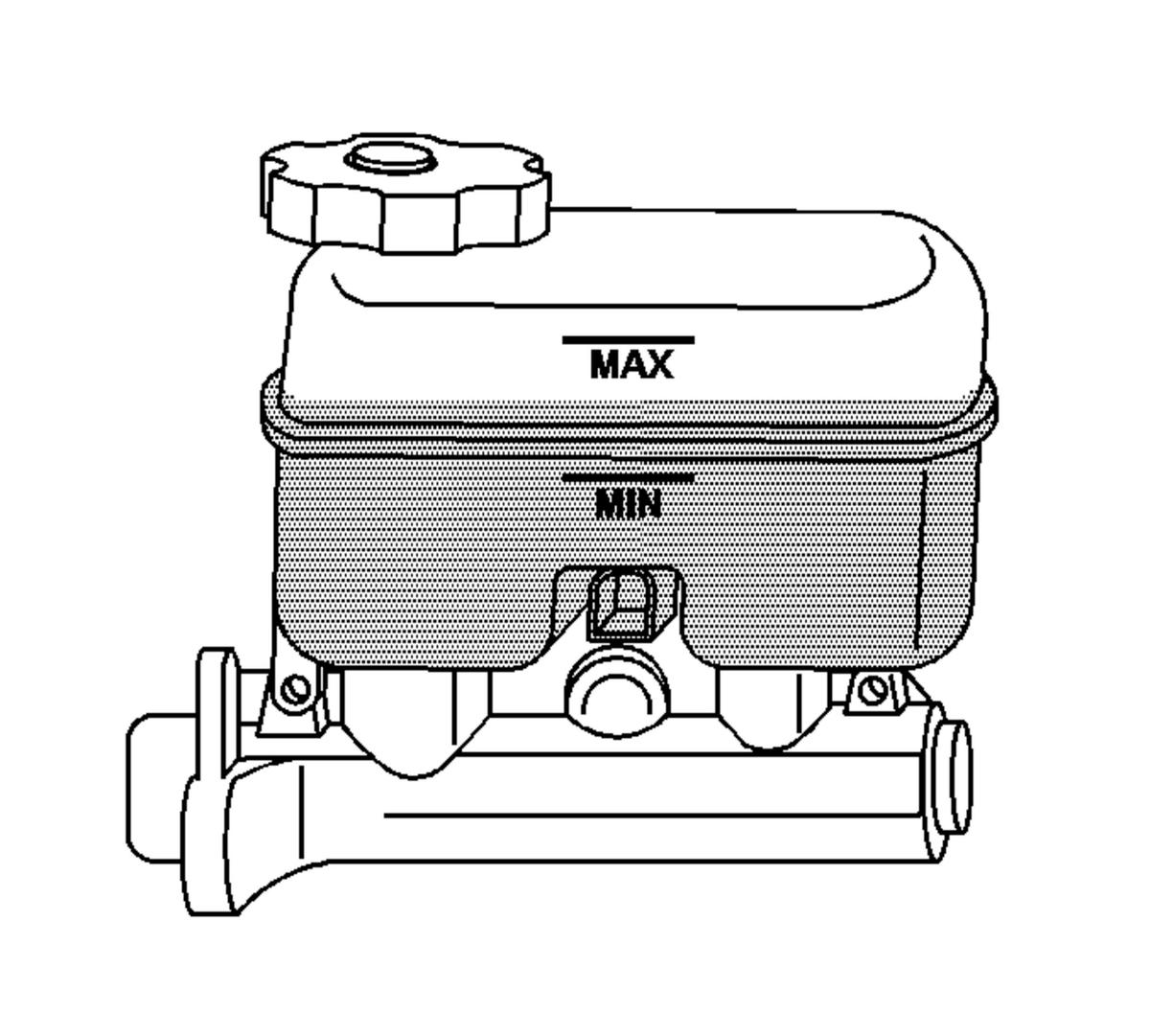

    Fig 1: View Of Half-Full Master Cylinder Reservoir
    GM787456Courtesy of GENERAL MOTORS CORP.
  1. Inspect the brake fluid level in the brake master cylinder reservoir.
  2. If the brake fluid is midway between the maximum-full point and the minimum allowable level, no brake fluid needs to be removed from the reservoir before proceeding.

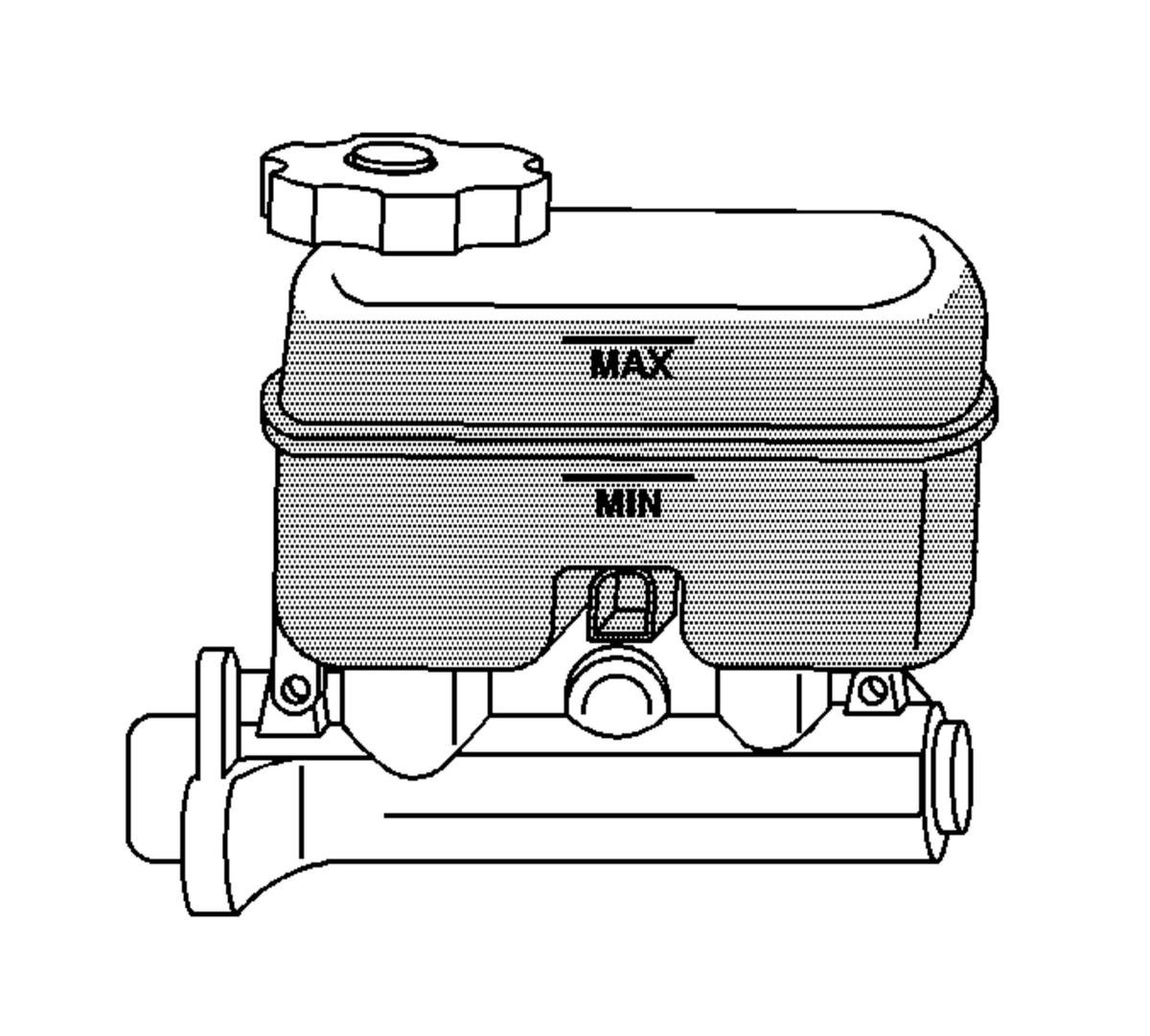

    3. Fig 2: View Of Full Master Cylinder Reservoir MAX And MIN Marks
    GM787455Courtesy of GENERAL MOTORS CORP.
  3. If the brake fluid level is higher than midway between the maximum-full point and the minimum allowable level, remove the brake fluid with appropriate tool to the midway point before proceeding.
  4. Raise the vehicle. Refer to Lifting and Jacking the Vehicle in General Information.
  5. Remove the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation in Tires and Wheels.
    6. Fig 3: Compressing Rear Brake Caliper Piston
    GM127Courtesy of GENERAL MOTORS CORP.
  6. Compress the rear brake caliper piston.
    1. Install a large C-clamp over the top of the brake caliper housing and against the back of the outboard brake pad.
    2. Slowly tighten the C-clamp until the pistons push into the brake caliper enough to slide the brake caliper off the rotor.
    3. Remove the C-clamp from the brake caliper.
  7. Remove the upper brake caliper mounting bolt.
  8. Rotate the rear brake caliper downward until it stops.
    Fig 4: View Of Rear Brake Caliper Rotated Downward
    GM786535Courtesy of GENERAL MOTORS CORP.
    9. Fig 5: Caliper Mounting View
    GM748557Courtesy of GENERAL MOTORS CORP.
  9. Remove the rear brake pads.
    10. Fig 6: View Of Caliper Bracket
    GM748563Courtesy of GENERAL MOTORS CORP.
  10. Remove the brake pad retaining clips from the brake caliper mounting bracket.
    11. Fig 7: View Of Caliper
    GM787920Courtesy of GENERAL MOTORS CORP.
  11. Remove the retaining clip from the brake caliper.
  12. Clean the brake caliper mounting bracket with denatured alcohol.
  13. Using non-lubricated, filtered air, dry the brake caliper mounting bracket.
