Installation Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2004 Oldsmobile Bravada, 2004 GMC Envoy XUV, 2004 GMC Envoy XL, 2004 GMC Envoy, and 2004 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the power steering pump pulley to the end of the power steering pump shaft.
  2. Using the J 25033-C  , install the power steering pump pulley to the power steering pump. See Special Tools and Equipment .
    Fig 1: View Of Power Steering Pump Pulley Installer
    GM643361Courtesy of GENERAL MOTORS CORP.

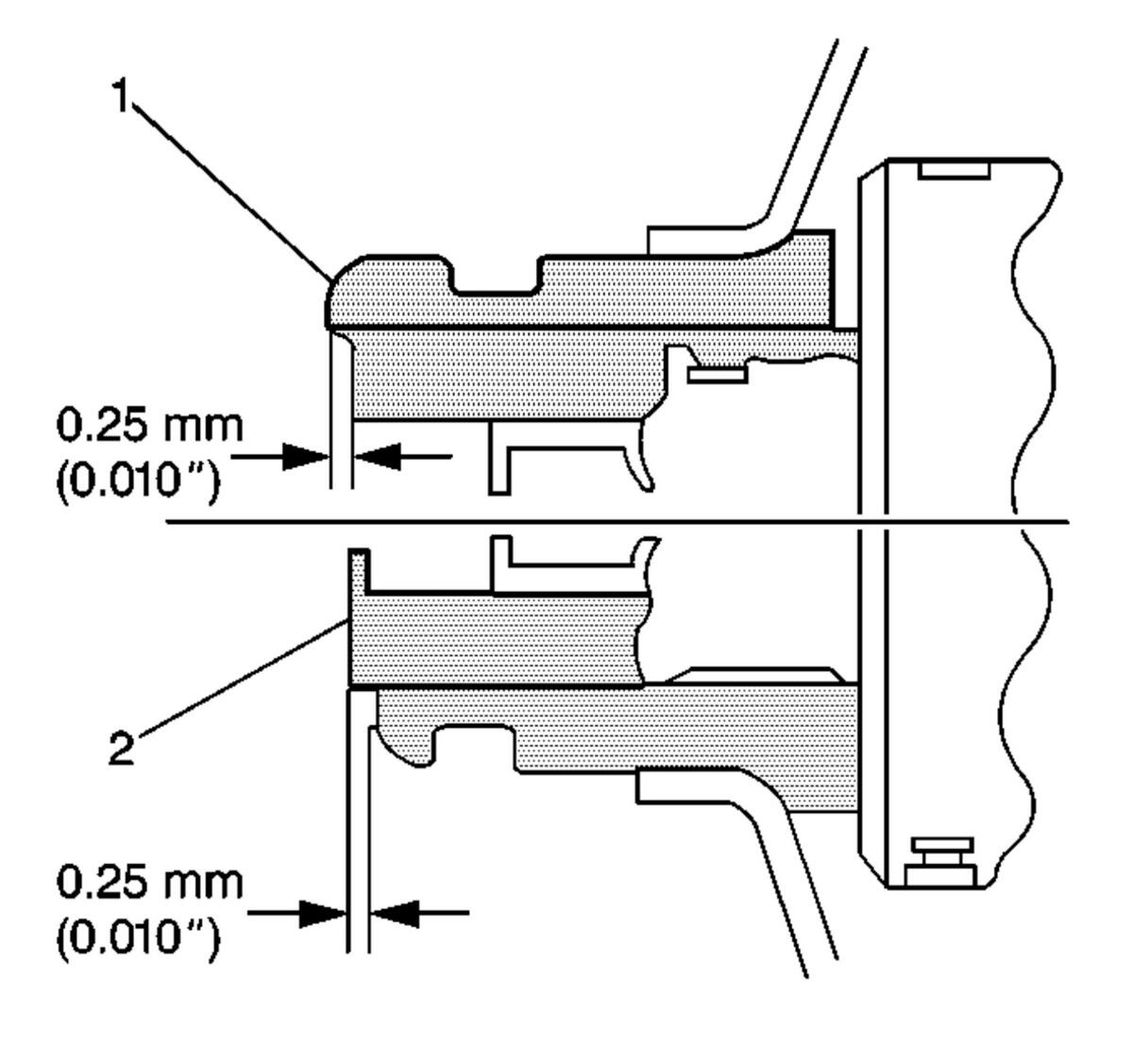

    3. Fig 2: Checking Power Steering Pump Pulley Installed Depth
    GM245012Courtesy of GENERAL MOTORS CORP.
  3. Install the power steering pump pulley (1) flush against the end of the power steering pump shaft (2), with an allowable variance of 0.25 mm (0.010 in).
  4. Install the power steering pump. Refer to Power Steering Pump Replacement (5.3L)  or Power Steering Pump Replacement (4.2L) .
