Removal Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2004 Oldsmobile Bravada, 2004 GMC Envoy XUV, 2004 GMC Envoy XL, 2004 GMC Envoy, and 2004 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Drain the cooling system. Refer to Draining and Filling Cooling System (LL8)  or Draining and Filling Cooling System (LM4) .
    2. Fig 1: Removing/Installing Radiator Outlet Hose From Radiator
    GM871546Courtesy of GENERAL MOTORS CORP.
  2. Using J 38185  reposition the radiator outlet hose clamp (3).
  3. Remove the radiator outlet hose (2) from the radiator.

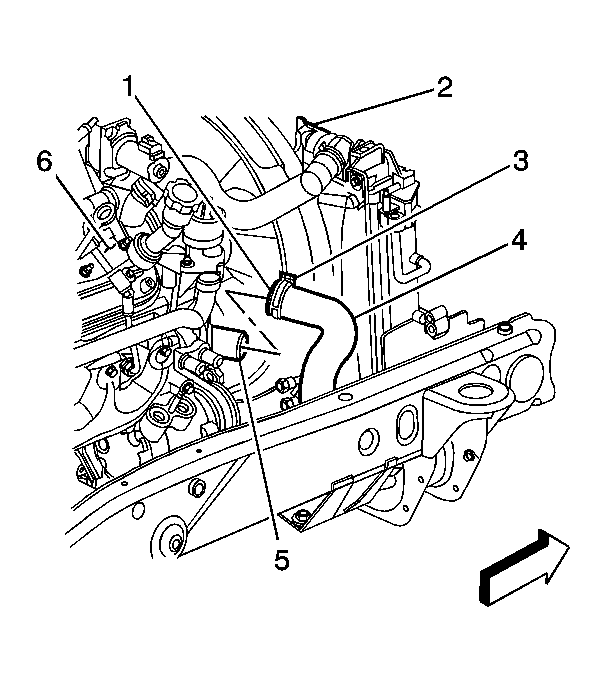

    4. Fig 2: Removing/Installing Radiator Outlet Hose From Engine
    GM871547Courtesy of GENERAL MOTORS CORP.
  4. Using J 38185  reposition the radiator outlet hose clamp.
  5. Remove the radiator outlet hose from the engine (5).
  6. Remove the radiator outlet hose.
