Removal Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2004 Oldsmobile Bravada, 2004 GMC Envoy XUV, 2004 GMC Envoy XL, 2004 GMC Envoy, and 2004 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Apply the parking brake.
  2. Shift the transmission into neutral.
  3. Raise the vehicle. Refer to Lifting and Jacking the Vehicle in General Information.

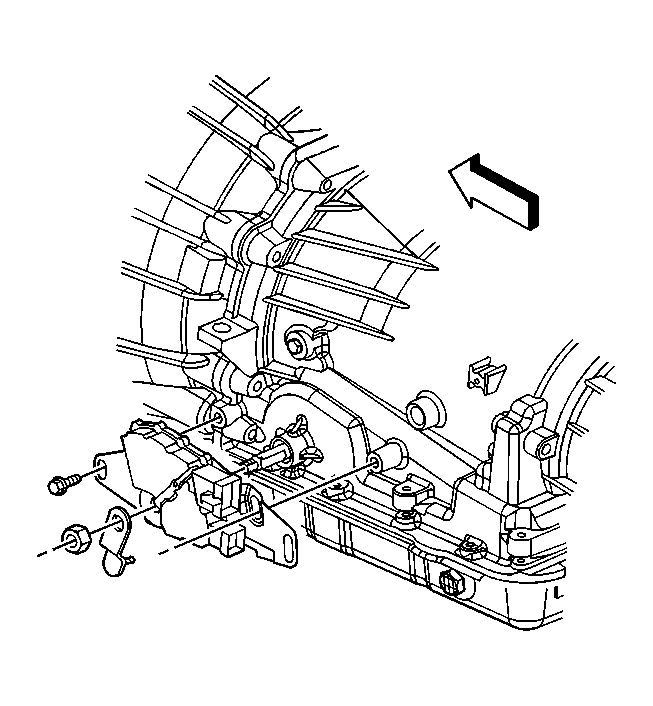

    4. Fig 1: View Of PNP Switch, Lever And Manual Shaft
    GM394471Courtesy of GENERAL MOTORS CORP.
  4. Remove the nut securing the transmission control lever to the manual shaft.
  5. Remove the transmission control lever from the manual shaft.
  6. Disconnect the electrical connectors from the switch.
  7. Remove the bolts securing the park/neutral position switch to the transmission.
  8. Remove the park/neutral position switch from the manual shaft. If the park/neutral position switch did not slide off the manual shaft, file the outer edge of the manual shaft in order to remove any burrs.
