Removal Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2004 Oldsmobile Bravada, 2004 GMC Envoy XUV, 2004 GMC Envoy XL, 2004 GMC Envoy, and 2004 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

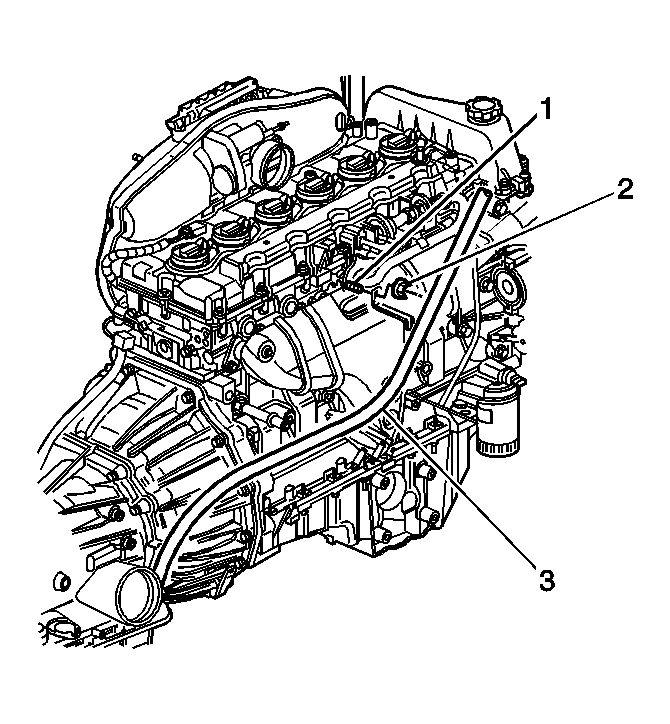

    Fig 1: View Of Filler Tube, Nut & Stud (LL8)
    GM744648Courtesy of GENERAL MOTORS CORP.
  1. Remove the filler tube indicator.
  2. Remove the nut (2) securing the filler tube to the secondary air injection reaction (AIR) stud (1).
    3. Fig 2: View Of Filler Tube & Seal (LL8)
    GM744703Courtesy of GENERAL MOTORS CORP.
  3. Raise the vehicle. Refer to Lifting and Jacking the Vehicle in General Information.
  4. Position a drain pan under the vehicle.
  5. Remove the filler tube (1) and seal (2) from the vehicle.
