Chassis Lubrication
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2004 Oldsmobile Bravada, 2004 GMC Envoy XUV, 2004 GMC Envoy XL, 2004 GMC Envoy, and 2004 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
Lubricate transaxle shift linkage. Lubricate the parking brake guides, underbody contact points and linkage.
| Callout | Component Name |
|---|---|
| 1 | Prop Shaft Slip Joint |
| 2 | Rear Axle Differential |
| 3 | Clutch Actuator |
| 4 | Master Cylinder |
| 5 | Oil Filter |
| 7 | Engine |
| 8 | Transmission |

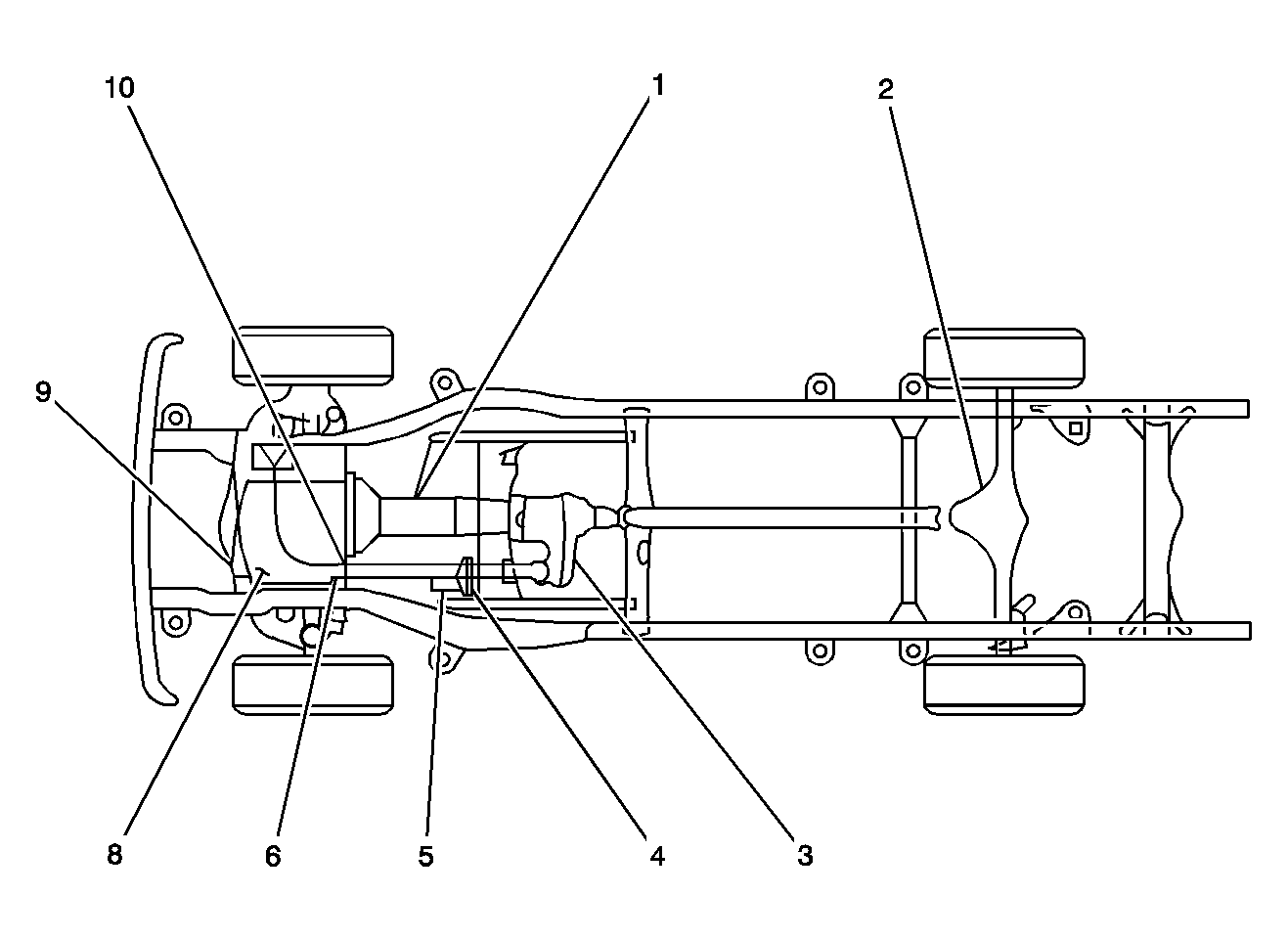

| Callout | Component Name |
|---|---|
| 1 | Transmission |
| 2 | Rear Axle Differential |
| 3 | Transfer Case |
| 4 | Clutch Actuator |
| 5 | Master Cylinder |
| 6 | Engine |
| 8 | Front Axle Differential |
| 9 | Oil Filter |
| 10 | Front Propeller Shaft |
