Installation Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2004 Oldsmobile Bravada, 2004 GMC Envoy XUV, 2004 GMC Envoy XL, 2004 GMC Envoy, and 2004 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

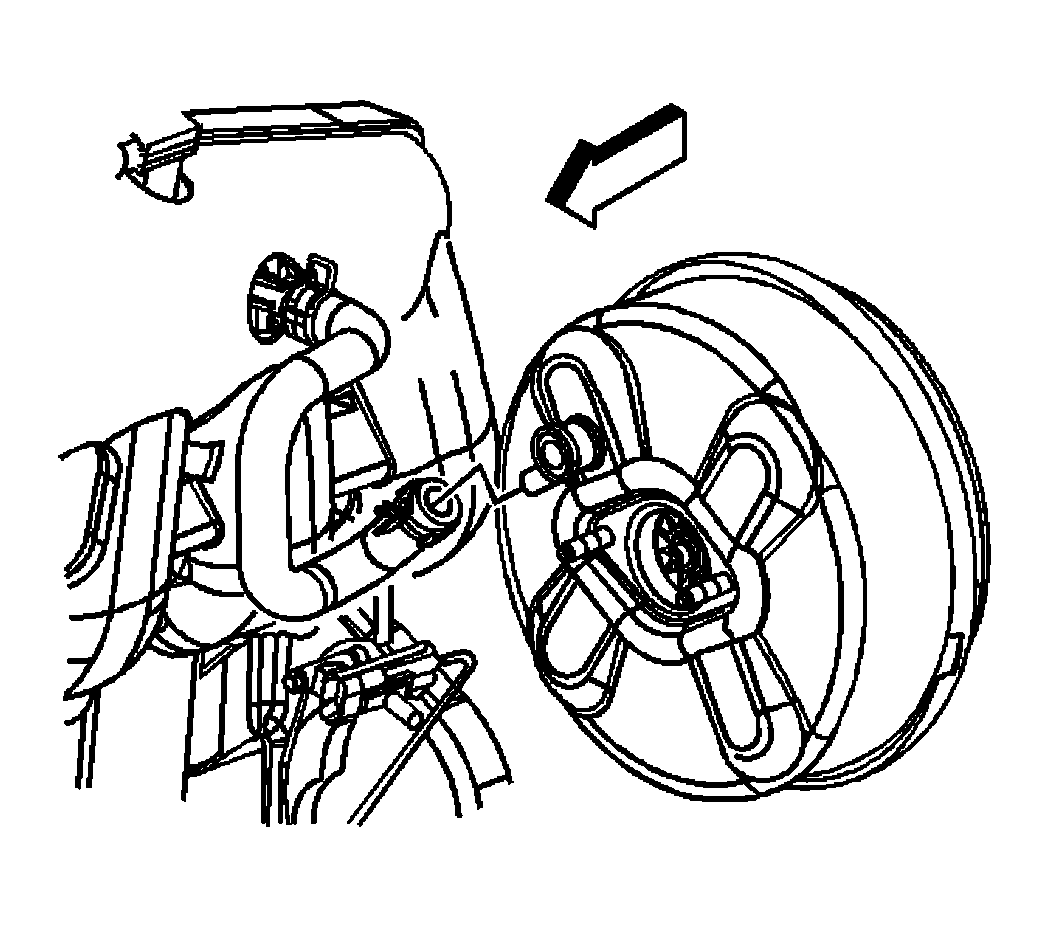

    Fig 1: View Of Vacuum Brake Booster Hose
    GM748024Courtesy of GENERAL MOTORS CORP.
  1. Connect the vacuum brake booster hose at the engine.
  2. Install the vacuum brake booster check valve to the hose.
  3. Install the vacuum brake booster hose clamp to the check valve.
  4. Install the vacuum brake booster check valve to the vacuum brake booster.
