Hydraulic Brakes Component Views

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2004 Oldsmobile Bravada, 2004 GMC Envoy XUV, 2004 GMC Envoy XL, 2004 GMC Envoy, and 2004 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

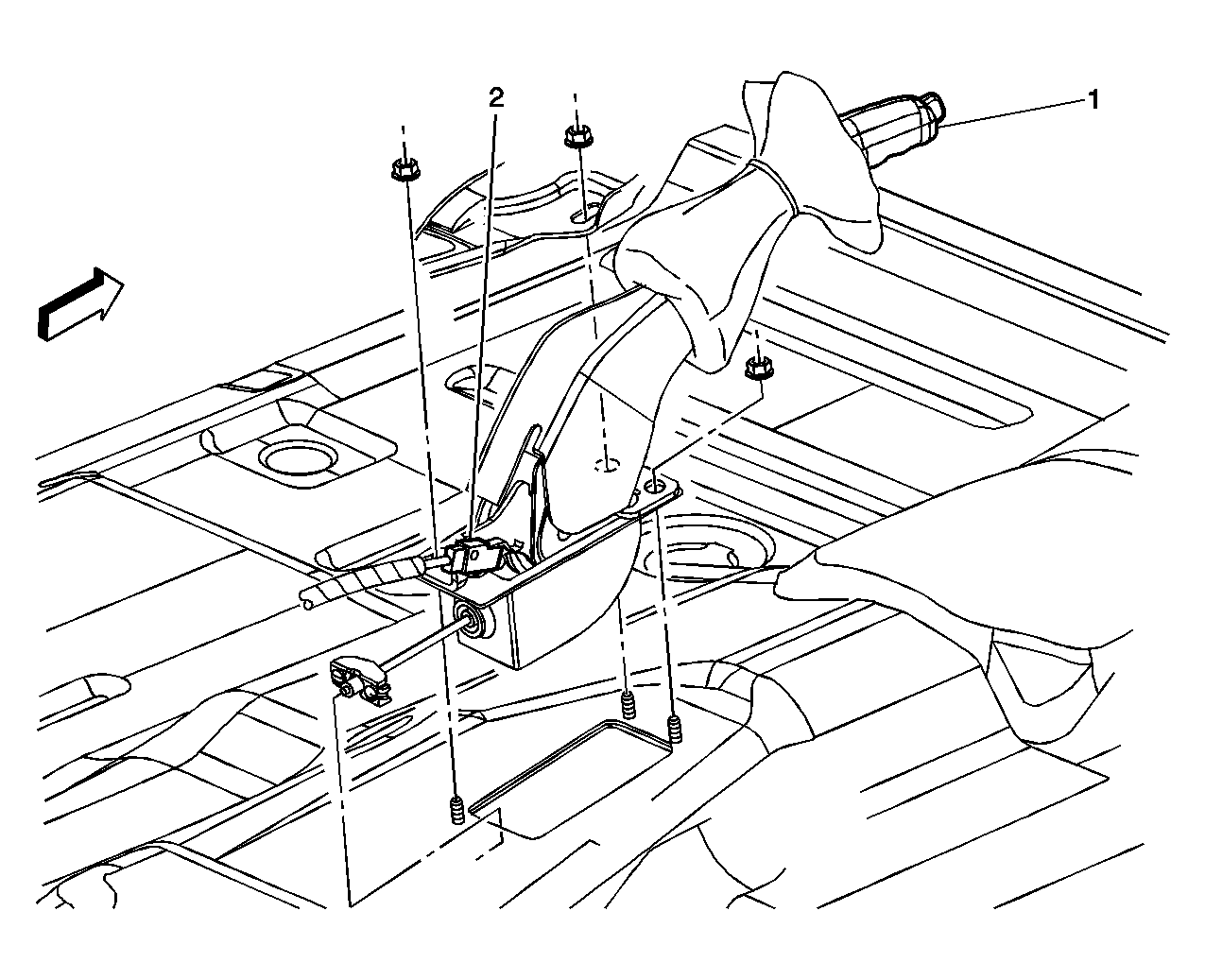

Fig 1: Park Brake Switch

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Park Brake Lever Assembly
2	Park Brake Switch

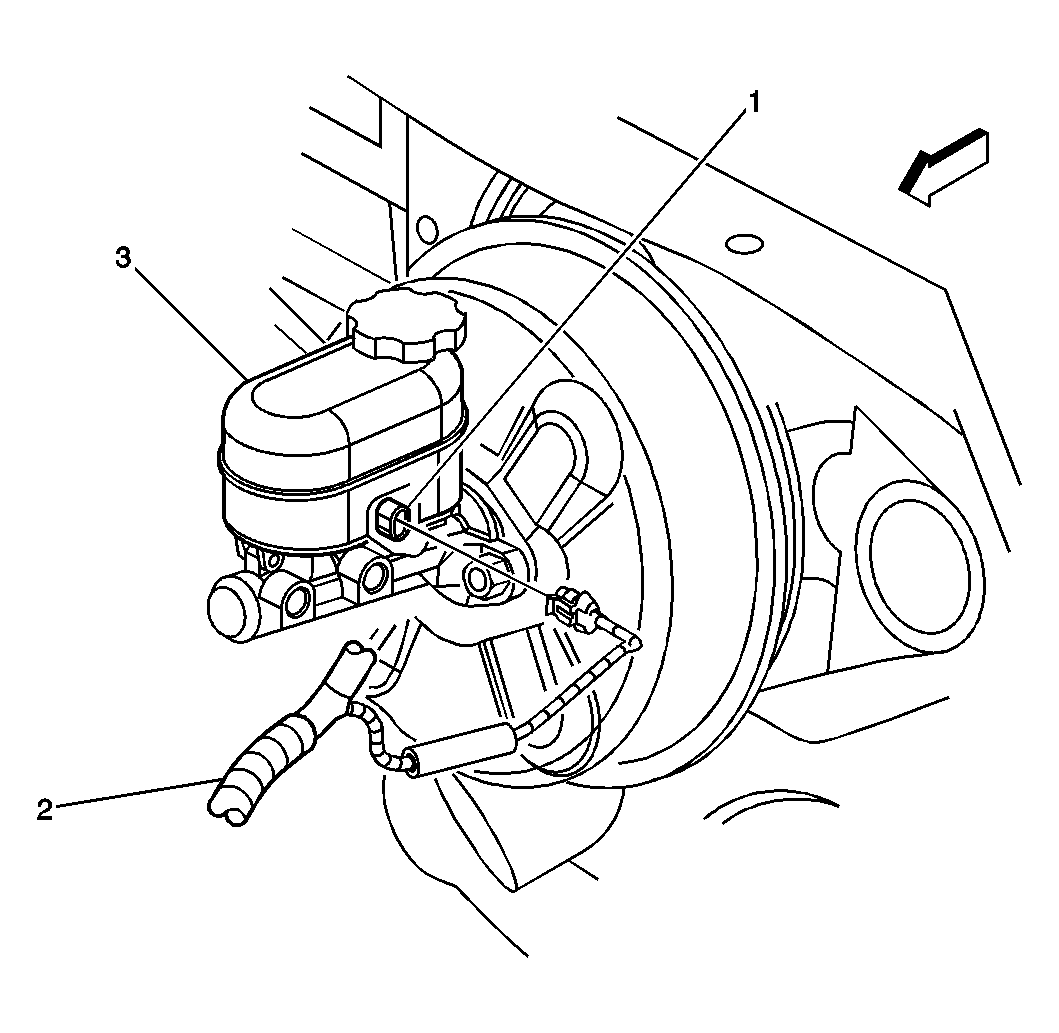

Fig 2: Brake Fluid Level Switch

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Brake Fluid Level Switch
2	Chassis Harness
3	Brake Master Cylinder
