Installation Procedure

WARNING: This page is about a different car, the 2004 GMC Envoy XUV, 2004 GMC Envoy XL, 2004 Chevrolet TrailBlazer, and 2004 Buick Rainier. However, it is still accessible from the selected car via links, so may be relevant.
    Fig 1: View Of Oil Pump & Bolt
    GM64281Courtesy of GENERAL MOTORS CORP.
  1. Align the splined surfaces of the crankshaft sprocket and the oil pump drive gear and install the oil pump.
  2. Install the oil pump onto the crankshaft sprocket until the pump housing contacts the face of the engine block.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  3. Install the oil pump bolts.

    Tighten:  Tighten the bolts to 25 N.m (18 lb ft).

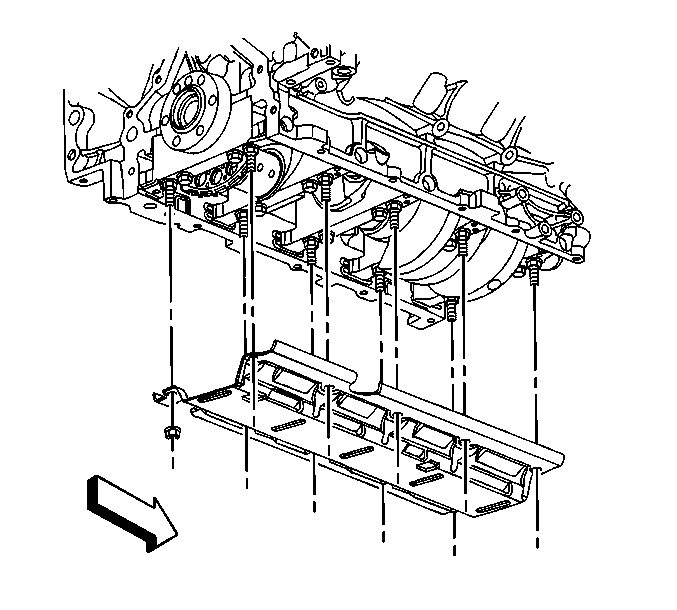

    4. Fig 2: View Of Crankshaft Oil Deflector & Nuts
    GM683798Courtesy of GENERAL MOTORS CORP.
  4. Install the crankshaft oil deflector and nuts until snug.

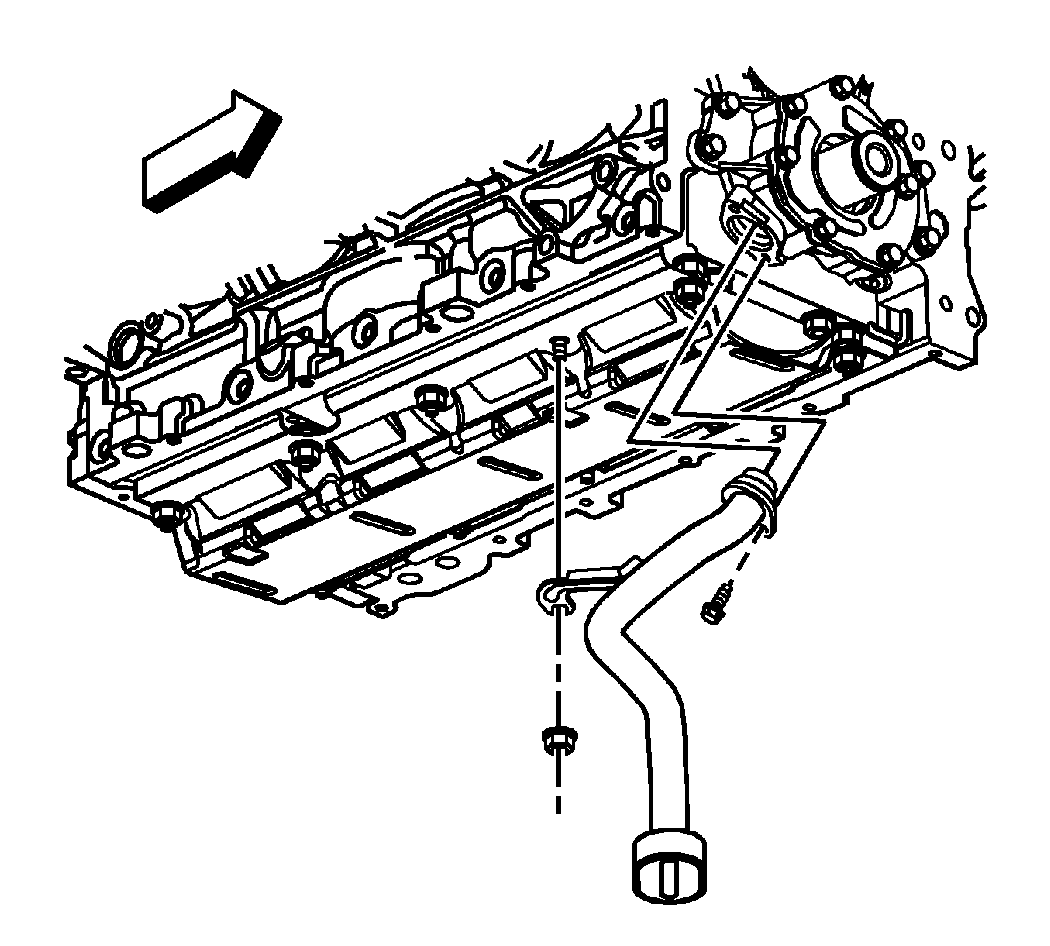

    5. Fig 3: View Of Oil Pump, Screen & Components
    GM898134Courtesy of GENERAL MOTORS CORP.
  5. Lubricate a NEW oil pump screen O-ring seal with clean engine oil.
  6. Install the NEW O-ring seal onto the oil pump screen.
    IMPORTANT: Push the oil pump screen tube completely into the oil pump prior to tightening the bolt. Do not allow the bolt to pull the tube into the pump.

    Align the oil pump screen mounting brackets with the correct crankshaft bearing cap studs.

  7. Install the oil pump screen.
  8. Install the oil pump screen bolt and nuts.

    Tighten:

    1. Tighten the bolt to 12 N.m (106 lb in).
    2. Tighten the nuts to 25 N.m (18 lb ft).

  9. Install the engine front cover. Refer to Engine Front Cover Replacement  .
  10. Install the oil pan. Refer to Oil Pan Replacement  .
