Installation Procedure

WARNING: This page is about a different car, the 2004 GMC Envoy XUV, 2004 GMC Envoy XL, 2004 Chevrolet TrailBlazer, and 2004 Buick Rainier. However, it is still accessible from the selected car via links, so may be relevant.

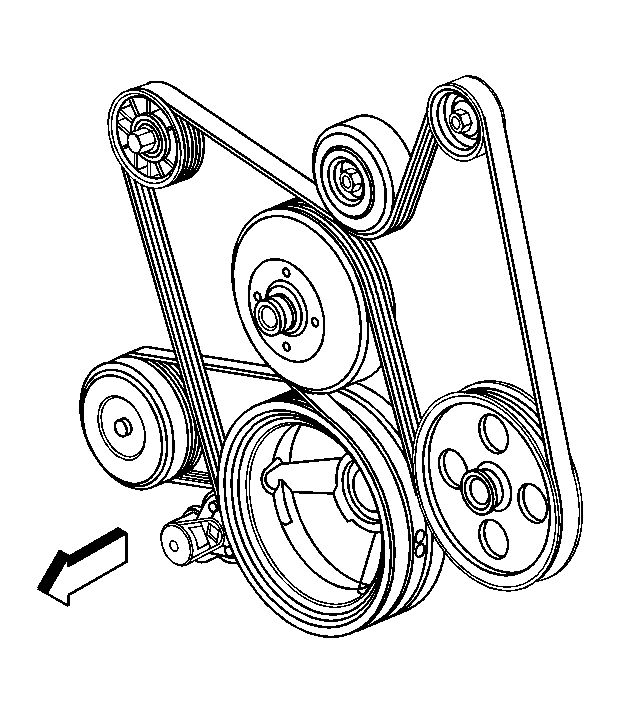

    Fig 1: View Of Accessory Drive Belt Routing & Pulley
    GM898124Courtesy of GENERAL MOTORS CORP.
  1. Route the drive belt around all the pulleys except the generator pulley.
  2. Install the breaker bar with hex-head socket to the belt tensioner bolt.
  3. Rotate the belt tensioner clockwise in order to relieve the tension on the belt.
  4. Install the drive belt on the generator pulley.
  5. Slowly release the tension on the belt tensioner.
  6. Remove the breaker bar and socket from the belt tensioner bolt.
  7. Inspect the drive belt for proper installation and alignment.
  8. Install the air cleaner outlet duct. Refer to Air Cleaner Resonator Outlet Duct Replacement in Engine Controls.
